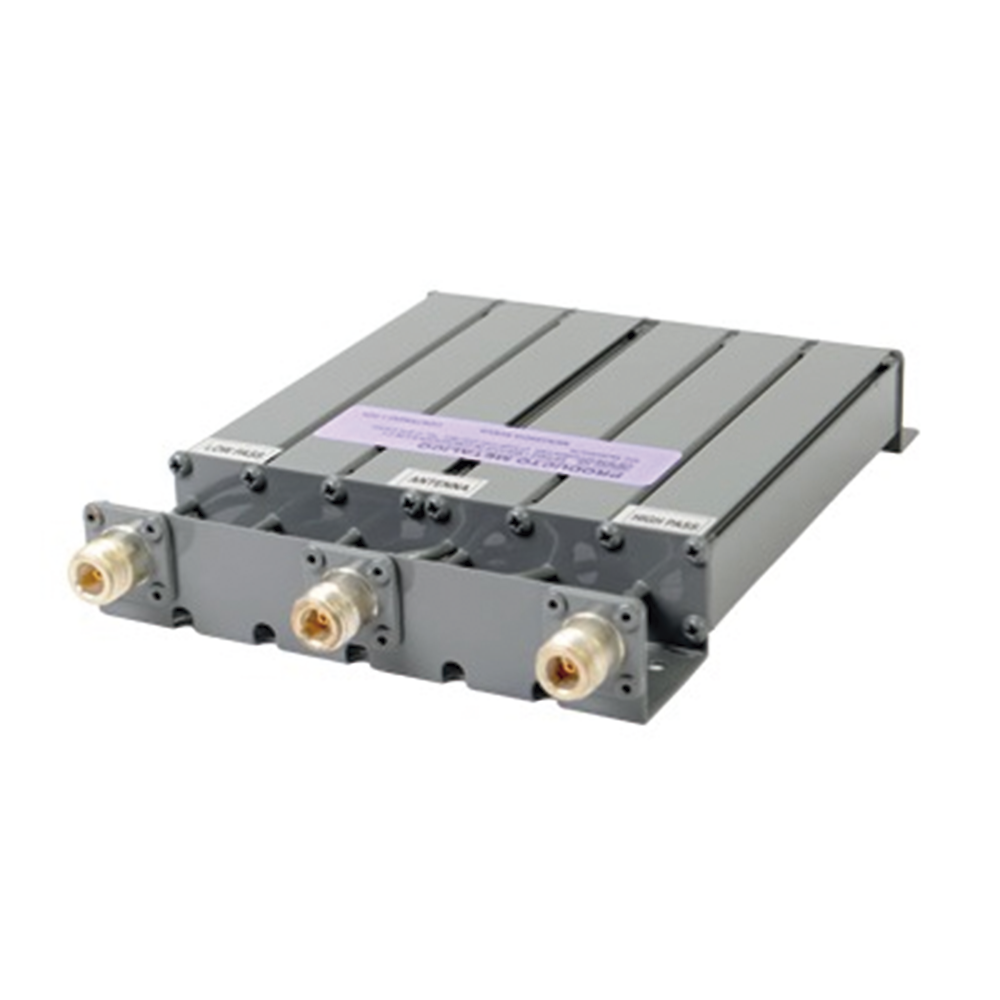

Epcom SYS-4533-2PNV2 UHF Band Reject Duplexer 440-470 MHz 50W N Female

Band Reject UHF Duplexer for 440-470 MHz, Version 2.

• Frequency Band: 440-470 MHz
• Frequency Spacing: 5 to 8 MHz.
• Continuos Power Input (Maximun): 50 Watt.
• Impedance: 50 Ohm.
• Insertion loss (TX-Ant): 1.2 dB max.
• Insertion loss (Ant-RX): 1.2 dB max.
• TX-RX Isolation: 80 dB typical.
• VSWR, max. (50 Ohms): 1.3:1
• Connectors: N Female (BNC Optional).
• Temperature Range: 14 to 140ºF (-10 to 60º C).
• Dimensions: 1.25" x 6.18" x 9.0" (31.8 X 157 X 228 mm)
• Weight: 3.5 lb (1.7 kg).

Product Description

• SYS-4533-xPN series Mobile Duplexer uses six capacitively tuned TEM resonators in a compact
• extruded 6063-T5 aluminum templated housing, use solid shield copper jacketed Teflon intercabling for low loss and the entire unit is electrostatically painted for additional protection..
• Wide use in "Full Duplex" systems with radio mobiles and repeaters (50 W. máx).
• Minimum Frequency shift by temperature changes.
• The use of this device with a less separation than 5 MHz between frequencies may cause operation problems to the repeater system.
• This device will not help you solve sensitivity problems in high RF locations.
• In order to interconnect the duplexer with the repeater, you must determine the lowest and highest frequencies, it does not matter which one is Tx or Rx.

Manufacturing "Jumpers".

• We manufacture any type of cables to any connector, any length and any quantity.
• Specialized machines and experienced staff, enable us to make their "Jumpers" of coaxial cable in a professional manner, with a great performance, quality and reliability at a reduced price.
• We only use cables and connectors of the highest quality.

Let us quote you. ¡Call us!

Key Features

• 80 dB Channel Isolation Between TX and RX Signals
• Low Insertion Loss of Only 1.2 dB Maximum
• 50 Watts Continuous Power Handling Capability
• Silver-Plated Copper Resonators for UHF Performance
• Standard N Female Connectors for Professional Installations
• Extruded Aluminum 6063-T5 Shielded Cavity Construction
