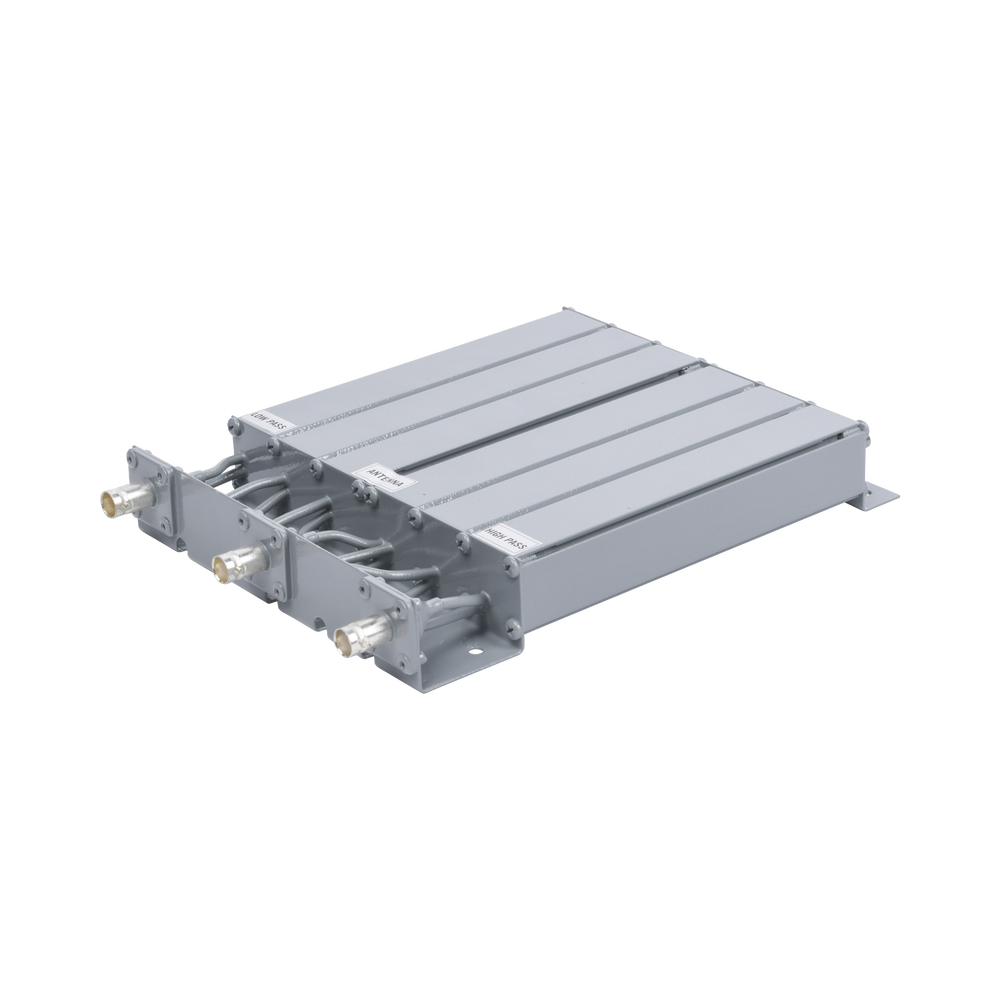

Epcom SYS-4533-4P UHF Band Reject Duplexer 490-520 MHz 50W BNC

Band Reject UHF Duplexer for 490-520 MHz.

• Frequency Band: 490-520 MHz
• Frequency Spacing: 5 to 8 MHz.
• Continuous Power Input (Maximum): 50 Watt.
• Impedance: 50 Ohm.
• Insertion loss (TX-Ant): 1.2 dB max.
• Insertion loss (Ant-RX): 1.2 dB max.
• TX-RX Isolation: 80 dB typical.
• VSWR, max. (50 Ohms): 1.3:1
• Connectors: BNC (N Optional).
• Temperature Range: 14 to 140 ºF (-10 to 60 ºC).
• Dimensions: 1.25 x 6.18 x 9.0" (31.8 x 157 x 228 mm).
• Weight: 3.5 lb (1.7 kg).

Product Description

• SYS-4533-XP series Mobile Duplexer uses six capacitively tuned TEM resonators in a compact
• extruded 6063-T5 aluminum templated housing, uses solid shield copper jacketed Teflon inter-cabling for low loss, and the entire unit is electrostatically painted for additional protection.
• Wide use in "Full Duplex" systems with radio mobiles and repeaters (50 W. máx).
• Minimum Frequency shift by temperature changes.
• Using this device with less separation than 5 MHz between frequencies may cause operational problems for the repeater system.
• This device will not help you solve sensitivity problems in high RF locations.
• To interconnect the duplexer with the repeater, you must determine the lowest and highest frequencies; it does not matter which one is Tx or Rx.

Manufacturing "Jumpers."

• We manufacture any type of cable to any connector, any length, and any quantity.
• Specialized machines and experienced staff enable us to make their "Jumpers" of coaxial cable professionally, with great performance, quality, and reliability at a reduced price.
• We only use cables and connectors of the highest quality.

Let us quote you. ¡Call us!

Key Features

• Six Cavity UHF Design for Superior Signal Isolation
• 80 dB Band Rejection for Maximum Transmit/Receive Isolation
• Low 1.2 dB Insertion Loss for Minimal Signal Degradation
• 50 Watt Maximum Continuous Power Handling Capability
• Silver-Plated Copper Resonators for Enhanced RF Performance
• BNC Female Connectors With Optional N-Type Configuration
