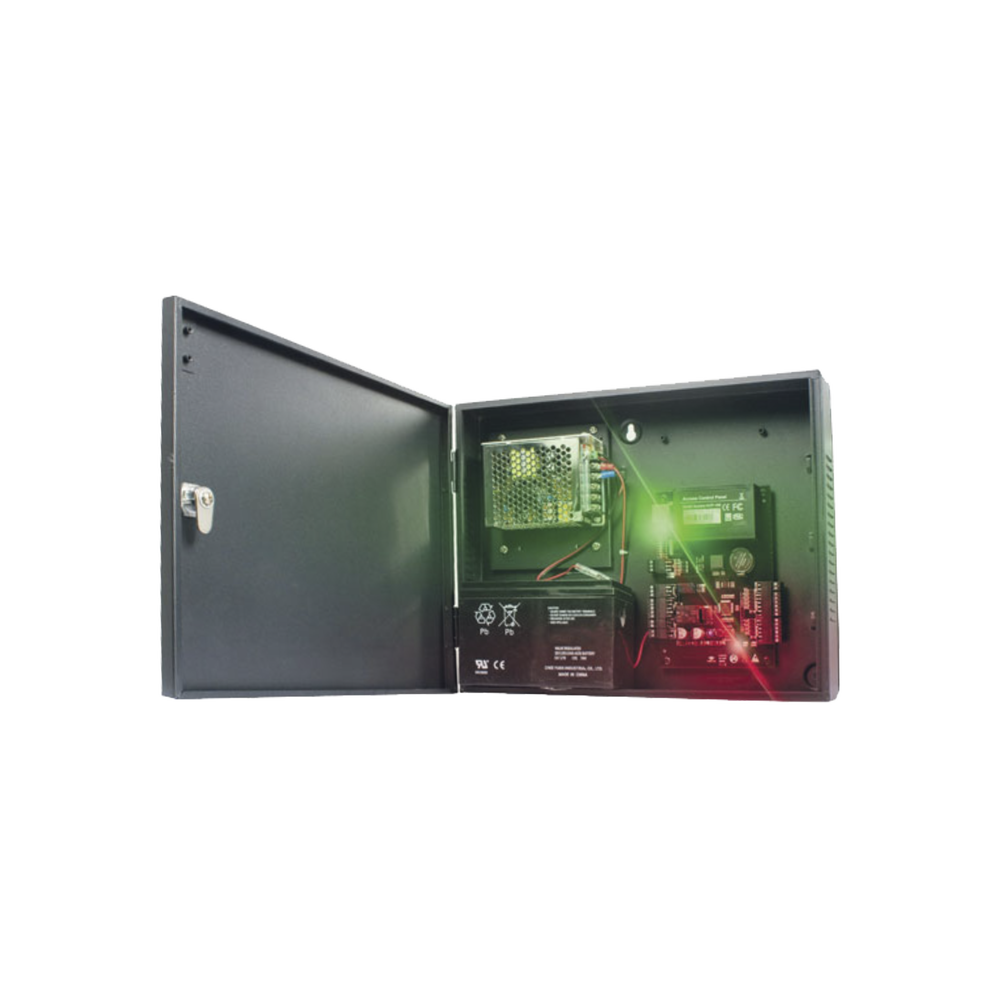

Zkteco SYSCA-4R-4D 4-Door Access Control Terminal 30000 Cards 100000 Events

Features
- Access control

Capacity
- Cards: 30,000
- Passwords: 30,000
- Events: 100,000
(Event memory expandable with SD Memory up to 32GB)

Communication
- TCP / IP and RS485
- Input: multi-format Wiegand

Hardware
- Metal cabinet
- Includes 12VDC / 3A power (Battery not included).

Access Control Functions
- Access control by schedules and doors
- Combinables verification methods:
• Card + Password (with reader model SYSKR602EKB)
- Multi-user verification
- Interlock
- Anti-passback
- Energized relay function

Connections
- 4 relay output NC / NO / COM for board
- 4 Auxiliary relay output NC / NO / COM
- 4 Auxiliary output
- Exit button and magnetic sensor

Power
- 12VDC / 100mA
- Includes 12VDC / 3A power

Compatible Readers
- Proximity:
• SYSKR600E and SYSKR601E
• Supports 2 readers per door

- Proximity with the keyboard:
• SYSKR602EKB
• Supports 2 readers per door

- Long Range Readers:
• PRO6RF and PRO12RF
• Supports 2 readers per door


Additional Information
- Operating Temperature: 0-55 ° C
- Dimensions: 380 x 290 x 80 mm
- Includes Management Software (in Spanish)




Configurations

Key Features

• Expandable Memory up to 32GB With SD Card Support
• 100,000 Event Log Capacity for Comprehensive Auditing
• Combined Verification Methods: Card Plus Password
• Multi-Format Wiegand Input for Reader Compatibility
• 4 NC/NO/COM Relay Outputs for Electric Strikes
• Time Zone and Door Access Control Scheduling
