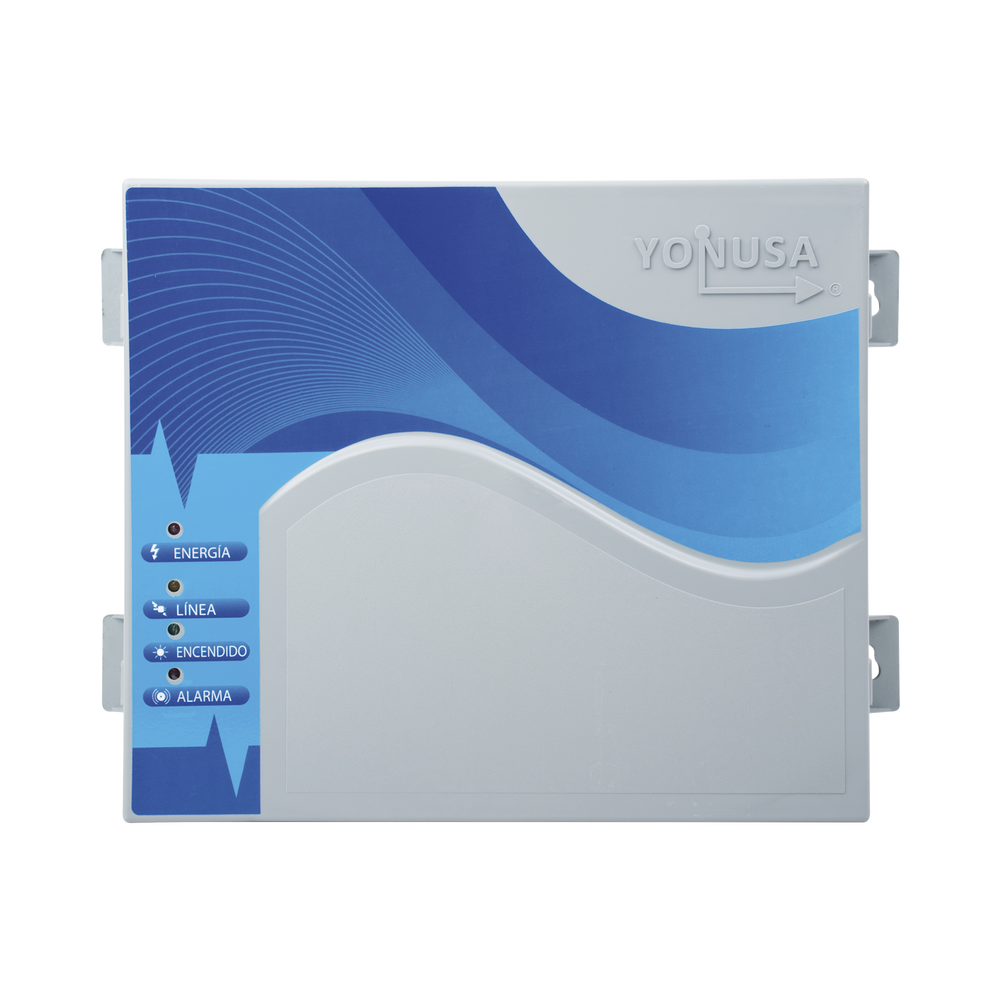

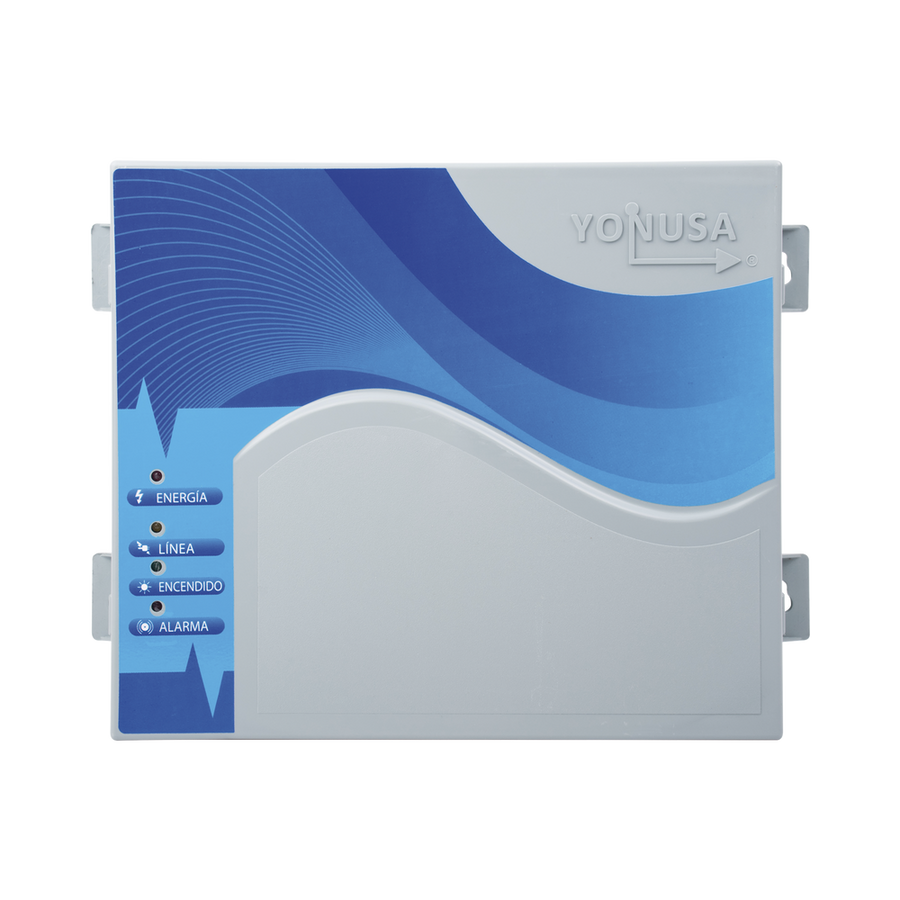

Yonusa SYSNG/250V2 12000V Electric Fence Energizer 0.9J 250m

The best and most profitable perimeter protection system to protect houses, condos, businesses, buildings and cattle ranches. Deterrent system through High Voltage signs and repulsive generating a discharge of more than 12,000 Volts without damaging the intruder. EhubAmerica® offers a new generation product reliable, efficient and easy to install.

Functionality
-Built-in charger and internal space for a battery of 4 A/h 12 Vdc, which will be a 3 day backup of continuous work.
-Option to supply power through a solar panel.
-Intrusion detection via:
*Voltage attenuation
*Line cut.
-Frontal luminous panel allows knowing easily the operation status of the equipment.
-Excellent stability for rain and plants (doesn't generate false alarms).
-Security key control; on, off and equipment block.
-Independent operation fences and alarms.
-Operation option even when the fence broken or damaged.
-Input port for remote control. Compatible with universal receive SECOLARM® Mod. SK-910R4 (Not included).
-Designed for heavy duty, which allows a continuous operation.
-Capacity operates sirens to 12 Vdc, 127 AC and 220 Volts AC.
-Option to integrate the alarm panel.
-Current control patented system which avoids damage to the intruder.

Features
-Power supply: 127 Vac.
-Auxiliar output (1.5 A, 12 V) for siren power supply.
-High voltage output autoprogrammable to the fence (doesn't require manual adjustment).
-Output power: .9 Joule.
- Siren warning in case of equipment failure and auto siren reset in case of momentary ground fall.
-Operating range 23 ºF (-5ºC) up to 122ºF (50ºC).
-Solid state electronics military grade.
-Backup battery charger up to 80 Ah.
-Output for automation dry contact.
-Maximum humidity factor: 72%.
-Maximum vibration factor: 12 Hz/cm.
-Immune to RF.
-Oscillation frequency: 1 Hz.
-Control circuit represents the intruder security without attenuating rejection force.

*Dimensions: 14.1" x 10.0" x 4.3" (36 x 25.5 x 11 cm).
*High impact polystyrene.
-Flame retardant (according to the B0 norm).
*Weight 7.5 lbs (3.4 kg). Approx.
*Protection against ultraviolet rays.
*Antioxidant protection.

Technical specifications:
-Consumption: 0.1 Amp, 1.6 w/h.
-Output tensions: 12,000 V +/-8%.
-Pulse force: 1 Joule +/-.5%
-Battery backup: 3 days, 30 days with external battery.
-Consumption: 2.0 W in standby, 2.6 W in alarm + siren consumption.
-Wire alarm range: 3,500 line meters.
-Approximate electric energy consumption: $0.20 USD monthly =1.2 kw/Month.

NOTE: we recommend using galvanized AWG size 16 wire.

Key Features

• SMT Technology for Enhanced Reliability and Performance
• Ground Fault and Line Cut Detection With Alarm Integration
• Dual Power Input: 120-220V AC or 12V DC Solar Panel
• Built-in Battery Compartment for 4Ah 12V Backup (3 Days)
• Operates Two 12V Sirens at 120 dB for Audible Alert
• Weatherproof NEMA 2 Enclosure With UV and Corrosion Protection
