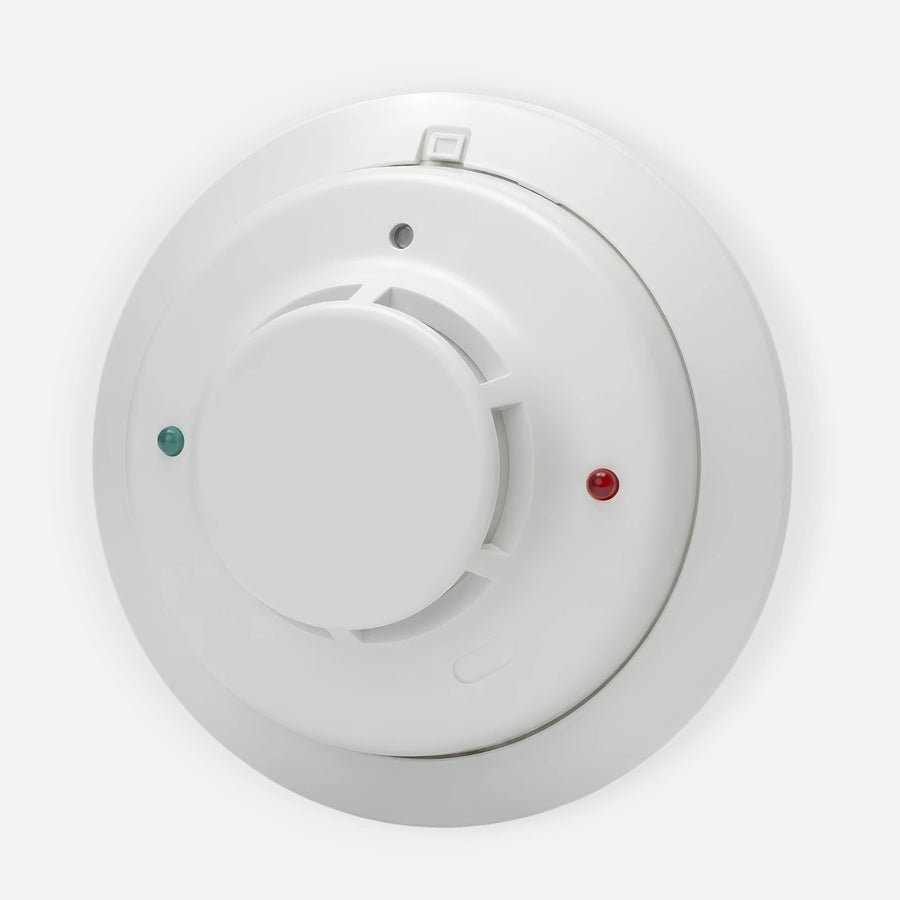

System Sensor 2W-B i3 Series Two-Wire Conventional Photoelectric Smoke Detector with Base

Part number / SKU
2W-B
  • Photoelectric smoke detector
  • Photoelectric
  • Conventional, two-wire
  • Plug-in base
  • 12/24 V non-polarized nominal

Works with: 2W-MOD2 two-wire loop test/maintenance module, SENS-RDR sensitivity reader, A77-AB2 retrofit adapter bracket, Notifier SFP-2402 / SFP-2404 (remote maintenance signal), Notifier SFP-5UD / SFP-10UD (remote maintenance signal), Notifier RP-2001 / RP-2002 (remote maintenance signal) and 1 more model Confirmed by the manufacturer


$65.29

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The System Sensor 2W-B is a two-wire conventional photoelectric smoke detector from the i3 Series. It is a plug-in detector with the mounting base included, and it uses drift compensation and smoothing algorithms to hold a nominal sensitivity of 2.5%/ft obscuration.

It runs on 12/24 V non-polarized nominal power (8.5 V minimum, 35 V maximum), with 50 uA maximum average standby current and up to 130 mA alarm current limited by the control panel. Input terminals take 14 to 22 AWG wire through a large wire entry port. The detector measures 5.3 in in diameter and 2.0 in high including the base, weighs 6.3 oz and is rated for 32 to 120 F and 0 to 95% RH, non-condensing.

Dual color LEDs show power up, normal standby, out of sensitivity and alarm states. With the 2W-MOD2 module or a panel that supports it, the detector sends a remote maintenance signal and supports EZ Walk loop testing, and the SENS-RDR reader displays sensitivity. The base mounts to 3 1/2 in and 4 in octagon boxes, single gang boxes, 4 in square boxes with a plaster ring, or directly to the ceiling.

  • Best for: two-wire conventional initiating circuits that need a photoelectric smoke detector with maintenance signaling.
  • System fit: two-wire conventional panels; 2W-MOD2 loop test/maintenance module; remote maintenance signaling with Notifier SFP-2402/-2404, SFP-5UD/10UD, RP-2001/2002.
  • Important to know: installation and testing by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Stable sensitivity

    drift compensation and smoothing algorithms at 2.5%/ft nominal.

  • Built-in maintenance signal

    reports when the detector is out of sensitivity.

  • EZ Walk loop testing

    with the 2W-MOD2 module or a supporting panel.

  • Plug-in base included

    pre-wire the base and plug in the head.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU2W-B
General
Brand System Sensor
Series i3 Series
Model 2W-B
Device Type Photoelectric smoke detector
Device Type Detail With plug-in base
Detection Type Photoelectric
Addressing Conventional, two-wire
Mount Type Plug-in base
Mount Type Detail Ceiling or box mount
Sensitivity 2.5%/ft (0.762%/m) nominal
LED Indicators Dual color green and red; power up, standby, out of sensitivity, alarm
Electrical
Operating Voltage 12/24 V non-polarized nominal
Operating Voltage Detail 8.5 V min, 35 V max
Maximum Ripple 30% peak to peak of applied voltage
Standby Current 50 uA max average; 100 uA peak
Alarm Current 130 mA max, limited by control panel
Wire Gauge 14 to 22 AWG
Physical
Dimensions 5.3 in diameter x 2.0 in high including base
Weight 6.3 oz (178 g)
Back Box 3 1/2 in and 4 in octagon, single gang, 4 in square with plaster ring, or direct to ceiling
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Humidity 0 to 95% RH, non-condensing
Listings and Approvals
Agency Approvals UL/ULC S911; FM approved; CSFM 7272-1653:152; MEA 290-01-E; Maryland State Fire Marshal permit 2093
Standards UL 268
