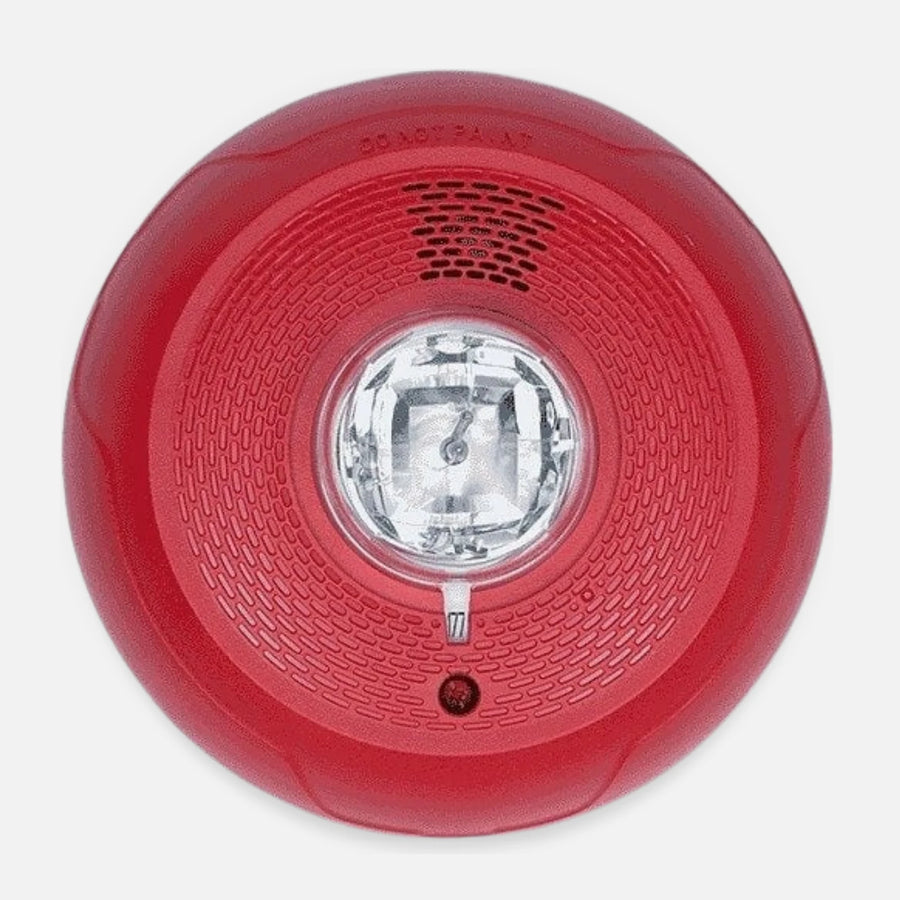

System Sensor CHSCRL L-Series Ceiling Chime Strobe, Red, Private Mode

Part number / SKU
CHSCRL
  • Chime strobe, private mode
  • Ceiling
  • 8 to 17.5 V or 16 to 33 V
  • UL, ULC, FM, CSFM

Works with: SBBCRL red ceiling surface back box, Sync Circuit Module, Legacy SpectrAlert devices (electrically compatible) Confirmed by the manufacturer


$92.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The System Sensor CHSCRL is a red, ceiling mount chime strobe from the L-Series. It is a private mode notification appliance used to alert trained personnel to investigate a possible emergency and act on it, combining a selectable chime with a selectable candela strobe.

A rotary switch selects the tone and volume: 1 Second Chime, 1/4 Second Chime, Temporal Chime or 5 Second Whoop, each at high or low volume. Ceiling candela settings are 15, 30, 75, 95, 115, 150 and 177 cd, and the strobe flashes once per second. It runs on 8 to 17.5 V (12 V nominal) at the 15 and 30 cd settings, selecting 12 or 24 V automatically, or on 16 to 33 V (24 V nominal) at all settings.

The unit measures 6.8 in in diameter and 2.47 in deep including lens, and terminals accept 12 to 18 AWG wire. It has a plug-in design, a mounting plate shorting spring for continuity checks, a captive mounting screw and the SBBCRL ceiling surface back box option.

  • Best for: private mode alerting at security guard and nurse workstations.
  • System fit: 12 V or 24 V notification circuits; Sync Circuit Module for strobe and chime sync; electrically compatible with legacy SpectrAlert devices.
  • Important to know: installation by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Private mode chime

    four chime and whoop tones at high or low volume for staff alerting.

  • Selectable candela

    seven ceiling settings from 15 to 177 cd.

  • Automatic 12 or 24 V

    selects operating voltage at the 15 and 30 cd settings.

  • Synchronized output

    the Sync Circuit Module syncs strobes at 1 Hz and all chime tones.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUCHSCRL
General
Brand System Sensor
Series L-Series
Model CHSCRL
Device Type Chime strobe, private mode
Mount Type Ceiling
Color Red
Chime Tones 1 Second Chime, 1/4 Second Chime, Temporal Chime, 5 Second Whoop; high or low volume
Candela Settings 15, 30, 75, 95, 115, 150, 177 cd
Strobe Flash Rate 1 flash per second
Synchronization Sync Circuit Module (strobes at 1 Hz and chime tones)
Electrical
Operating Voltage 8 to 17.5 V or 16 to 33 V
Operating Voltage Detail 12 V nominal; 24 V nominal
12 V Operation 15 and 30 cd only; 12 or 24 V selected automatically
Operating Voltage with Sync Circuit Module 8.5 to 17.5 V or 16.5 to 33 V
Wire Gauge 12 to 18 AWG input terminals
Physical
Dimensions 6.8 in diameter x 2.47 in deep including lens
Surface Back Box SBBCRL red ceiling surface mount, 6.9 in diameter x 2.5 in deep
Mounting Plug-in design; mounting plate shorting spring; captive mounting screw
Construction Tamper resistant
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Humidity 10 to 93%, non-condensing
Listings and Approvals
Agency Approvals UL, ULC, FM, CSFM
Approval Details UL and ULC S4011; FM 3057383, 3057072; CSFM 7135-1653:0503
Standards UL 1638
