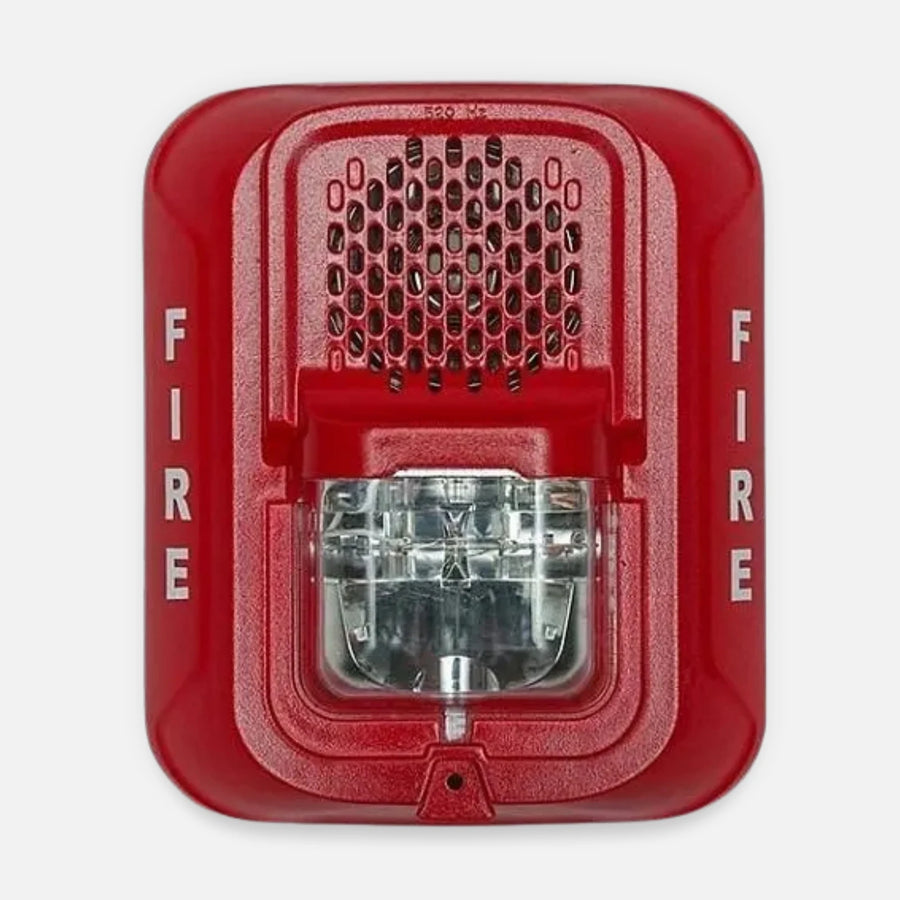

System Sensor P2RL-LF L-Series 520 Hz Low Frequency Wall Sounder Strobe, Red

Part number / SKU
P2RL-LF
  • Low frequency sounder strobe
  • Wall
  • 16 to 33 V, 24 V nominal
  • UL, FM, CSFM

Works with: SBBRL red surface back box (wall), SBBWL white surface back box (wall) Confirmed by the manufacturer


$106.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The System Sensor P2RL-LF is a red, wall mount low frequency sounder strobe from the L-Series. It produces a 520 Hz square wave tone and was designed to address the NFPA 72 sleeping space requirements, combining the low frequency sounder with a selectable candela strobe in one appliance.

It operates from 16 to 33 V (24 V nominal, regulated DC or FWR), with field selectable candela settings of 15, 30, 75, 95, 110, 135 and 185 cd and a flash rate of 1 flash per second. Tones are Temporal 3, Temporal 4 and Continuous at high or low volume, rated 80 dBA high and 76 dBA low. DC current ranges from 98 mA at 15 cd to 305 mA at 185 cd on Continuous high, and terminals accept 12 to 18 AWG wire.

The unit measures 5.6 x 4.7 x 1.9 in including lens and mounts to a 4 x 4 x 1.5 in, 4 in octagon, double gang or single gang 2 x 4 x 1 7/8 in box, or to the SBBRL surface back box.

  • Best for: sleeping spaces where NFPA 72 calls for a 520 Hz low frequency audible signal with a strobe.
  • System fit: 24 V regulated DC or FWR notification appliance circuits; SBBRL/SBBWL surface back boxes.
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for fire alarm systems

  • 520 Hz low frequency tone

    square wave output at 520 Hz plus or minus 10%.

  • Selectable candela

    seven wall settings from 15 to 185 cd.

  • Three tone patterns

    Temporal 3, Temporal 4 and Continuous, each at high or low volume.

  • Listed appliance

    UL S4011, FM PR452768 and CSFM 7125-1653:0517.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUP2RL-LF
General
Brand System Sensor
Series L-Series
Model P2RL-LF
Device Type Low frequency sounder strobe
Mount Type Wall
Color Red
Tone Frequency 520 Hz +/- 10%, square wave
Tone Patterns Temporal 3, Temporal 4, Continuous; high or low volume
Sound Output High Volume 80 dBA (DC and FWR)
Sound Output Low Volume 76 dBA (DC and FWR)
Candela Settings 15, 30, 75, 95, 110, 135, 185 cd
Strobe Flash Rate 1 flash per second
Electrical
Operating Voltage 16 to 33 V, 24 V nominal
Operating Voltage Detail Regulated DC or FWR
Current at 15 cd (DC) 98 to 141 mA by tone and volume
Current at 75 cd (DC) 122 to 198 mA by tone and volume
Current at 185 cd (DC) 237 to 305 mA by tone and volume
Wire Gauge 12 to 18 AWG input terminals
Physical
Dimensions 5.6 x 4.7 x 1.9 in (142 x 119 x 49 mm), L x W x D including lens
Back Box 4 x 4 x 1.5 in, 4 in octagon, double gang, or single gang 2 x 4 x 1 7/8 in box
Surface Back Box SBBRL
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Humidity 10 to 93%, non-condensing
Environment Indoor
Listings and Approvals
Agency Approvals UL, FM, CSFM
Approval Details UL S4011; FM PR452768; CSFM 7125-1653:0517
Standards Designed to address NFPA 72 sleeping space requirements
