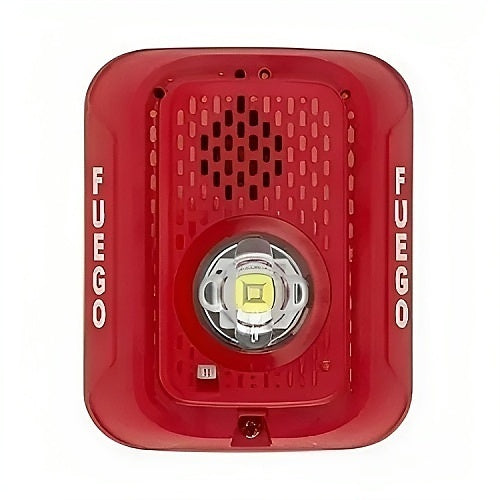

System Sensor P2RLED-SP L-Series LED Two-Wire Wall Horn Strobe, Red, FUEGO Marking
- Part number / SKU
- P2RLED-SP
- Two-wire horn strobe
- Wall, indoor
- Regulated 24 VDC nominal
- UL, ULC, FM, CSFM
Works with: SBBRL red surface back box (wall), SBBWL white surface back box (wall), TR-2 / TR-2W wall trim ring, MDL3 sync module, System Sensor Sync protocol power supplies, SpectrAlert, SpectrAlert Advance and L-Series appliances (electrically compatible) Confirmed by the manufacturer
In stock
Free Economy shipping available at checkout
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Why teams choose it
Built for fire alarm systems
-
Lower current draw
LED strobe uses less current than xenon across the candela range.
-
Field selectable
seven candela settings from 15 to 185 cd plus eight tone and volume settings.
-
Install checks
shorting spring on the mounting plate and DVM test points on the face.
-
Listed appliance
UL and ULC S5512 and S4011, FM 3057072 and CSFM listings.
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| SKU | P2RLED-SP |
| General | |
| Brand | System Sensor |
| Series | L-Series with LED |
| Model | P2RLED-SP |
| Device Type | Two-wire horn strobe |
| Device Type Detail | Selectable output |
| Mount Type | Wall, indoor |
| Color | Red |
| Marking | FUEGO |
| Candela Settings | 15, 30, 75, 95, 110, 135, 185 cd |
| Strobe Flash Rate | 1 flash per second |
| Tone Patterns | Temporal 3, Non-Temporal, 3.1 kHz Temporal 3, 3.1 kHz Non-Temporal; high or low volume |
| Sound Output High Volume | 87 dBA (Temporal 3, Non-Temporal); 86 dBA (3.1 kHz patterns) |
| Sound Output Low Volume | 79 dBA (Temporal 3, Non-Temporal); 80 dBA (3.1 kHz patterns) |
| Field Settings | Rotary switches for candela, tone and volume |
| Synchronization | System Sensor Sync protocol through UL approved power supplies, or MDL3 sync module |
| Electrical | |
| Operating Voltage | Regulated 24 VDC nominal |
| Operating Voltage Detail | 16 to 33 V |
| Horn Strobe Current at 15 cd | 35 to 50 mA (16 to 33 VDC, by tone and volume) |
| Horn Strobe Current at 75 cd | 87 mA (16 to 33 VDC) |
| Horn Strobe Current at 110 cd | 91 to 94 mA (16 to 33 VDC) |
| Horn Strobe Current at 185 cd | 130 to 190 mA (16 to 33 VDC, by tone and volume) |
| Wire Gauge | 12 to 18 AWG input terminals |
| Test Points | Digital voltage meter (DVM) test points on the device face |
| Physical | |
| Back Box | SBBRL/SBBWL surface back box |
| Trim Ring | TR-2 (red) or TR-2W (white) universal wall trim ring |
| Mounting Plate | Universal plug-in mounting plate with onboard shorting spring |
| Construction | Tamper resistant |
| Environmental | |
| Operating Temperature | 32 to 120 F (0 to 49 C) |
| Humidity | 10 to 93%, non-condensing |
| Environment | Indoor |
| Listings and Approvals | |
| Agency Approvals | UL, ULC, FM, CSFM |
| Approval Details | UL and ULC S5512, S4011; FM 3057072; CSFM 7300-1653:0525, 7135-1653:0503, 7135-1653:0526 |
