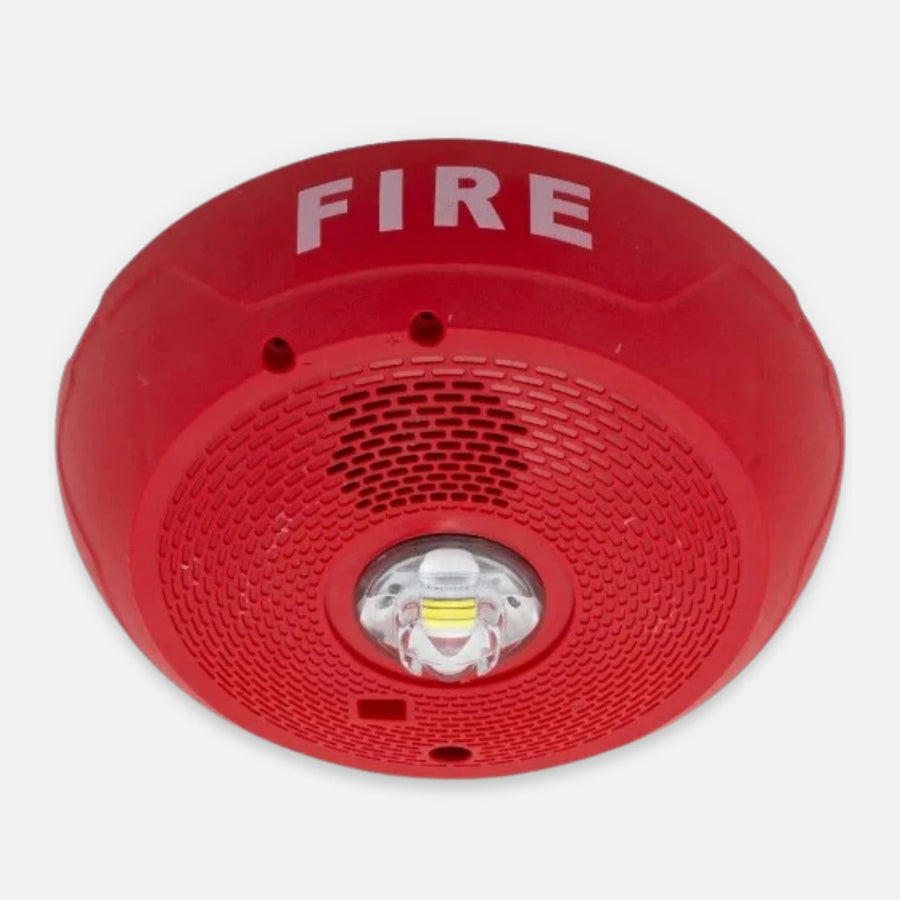

System Sensor PC2RLED-BP10 L-Series LED Ceiling Horn Strobe, Red, Selectable Candela

Part number / SKU
PC2RLED-BP10
  • Horn strobe, selectable output
  • LED
  • Ceiling
  • Regulated 24 VDC nominal

Works with: SBBCRL ceiling surface mount back box, TRC-2 ceiling trim ring, MDL3 sync module, Power supplies with System Sensor Sync protocol, LENS-A3 amber lens, LENS-B3 blue lens and 2 more models Confirmed by the manufacturer


$484.99

Special order· Lead time confirmed by our team after you order.

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The System Sensor PC2RLED-BP10 is a red, ceiling mount horn strobe from the L-Series with LED line, with field selectable candela output. It is a 2-wire notification appliance for indoor audible and visible fire alarm signaling on regulated 24 VDC notification appliance circuits.

Rotary switches set the strobe to 15, 30, 75, 95, 115, 150 or 177 cd and select one of eight tone and volume combinations: Temporal 3 or non-temporal, with or without the 3.1 kHz tone, at high or low volume. Sound output is 79 to 87 dBA depending on setting. The LED strobe flashes once per second and draws 18 mA at 15 cd up to 115 mA at 177 cd on its own, and the horn strobe draws 35 mA at 15 cd up to 190 mA at 177 cd in Temporal 3 high. Operating range is 16 to 33 VDC and terminals take 12 to 18 AWG wire.

The plug-in design uses a universal mounting plate with an onboard shorting spring to check wiring continuity, and DVM test points allow voltage checks. For surface mounting use the SBBCRL ceiling back box; the TRC-2 ceiling trim ring is also available. Synchronization comes from UL approved power supplies with the System Sensor Sync protocol or from the MDL3 sync module.

  • Best for: indoor ceiling locations that need combined horn and strobe fire alarm notification with selectable candela.
  • System fit: regulated 24 VDC notification appliance circuits; System Sensor Sync protocol power supplies or MDL3 sync module.
  • Important to know: for indoor use; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Selectable candela

    seven ceiling settings from 15 to 177 cd on one unit.

  • Lower current LED strobe

    18 mA at 15 cd and 115 mA at 177 cd for the strobe alone.

  • Eight tone settings

    Temporal 3 or non-temporal, with or without 3.1 kHz, high or low volume.

  • Easier service

    DVM test points and a mounting plate with a shorting spring for continuity checks.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUPC2RLED-BP10
General
Brand System Sensor
Model PC2RLED-BP10
Series L-Series with LED
Device Type Horn strobe, selectable output
Device Type Detail 2-wire
Mount Type Ceiling
Color Red
Strobe Technology LED
Candela Settings 15, 30, 75, 95, 115, 150, 177 cd (field selectable)
Flash Rate 1 flash per second
Tone Settings 8 combinations: Temporal 3 or non-temporal, with or without 3.1 kHz, high or low volume
Sound Output 79 to 87 dBA depending on tone and volume setting (UL/ULC, 16 to 33 VDC)
Synchronization UL approved power supplies with System Sensor Sync protocol, or MDL3 sync module
Diagnostics DVM test points
Electrical
Operating Voltage Regulated 24 VDC nominal
Operating Voltage Detail 16 to 33 VDC
Horn Strobe Current 35 mA at 15 cd to 190 mA at 177 cd, Temporal 3 high (max mA RMS, 16 to 33 VDC)
Strobe Current 18 mA at 15 cd, 70 mA at 75 cd, 115 mA at 177 cd (16 to 33 VDC)
Wire Gauge 12 to 18 AWG
Physical
Surface Back Box SBBCRL ceiling surface mount back box
Trim Ring TRC-2 ceiling trim ring
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Humidity 10 to 93 percent, non-condensing
Environment Indoor
