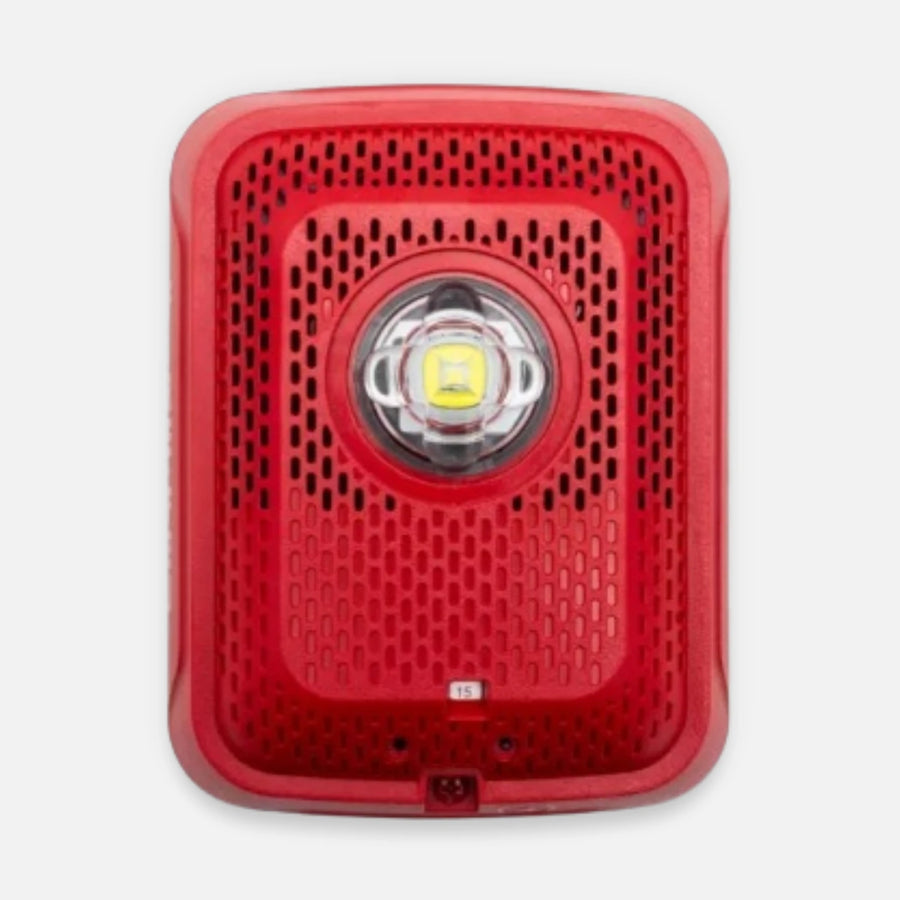

System Sensor SPSRLED L-Series LED Wall Speaker Strobe, Red

Part number / SKU
SPSRLED
  • Speaker strobe
  • LED
  • Wall
  • Strobe: regulated 24 VDC nominal
  • UL, ULC

Works with: SBBSPRL surface mount back box, TR-2 trim ring, 4 x 4 x 2-1/8 in junction box, MDL sync module, LENS-A3 amber lens, LENS-B3 blue lens and 2 more models Confirmed by the manufacturer


$98.65

In stock

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The System Sensor SPSRLED is a red, wall mount L-Series with LED speaker strobe. It combines a 25 V or 70.7 V fire alarm voice evacuation speaker with a public mode LED strobe in one indoor notification appliance.

The strobe runs on regulated 24 VDC (16 to 33 VDC) with field selectable settings of 15, 30, 75, 95, 110, 135, 185 cd, flashing once per second; current draw is 18 mA at 15 cd, 70 mA at 75 cd, 120 mA at 185 cd. Speaker taps are 1/4, 1/2, 1 and 2 W, giving 76 to 83 dBA at 10 ft over a 400 to 4,000 Hz range. The unit measures 6.5 x 5.00 x 2.3 in (165.1 x 127 x 58.4 mm).

It mounts to a 4 x 4 x 2-1/8 in or deeper junction box or to the SBBSPRL surface mount back box, and terminals accept 12 to 18 AWG wire. DVM test points on the front face allow voltage checks without removal. The speaker is listed to UL 1480 / ULC 541 and the strobe to UL 1638 / ULC 526, both public mode.

  • Best for: wall mounted voice evacuation with visible notification indoors.
  • System fit: 25 V or 70.7 V fire alarm audio circuits and regulated 24 VDC strobe circuits; SBBSPRL surface back box.
  • Important to know: indoor, dry locations only; installation and programming must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Selectable candela

    settings from 15 to 185 cd on one unit.

  • Four speaker taps

    1/4, 1/2, 1 and 2 W at 25 V or 70.7 V.

  • Lower current LED strobe

    18 mA at 15 cd up to 120 mA at 185 cd.

  • Listed appliance

    speaker UL 1480 / ULC 541 and strobe UL 1638 / ULC 526, public mode.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUSPSRLED
General
Brand System Sensor
Model SPSRLED
Series L-Series with LED
Device Type Speaker strobe
Device Type Detail Selectable output, 2-wire
Mount Type Wall
Color Red
Strobe Technology LED
Candela Settings 15, 30, 75, 95, 110, 135, 185 cd (field selectable)
Flash Rate 1 flash per second
Frequency Range 400 to 4,000 Hz
Sound Output 76 dBA (1/4 W), 79 dBA (1/2 W), 82 dBA (1 W), 83 dBA (2 W) at 10 ft, reverberant
Synchronization UL approved power supplies with System Sensor Sync protocol, or MDL sync module
Diagnostics DVM test points on the front face
Electrical
Operating Voltage Strobe: regulated 24 VDC nominal
Operating Voltage Detail 16 to 33 VDC
Strobe Current 18 mA at 15 cd, 70 mA at 75 cd, 120 mA at 185 cd (UL/ULC, 16 to 33 VDC, mA RMS)
Speaker Voltage 25 V or 70.7 V RMS, rotary switch
Power Taps 1/4, 1/2, 1 and 2 W, rotary switch
Maximum Supervisory Voltage Speaker 50 VDC; strobe 33 VDC
Wire Gauge 12 to 18 AWG
Physical
Dimensions 6.5 x 5.00 x 2.3 in (165.1 x 127 x 58.4 mm), including lens
Dimensions with Back Box 6.62 x 5.12 x 4.55 in (168.1 x 130 x 115.5 mm) on SBBSPRL
Back Box 4 x 4 x 2-1/8 in or deeper junction box
Surface Back Box SBBSPRL
Trim Ring TR-2
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Humidity 10 to 93 percent, non-condensing
Environment Indoor, dry locations
Listings and Approvals
Agency Approvals UL, ULC
Approval Details Speaker: ANSI/UL 1480 / ULC 541, public mode; Strobe: ANSI/UL 1638 / ULC 526, public mode
