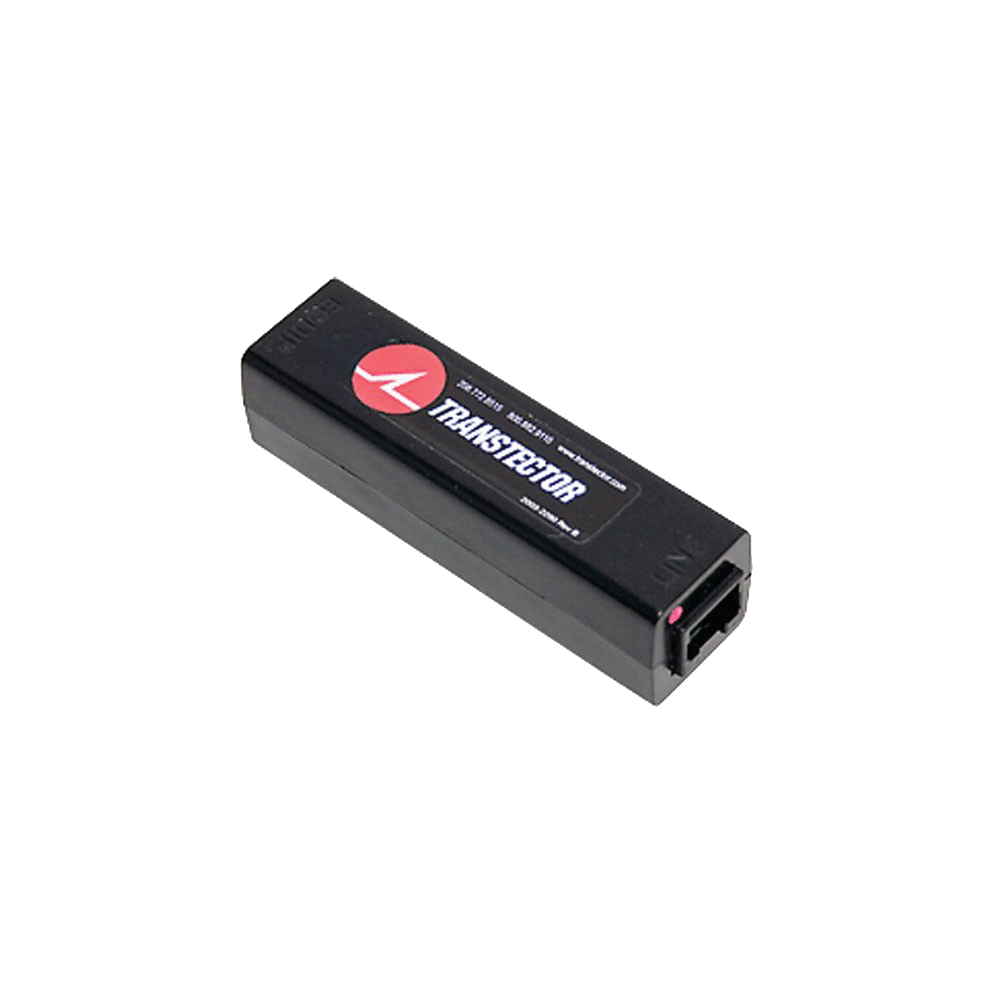

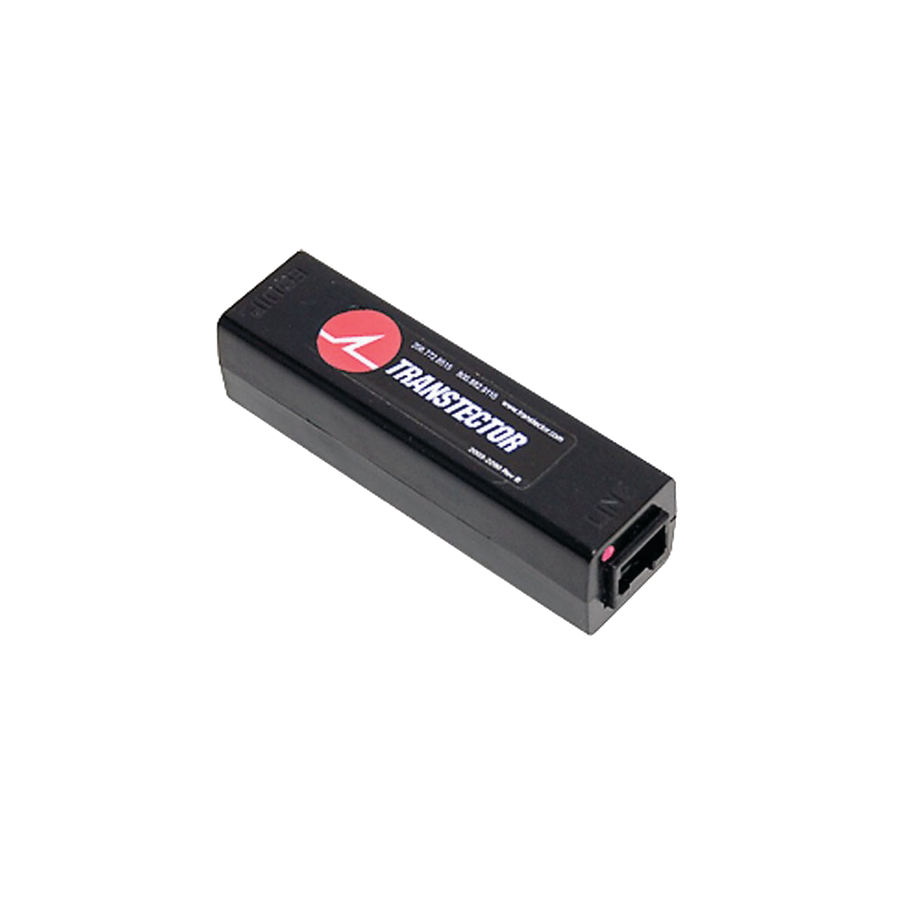

Transtector T-DPR-GE-POE Gigabit PoE Surge Protector RJ45

Protect your IP network with Transtector surge protectors that use the latest technology in protective systems: silicon avalanche diodes (SASD).

Unlike other manufacturers who use protective metal oxide varistor (MOV) to be degraded over time by opposing to transient or voltage surges that damage your electronics, Transtector uses silicon avalanche diodes (SASD) that does not degrade in opposing the surge, having the fastest response and the highest return on their protectors; thus maintaining the best protection and minimizing repair costs and replacement of electronic equipment.

- Silicon Avalanche Diode (SASD).
- Do not degrade by transients.
- Bidirectional protection in load and line.
- Protocol: Gigabit Ethernet / Power over Ethernet.
- Data speed: 10/100/1000 Mbps.
- Maximum operating voltage: 60 Vpk.
- Protected pines: (1.2) (3.6) (4.5) and (7.8).
- Connectors: RJ45.
- Impedance: 85-110 ohms.
- Mounting: for racks 19" (48 cm) and 23" (58 cm) or rail.
- Temperature: -40 to 167 °F (-40 ° to 75 °C).

For indoor, it is suggested to install it on copper bars inside enclosures or NEMA boxes.

Key Features

• Gas Discharge Tube Technology for Rapid Energy Absorption
• Protection for All 4 Ethernet Pairs 1-2, 3-6, 4-5, 7-8
• 100 Ohm Impedance for Minimal Signal Distortion
• Flexible Mounting Options for Rack, Wall or DIN Rail
• Industrial Grade Protection for Harsh Environments
• Ideal for Wireless Links, IP Surveillance and Data Centers
