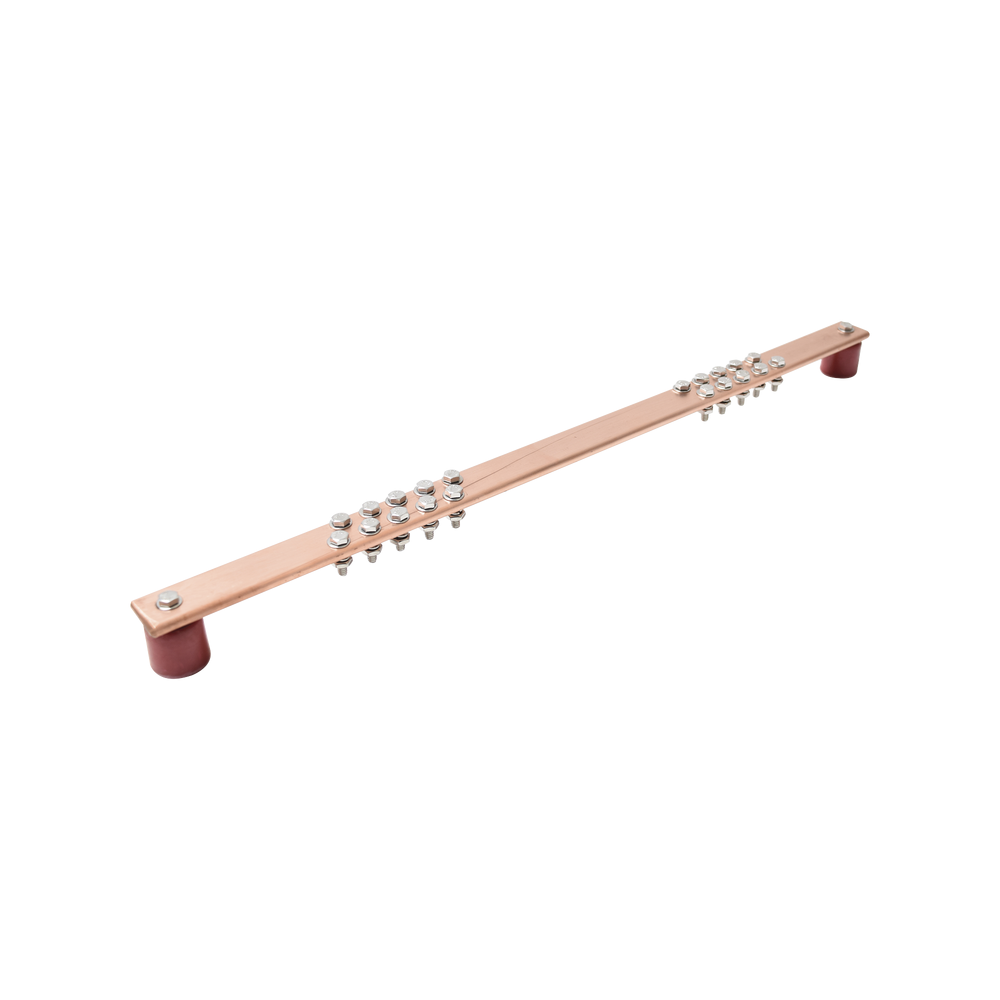

Total Ground TG-BUE-RACK Grounding Connecting Bar for 19'' Rack Mounting
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The union bars and land distribution are designed to meet the needs of the electricity and telecommunications market.
They provide the function of distributing the ground wires either directly to the equipment to be protected or through the use of secondary couplers.
It allows the connection to be safe, durable, reliable and avoids cable joints with insulating tape, caps or heat shrink, which are neither safe nor durable.
It is a basic element in the infrastructure of any modern building.
In earthing systems, the Union Bar is the permitted splice method when it is impossible to maintain a single continuous section of conductor. It is also used for the distribution of the different physical earth networks in a building.
Applications:
Electric distribution.
System distributions to grounding system.
Union bars for telecommunications.
Telecommunications.
Main Grounding Busbar (TMGB)
Telecomumunications Grounding Busbar (TGB).
Telephony.
CCTV.
Commercial buildings.
Business in general.
Characteristics:
Dimensions: 489.6 x 25.4 mm (Largo x Ancho)
Thickness: 1/4" (6.35 mm)
Perforations: 20 orifices for 3/16" connectos.
Screws: 20 screws 3/16" x 3/4" with washer and nut.
Key Features
- Standard 19-Inch Rack Mount for Easy Installation
- 550 Amp Current Capacity for High Power Applications
- 20 Connection Points With 3/16-Inch Terminal Holes
- Secure Connections Without Electrical Tape Requirements
- Robust 1/4-Inch Thick Construction for Durability
- Complete Hardware Kit Included for Immediate Use
