TP-Link · Routers and Switches

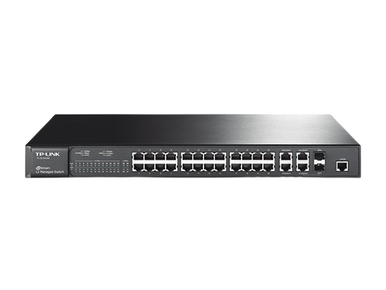

TP-Link TL-SL5428E 24-Port 10/100 L2 Managed Switch with 4 Gigabit Ports and 4 Combo SFP Slots

Part number / SKU
TL-SL5428E
  • 24x 10/100, 4x 1 GbE RJ45
  • Internal AC
  • Rackmount 1U

$238.79

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The TP-Link TL-SL5428E is a 1U rackmount Layer 2 managed switch with twenty-four 10/100 Mbps RJ45 ports and four 10/100/1000 Mbps RJ45 ports, plus four combo Gigabit SFP slots and a console port. TP-Link designs it for workgroups and departments that need a cost sensitive Layer 2 switch.

TP-Link rates it at 12.8 Gbps switching capacity and 9.5 Mpps forwarding, with an 8K MAC table and 4 Mb packet buffer. It supports 4K 802.1Q VLANs, LACP link aggregation, STP, RSTP and MSTP, IGMP snooping, L2 to L4 ACLs, 802.1X authentication, DHCP snooping, ARP inspection and DoS defense. Management is by web GUI, CLI over console or Telnet, SNMP v1/v2c/v3 and RMON, and up to 32 switches can be managed from one IP address through IP clustering.

The steel case is fanless, runs from internal 100 to 240 V AC power and mounts in a standard 19 inch rack.

  • Best for: Workgroup and department networks that need managed 10/100 access ports plus Gigabit ports.
  • System fit: TP-Link L2 managed switch with web GUI, CLI, SNMP and RMON; IP clustering for up to 32 switches.
  • Important to know: The 24 main ports are 10/100 Mbps; only 4 RJ45 ports are Gigabit, and the 4 SFP slots are combo ports shared with them.

Why teams choose it

Built for reliable networks

  • Gigabit ports

    4 Gigabit RJ45 ports plus 4 combo SFP slots for copper or fiber links.

  • Full L2 feature set

    4K VLANs, LACP, STP, RSTP and MSTP, and IGMP snooping.

  • Access security

    L2 to L4 ACLs, 802.1X with RADIUS, DHCP snooping, ARP inspection and port security.

  • Central management

    Web GUI, CLI, SNMP and RMON, with IP clustering for up to 32 switches.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUTL-SL5428E
General
Brand TP-Link
Model TL-SL5428E
Device Type L2 managed switch
Form Factor Rackmount 1U
Housing Steel case
Cooling Fanless
Dimensions 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in)
Interfaces
Ports 24x 10/100, 4x 1 GbE RJ45
SFP Ports 4x combo Gigabit SFP
Console Port 1x console
Performance
Switching Capacity 12.8 Gbps
Forwarding Rate 9.5 Mpps
MAC Address Table 8K
Packet Buffer 4 Mb
Jumbo Frame 2048 bytes
Layer L2 managed
Power
Power Method Internal AC
AC Input 100 to 240 V, 50/60 Hz
Software and Management
Management Web GUI, CLI via console and Telnet, SNMP v1/v2c/v3, RMON 1, 2, 3, 9
Secure Management HTTPS, SSL/TLS, SSH v1/v2
VLAN 802.1Q, 4K VLANs; port, protocol, MAC based and private VLANs; GVRP
Link Aggregation Static and 802.3ad LACP, up to 14 groups of 8 ports
Spanning Tree 802.1D STP, 802.1w RSTP, 802.1s MSTP
Multicast IGMP snooping, up to 256 groups, multicast VLAN
QoS 802.1p and DSCP, 4 queues, SP and WRR, rate limiting, voice VLAN
Security L2 to L4 ACL, 802.1X with RADIUS, IP-MAC-Port-VID binding, port security, DHCP snooping, ARP inspection, DoS defense, storm control
Clustering IP clustering, up to 32 switches
Diagnostics Port mirroring, cable diagnostics, ping, traceroute, system log
Environmental
Operating Temperature 0 to 40 °C
Storage Temperature -40 to 70 °C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
Listings and Approvals
Certifications CE, FCC
