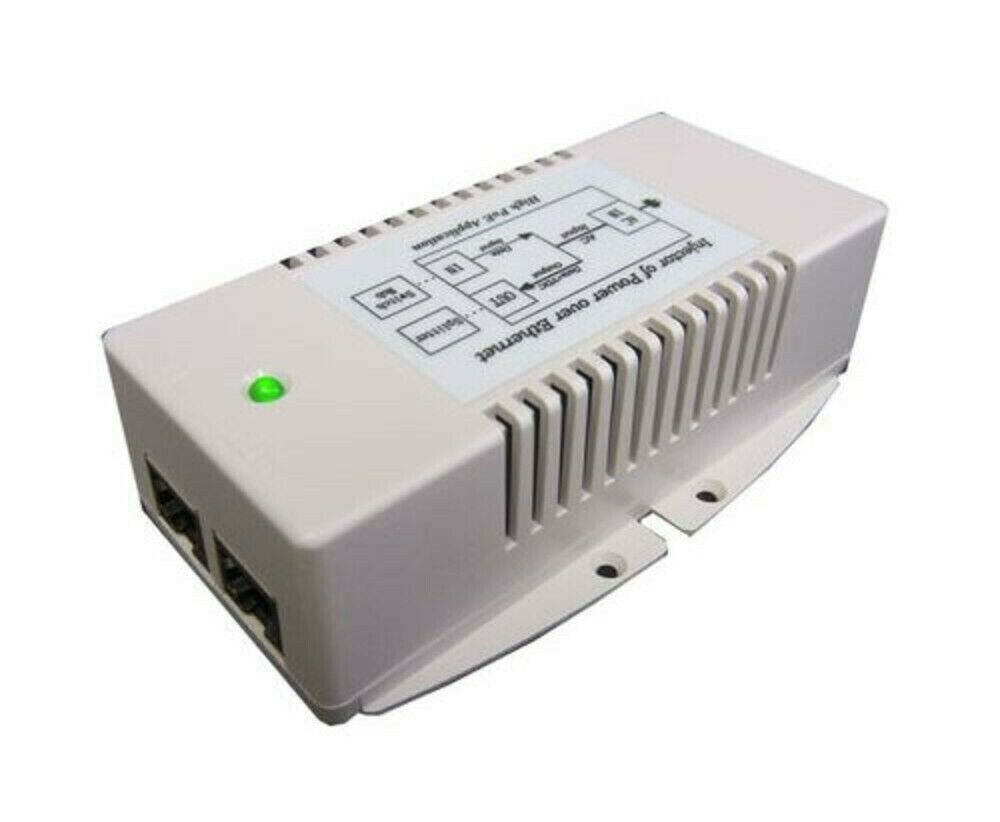

Tycon Power TP-POE-24G Gigabit Passive PoE Inserter Shielded and Surge Protected

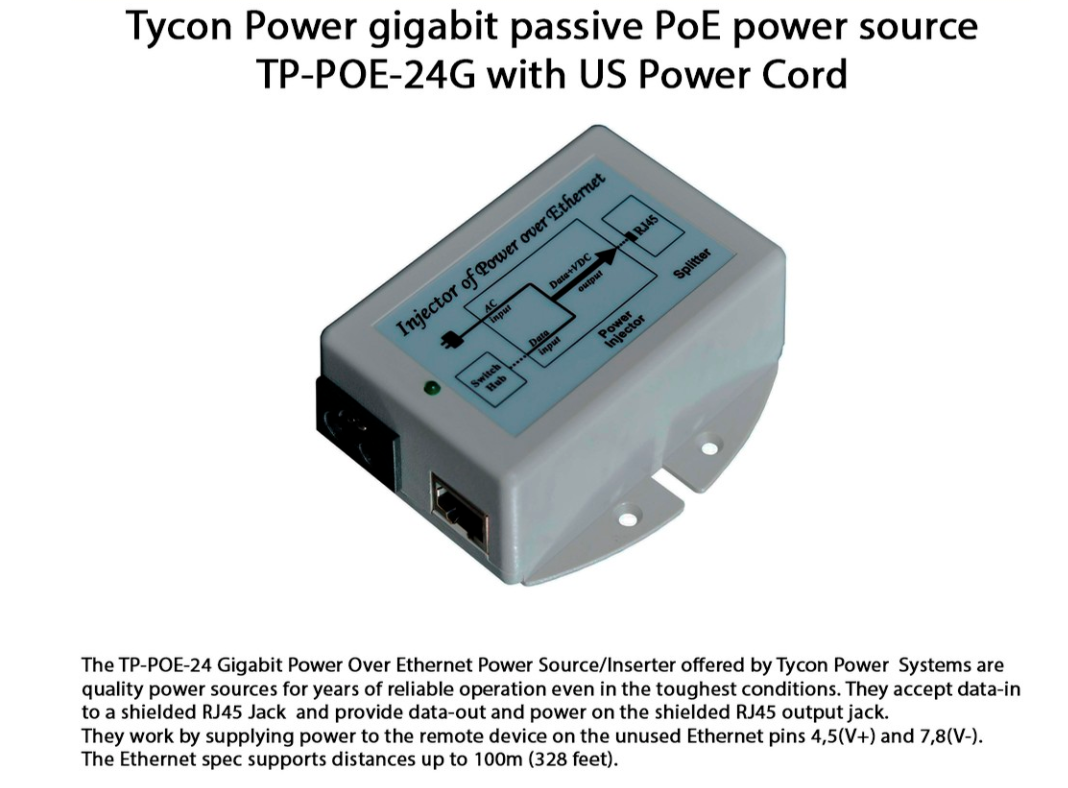

The Tycon Power TP-POE-24G is a single-port, midspan Gigabit passive PoE power source engineered for long-term reliability in demanding network environments. It accepts a universal autoranging AC input (90–264 VAC, 50/60 Hz) and delivers a regulated 24 VDC output at up to 24 W over a shielded RJ45 output jack—making it well-suited for powering 24 V passive PoE wireless access points, IP cameras, VoIP phones, and other CPE devices over standard CAT5/6 cabling at distances up to 100 m. Both the data-in and data-out RJ45 jacks are shielded, and the unit incorporates built-in AC and Ethernet surge protection alongside short-circuit, overload, and overvoltage protection. It complies with UL1950, CSA 22.2, and TUV EN60950 safety standards, and meets RoHS environmental requirements. Power is injected on the unused Ethernet pins 4,5 (V+) and 7,8 (V−), following the standard passive PoE Mode B pinout. The TP-POE-24G is available with a US power cord; adding an 'E' suffix to the part number selects a Euro power cord variant.

Key features & benefits

• Universal Autoranging AC Input — Accepts 90–264 VAC at 50/60 Hz without manual voltage selection, allowing deployment across North American and international 120/240 VAC mains without adapters or reconfiguration.
• 24 VDC Regulated Gigabit Passive PoE Output — Delivers a regulated 24 VDC supply at up to 24 W to connected devices, with load regulation maintained within 5%, ensuring stable voltage under varying load conditions across 10/100/1000 Mbps Gigabit Ethernet links.
• Shielded RJ45 Jacks on Data-In and Data-Out — Both ports feature shielded RJ45 connectors to suppress EMI, reduce noise ingress, and maintain signal integrity—critical in RF-dense or electrically noisy installation environments.
• Built-In AC and Ethernet Surge Protection — Integrated surge protection on both the AC input and the Ethernet data path guards connected equipment against transient voltage spikes from lightning, power line disturbances, or switching events.
• Comprehensive Electronic Protection Suite — Short-circuit, overcurrent, overload, and overvoltage protections are all built in, eliminating the need for external fusing and protecting both the injector and the powered device from fault conditions.
• Standard Passive PoE Mode B Pinout — Power is carried on the spare Ethernet pairs—pins 4,5 (V+) and 7,8 (V−)—fully compatible with 24 V passive PoE devices from Ubiquiti, MikroTik, and other vendors using this standard pinout. An 'R' model is available for reverse-voltage applications.
• Extended Industrial Operating Temperature Range — Rated for operation from −30 °C to +60 °C (−22 °F to +140 °F), enabling reliable deployment in outdoor enclosures, rooftop installations, and unconditioned industrial spaces where conventional injectors may fail.
• Safety Certified to UL1950, CSA 22.2, and TUV EN60950 — Carries formal third-party safety certifications required for commercial, industrial, and government network deployments, reducing compliance risk for integrators and system designers.
• RoHS Compliant — Manufactured without restricted hazardous substances, supporting WEEE/RoHS compliance documentation requirements for enterprise and government procurement.
• Compatible with Optional Passive Splitter and Crossover Accessories — Works with the Tycon POE-SPLT-S passive splitter to power non-PoE devices by separating data and DC at the remote end, and with the POE-XOVER cable for installations requiring reverse-voltage pinout compatibility.
