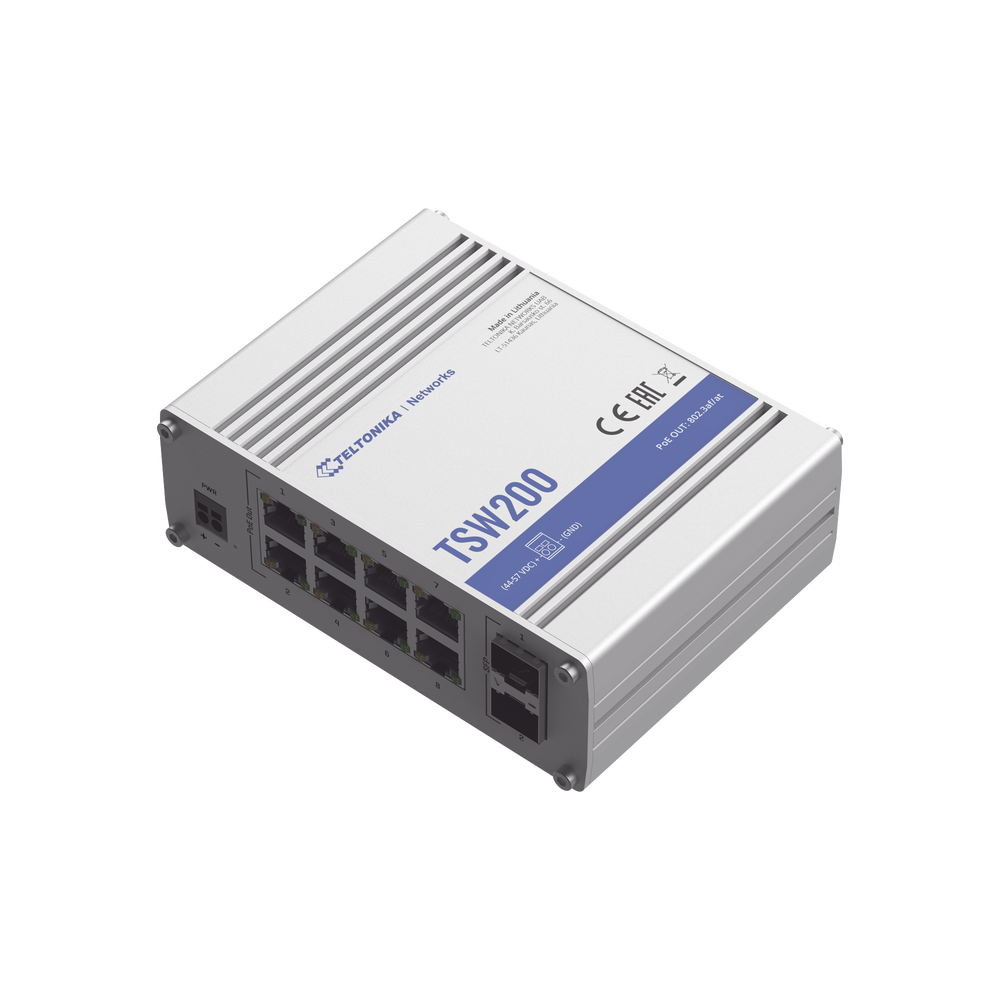

Teltonika TSW200 8-Port Gigabit PoE+ Switch 2 SFP 20Gbps
Product identifier
SKU
TSW200
$184.20
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General:
- Feeds equipment with 802.3 af/at standards, up to 30 Watts per port.
- Robust construction in aluminum housing with DIN rail mounting option.
- Wide operating range in extreme environments.
- Compact size.
- SKU: TSW200000070
- Region: USA, Canada
- PSU: US power supply
Connectivity:
- 8 LAN ports, 10/100/1000 Mbps.
- 8 ports with PoE 802.3 af/at.
- 2 SFP 1G ports.
Performance:
- Bandwidth: 20 Gbps.
Electrical and Physical:
- Power Supply: 7 - 57 Vdc, Requires 44 - 57 Vdc to activate PoE. (Power supply sold separately, Recommended power supply PR320USA)
- Consumption: 5.5 W without PoE, 245.5 W with PoE.
- Weight: 1 lb (456 g).
- Dimensions (WxHxD): 5.32 x 1.74 x 3.74 in / 132 x 44.2 x 95.1 mm.
- Operating Temperature: -40 to 167 °F (-40 to 75°C).
- Ingress Protection: IP30.
Remote Management System RMS
Key Features
- Two SFP Fiber Ports for Long-Distance Optical Connectivity
- Eight Gigabit Ethernet Ports With PoE+ up to 30W Each
- Compliant With IEEE 802.3af and 802.3at PoE Standards
- Robust Aluminum Housing Construction for Industrial Durability
- Wide Operating Temperature Range for Extreme Environments
- Compact DIN Rail Mount Design for Space-Saving Installation
