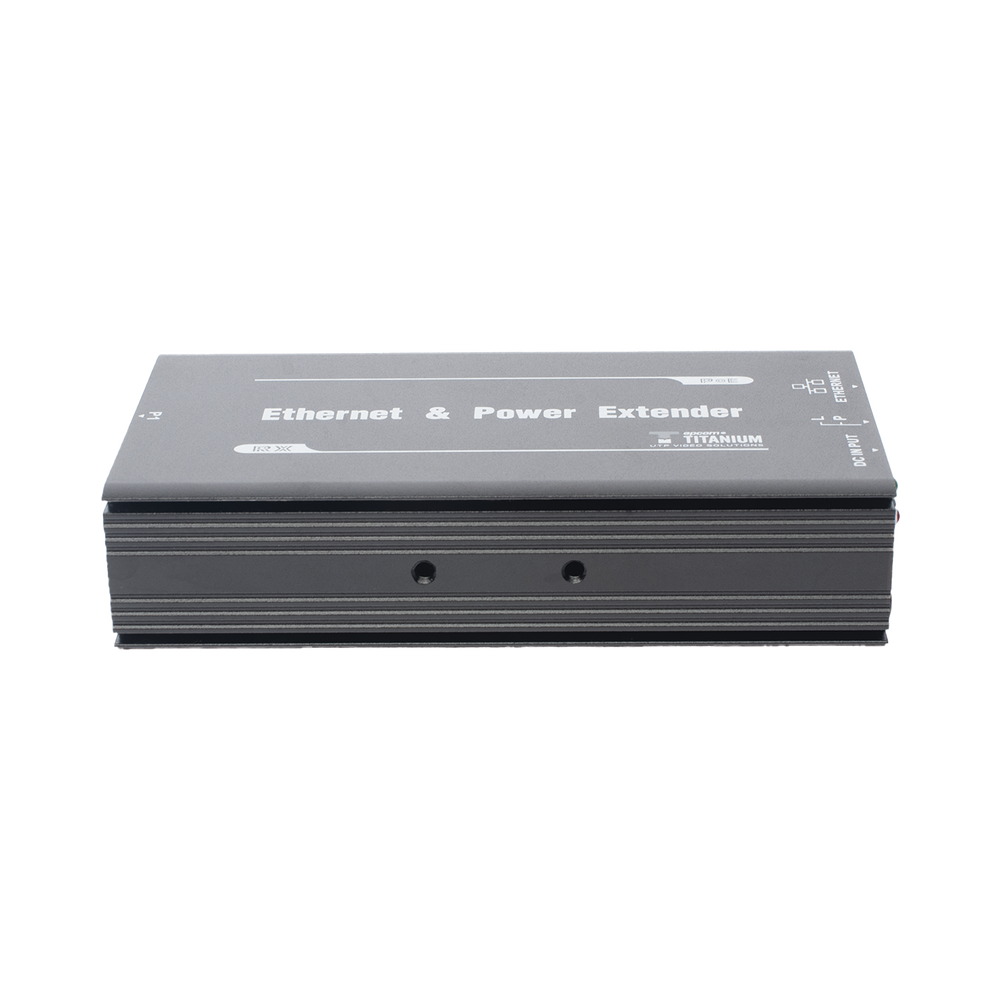

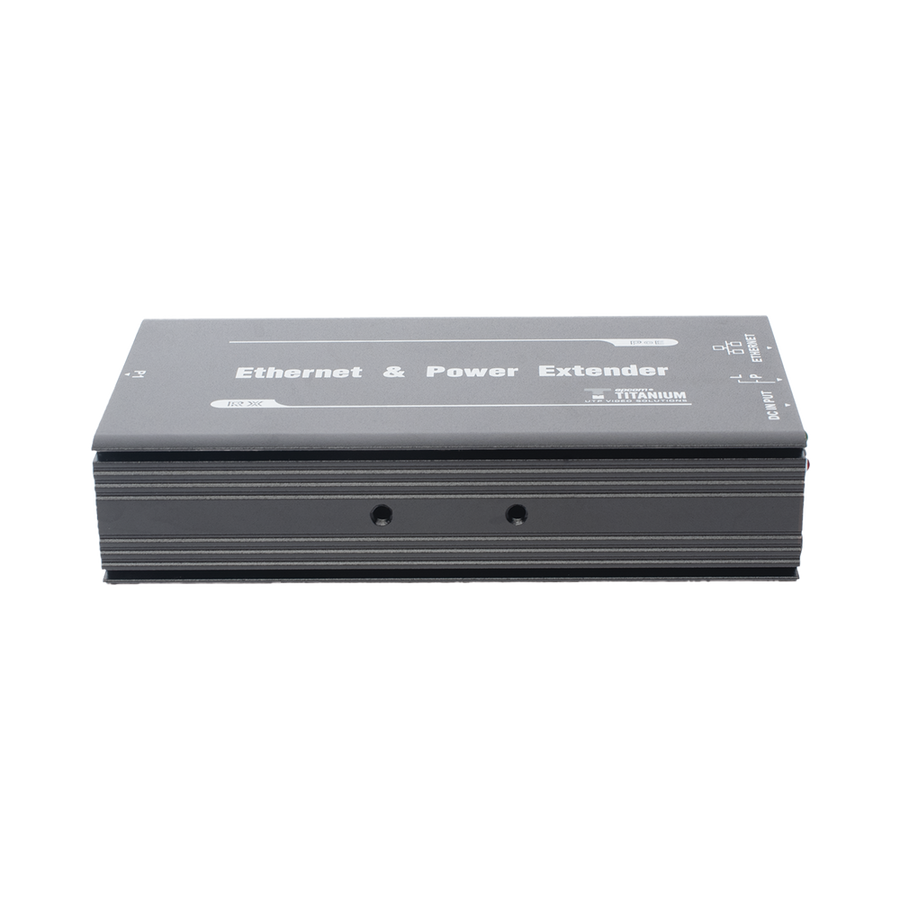

Epcom TT-8001R 12W PoE Injector Receiver 600m Ethernet Extender
Product identifier
SKU
TT-8001R
$73.95
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Characteristics
- Single channel Ethernet and power extender over network cable
- Support cascade mode; maximun four transmitters can be cascaded
- Ethernet transmission distance max up 600 meters
- 12 Watts output power
- Meet standards of IEEE802.3 10 BASE-T IEEE802.3U 100BASE-TX
- High-speed modem technology, the physical bandwith reaches up to 100Mbps ( Bidirectional )
- Low power consuption, automatic error-correction coding technology
- Easy to install, plug and play, fast network connection
Physical and Electrical Characteristics
- Power supply : 53VDC/1.85A (incluided for the receiver)
- Dimensions: 123 x 54 x 24 mm
- Weight: 129 gr Transmitter
- Operating temperature : 0 a 55°C
- Humidity : 0 ~ 95% (without condenation)
- Body color: Black
- Housing: Aluminium
Applications
- Security monitoring system
- Banking, securities, financial
- Casino Security
- Hospitals, Airports
- University, School campus
Key Features
- Extends PoE and Ethernet up to 1968 ft over Cat 5e/6 copper cable
- 60W maximum output supports high-power PTZ cameras and domes
- 100 Mbps bidirectional bandwidth for reliable video transmission
- Multi-stage surge and lightning protection for equipment safety
- Cascade mode supports up to 4 transmitters for extended coverage
- Automatic PD detection and IEEE 802.3af/at/bt standard compliance
