EPCOM

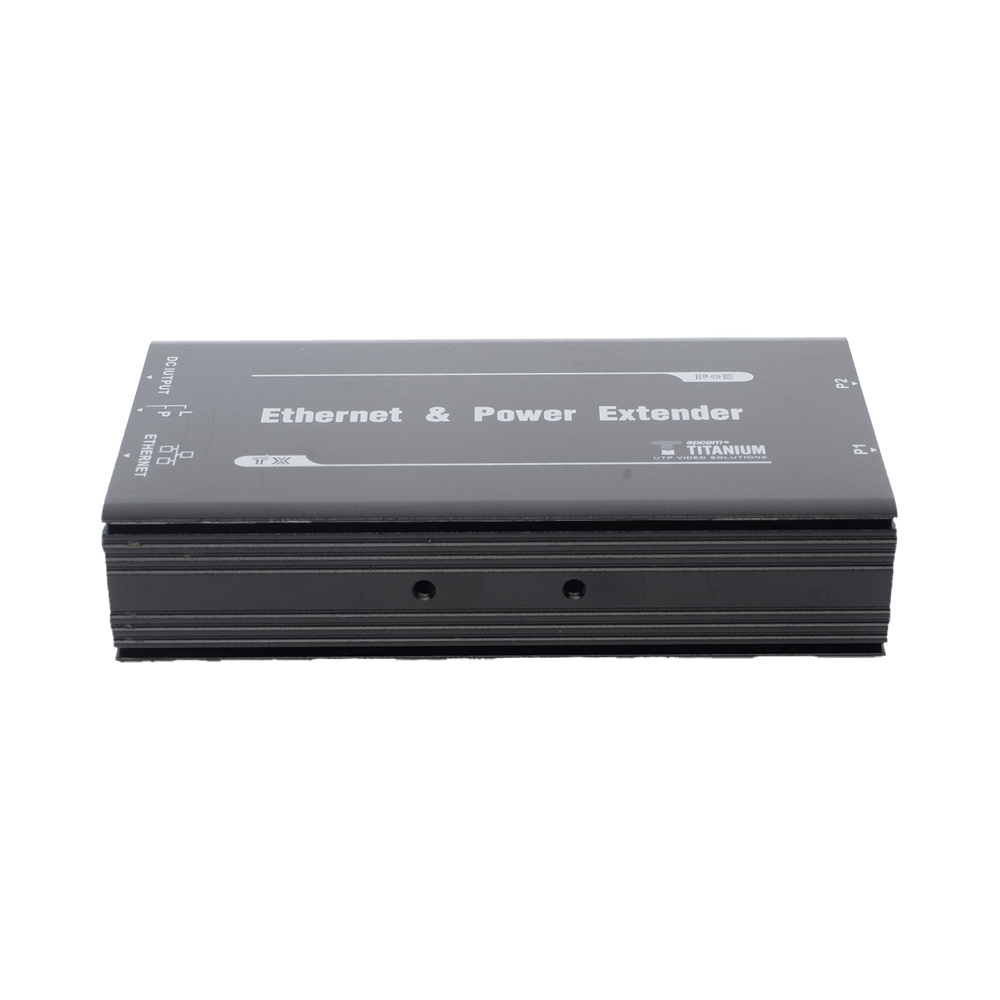

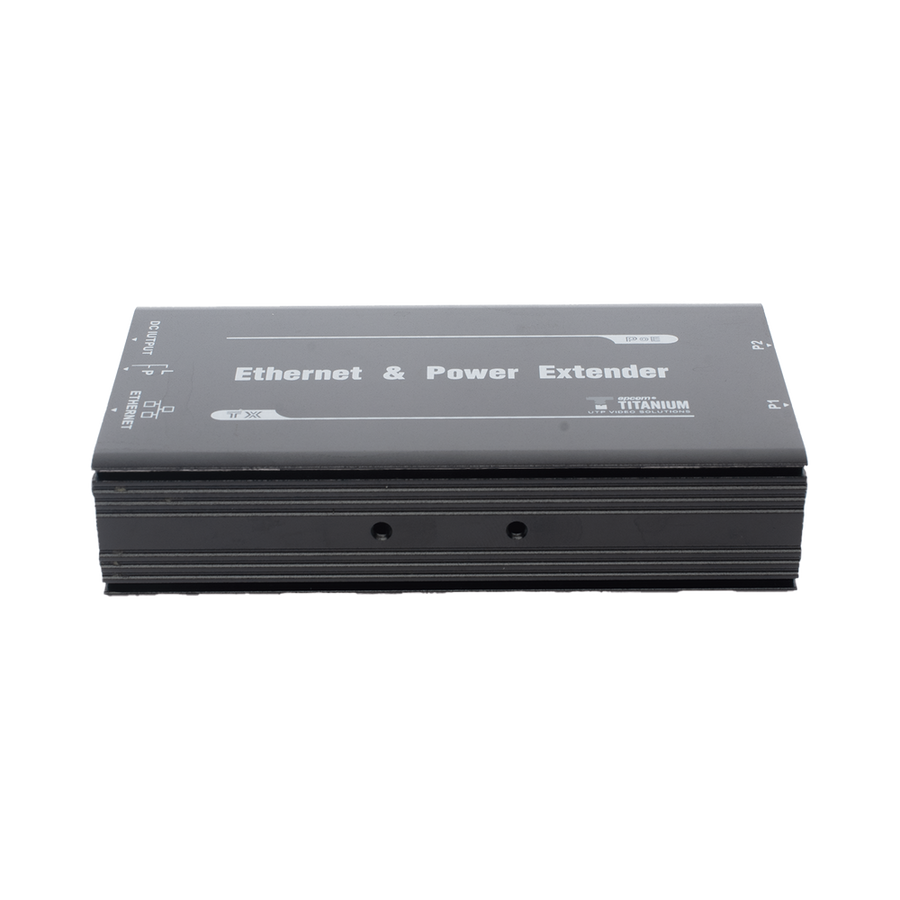

Epcom TT-8001TPOE 12W PoE Injector 600M Ethernet Extender 100Mbps
Product identifier
SKU
TT-8001TPOE
$59.99
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Characteristics
- Single channel Ethernet and power extender over network cable
- Support cascade mode; maximun four transmitters can be cascaded
- Ethernet transmission distance max up 600 meters
- 12 Watts output power
- Meet standards of IEEE802.3 10 BASE-T IEEE802.3U 100BASE-TX
- High-speed modem technology, the physical bandwith reaches up to 100Mbps ( Bidirectional )
- Low power consuption, automatic error-correction coding technology
- Easy to install, plug and play, fast network connection
Physical and Electrical Characteristics
- Power supply : 53VDC/1.85A (incluided for the receiver)
- Dimensions: 123 x 54 x 24 mm
- Weight: 129 gr Transmitter
- Operating temperature : 0 a 55°C
- Humidity : 0 ~ 95% (without condenation)
- Body color: Black
- Housing: Aluminium
Applications
- Security monitoring system
- Banking, securities, financial
- Casino Security
- Hospitals, Airports
- University, School campus
Key Features
- Extends PoE Power and Data up to 1968 ft Over Cat 5e/6 Cable
- 60W Maximum PoE Output for High-Power PTZ Cameras and Domes
- 100 Mbps Bidirectional Ethernet Speed for HD Video Transmission
- Multi-Stage Lightning and Surge Protection for Equipment Safety
- Cascade Support for up to 4 Transmitters in Series Connection
- Automatic PD Detection and IEEE 802.3af/at/bt Standard Compliance
