Epcom TT104VW HDMI 1.4 4-Output Video Wall Controller 1080p

PRODUCT TITLE

Epcom TT104VW HDMI 1.4 4-Output Video Wall Controller 1080p

PRODUCT OVERVIEW

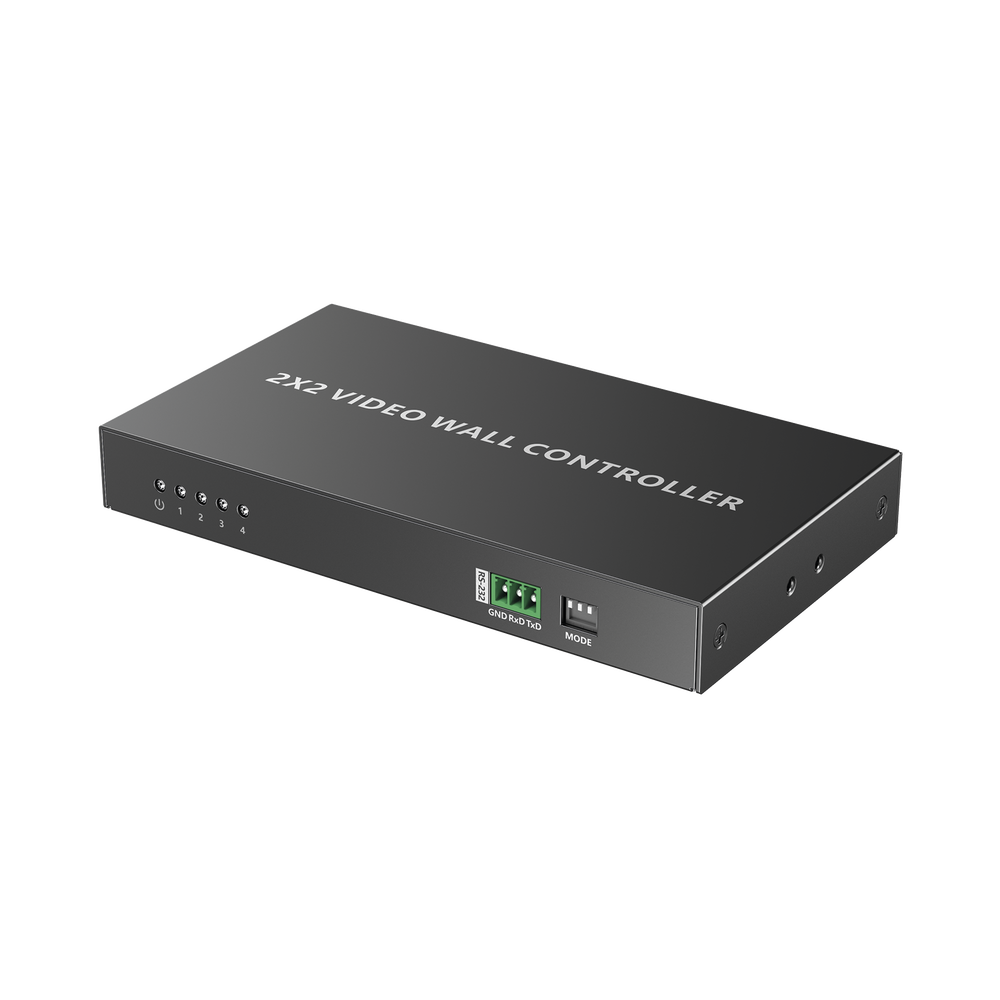

This product is a splicing processor with one HDMI source input and four HDMI outputs to connect with four monitors. It has five splicing modes (1 x 1, 1 x 2, 1 x 3, 1 x 4, 2 x 2), which can be configured via RS-232 or Dipswitch. This allows flexible adaptation to different installation requirements. The product is widely used in areas such as security monitoring, rail transit, broadcasting, smart cities, home theater, training and other fields.

PRODUCT TYPE / CATEGORY

• Networking
• Networking Accessories

KEY FEATURES

• Five Splice Modes: 1x1, 1x2, 1x3, 1x4, and 2x2 Configurations
• HDMI 1.4 and HDCP 1.4 Compatibility for Secure Content Protection
• 3.5 mm Audio Output for Integrated Sound System Support
• RS232 and DIP Switch Control for Flexible Installation Options
• Supports Multiple Resolutions up to 1920x1200 at 60Hz Refresh Rate
• Compact Design for Security Monitoring and Broadcast Applications

TECHNICAL SPECIFICATIONS

• Brand: EPCOM
• Model: TT104VW
• Product Type: Networking Accessories
• HDMI: 1.4
• HDCP: 1.4
• Bandwidth: 18Mbps
• Resolutions: 1080p@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz, 1920x1200, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
• PCM audio format
• Input: HDMIx1 (Type A, 19 pin female)
• Output: HDMIx4 (Type A, 19 pin female)
• Input cable length: ≤5m (AWG26 HDMI2.0 cable standards), ≤10m (AWG23 HDMI2.0 cable standards)
• Output cable length: ≤5m (AWG26 HDMI2.0 cable standards), ≤10m (AWG23 HDMI2.0 cable standards)
• Mode: 1x1 / 2x1 / 1x2 / 2x2 / 3x1 / 1x3 / 4x1 / 1x4
• Dimensions: 151.5(L)*86.5(W)*20.0(H)mm
• Net weight: 140g
• Power supply: 5V/1A
• Consumption: 4W
• Operating temperature: 0-60º
• Includes:
• 1x Videowall Control
• 1x 5V/1A power supply
• 1x Terminal block
• 1x User Manual
• Five Splice Modes: 1x1, 1x2, 1x3, 1x4, and 2x2 Configurations
• HDMI 1.4 and HDCP 1.4 Compatibility for Secure Content Protection
• 3.5 mm Audio Output for Integrated Sound System Support
• RS232 and DIP Switch Control for Flexible Installation Options
• Supports Multiple Resolutions up to 1920x1200 at 60Hz Refresh Rate
• Compact Design for Security Monitoring and Broadcast Applications

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
