Introduction:

EPCOM TITANIUM presents its range of high-tech HDMI extenders and easy interconnection in professional security systems.

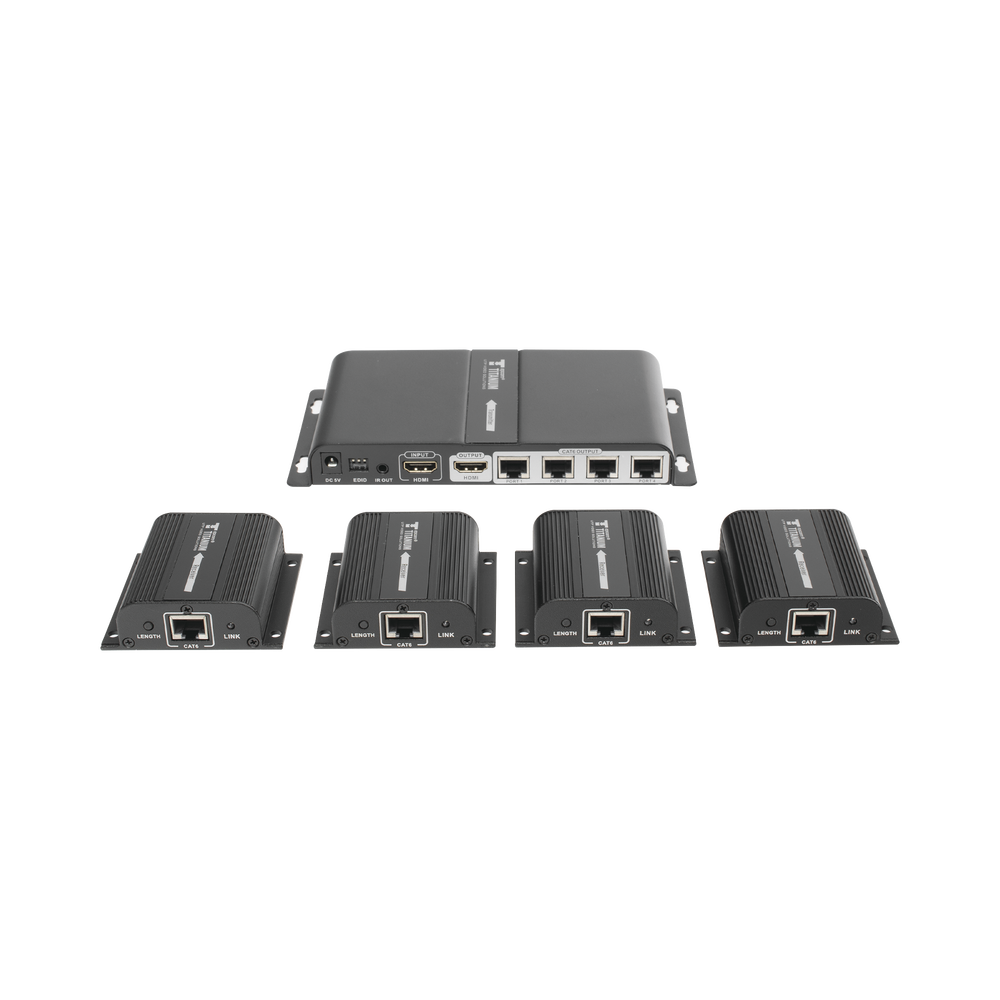

The TT-714-PRO works with 4 HDMI extension receivers using CAT6 cable to split and extend 1 HDMI source to 4 HDMI screens with CAT6 / 6a / 7 cable up to 40m / 131ft. The highest supported resolution is 1920x1080 @ 60Hz and supports IR control, in addition to EDID technology, and only the hub requires power; the receiver works with the transmitter through the CAT6 cable. The ideal solution for HDMI exhibitions, video conferences, and entertainment centers.

Characteristics :

• Distribute 1 HDMI source to 4 HDMI screens through a network cable at the same time.
• With HDMI Loop-out output.
• Compatible with CAT6 / 6a / 7 network cables.
• The transmission distance is up to 40 m / 131 feet.
• The highest resolution admitted is 1920x1080 @ 60Hz.
• Supports 20 ~ 60Hz IR passback.
• It supports the EDID function, Provides power from the transmitter to the receiver.

Application areas :

It is suitable for areas of:

• Source devices such as DVD, PS3, STB, PC, DVR.
• Monitors or displays screens.

Specifications :

• HDMI inputs: 1
• Outputs RJ45: 4
• HDMI version: Compatible with HDM1.3
• HDCP version: Compatible with HDCP 1.2
• HDMI resolution: 1080 p @ 50/60 Hz
• Power consumption: ≤ 15 W
• Dimensions: TX: 7.48 x 3.77 x 0.94" (190 x 95.9 x 23.9 mm) ; RX: 2.81 x 2.62 x 0.88" (71.6 x 66.6 x 22.6 mm)
• Power included: 5 Vcc @ 3 A
• Color: Black

Key Features

• Extends HDMI Signal up to 131 ft Using Cat6/6a/7 Ethernet Cable
• Distributes Single HDMI Source to Four Displays Simultaneously
• Power Over Cable Technology Requires Only Transmitter Power Supply
• HDMI Loop Output on Transmitter for Local Monitoring
• EDID Management for Optimal Image Adaptation to Display Capabilities
• Supports HDCP 1.2 and Multiple Audio Formats Including DTS
