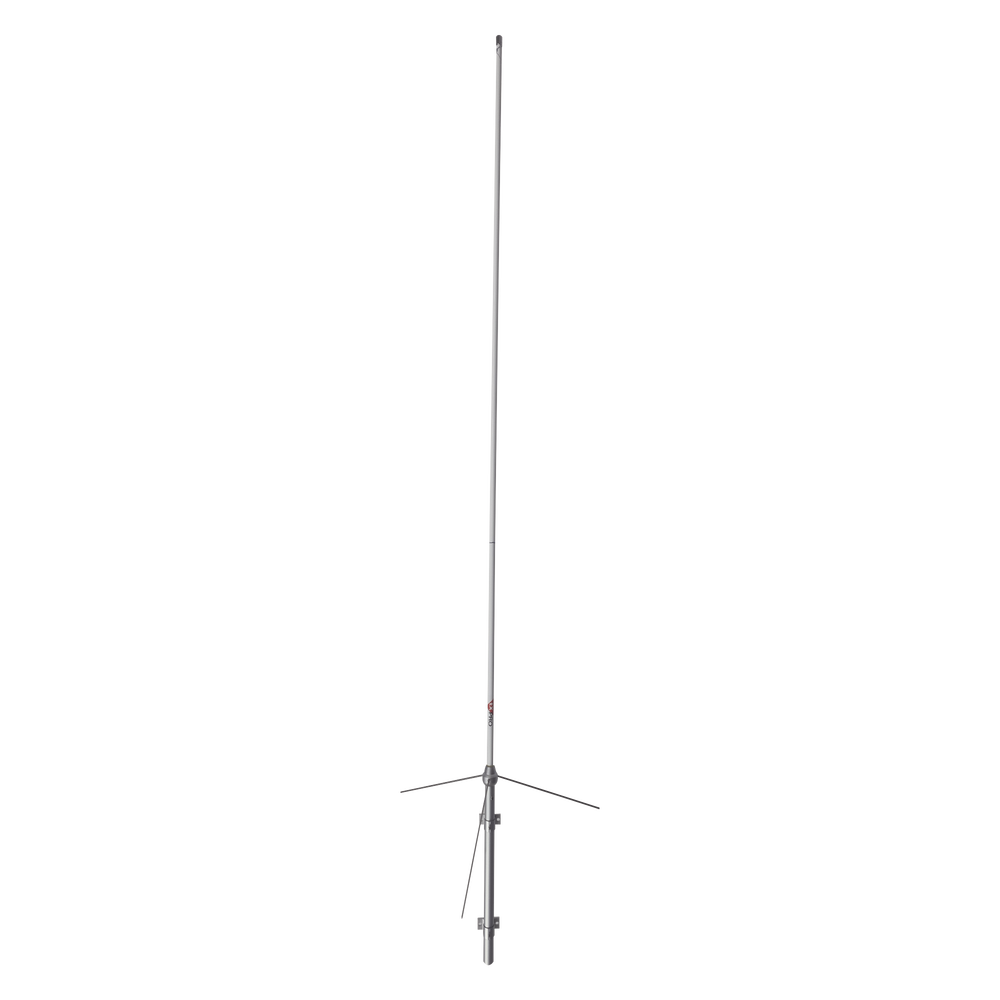

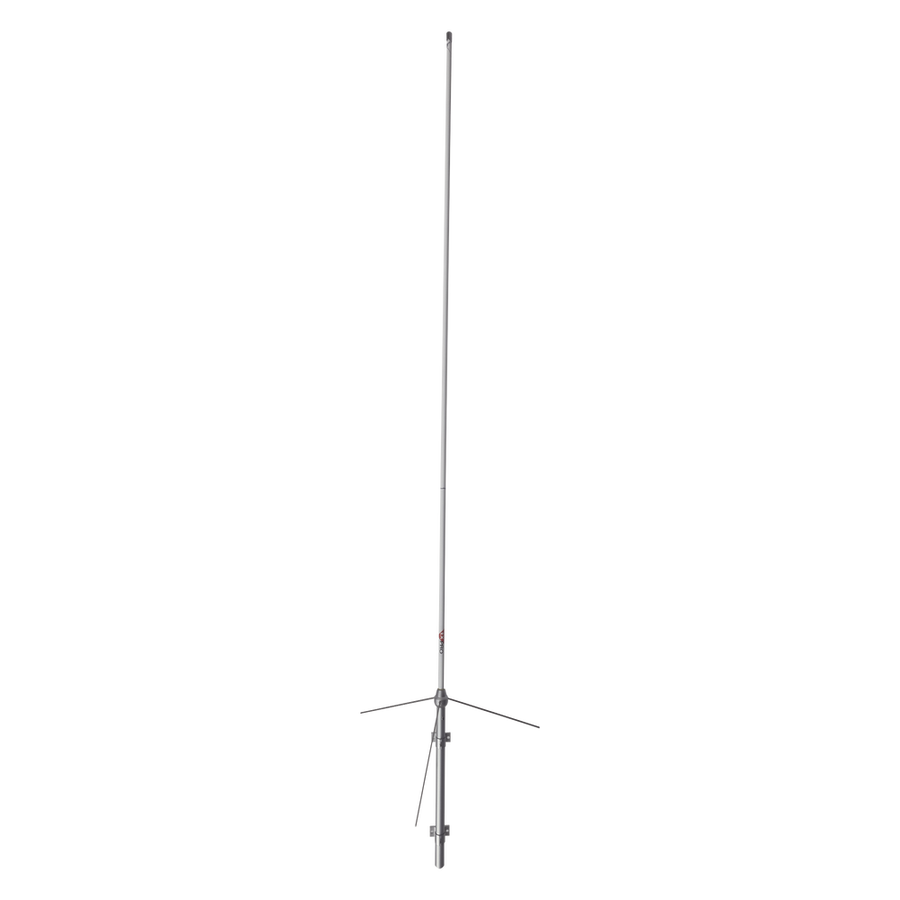

Txpro TX-AB-136-74-FG1 VHF Repeater Antenna 136-174MHz 4.5dBi 200W
Product identifier
SKU
TX-AB-136-74-FG1
$62.27
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The TXAB series base station antennas are performance icons. Their low-profile design reduces wind resistance, making them an ideal choice for challenging locations with multiple antennas. Their excellent performance makes them the best option for such situations.
The antennas' electrical design provides a low radiation angle and a stable pattern, ensuring reliable signal transmission.
Combining these characteristics with affordability, the TXAB series antennas offer a complete package of quality, performance, and price.
| Manufacturer | TXPRO |
|---|---|
| Product Narrative | VHF Base/Repeater Antenna. Fiberglass, 1 section. 5⁄8 wave |
| Specific Freq. (MHz) | 136-174 MHz (Tunable) |
| Gain (dB) | 4.5 |
| Maximum Input Power (Watts) | 200 watts |
| Bandwidth >1.5 VSWR | 5 MHz |
| Direct Termination | SO-239 (UHF Female) |
| Overall Length | 5' 7" |
| Rated Wind Velocity (MPH) | 135 MPH |
| Mount Hardware Included | Yes |
| Weight | 2 lbs 8 oz |
Key Features
- Adjustable VHF Frequency Range From 136 to 174 MHz
- Optimized 4.5 dBi Gain for Superior Signal Performance
- Wind Resistant Design Withstands 135 mph Wind Speeds
- Durable Fiberglass Construction for Long-Term Reliability
- 200 Watts Power Handling for High-Power Applications
- Low Radiation Angle Design Provides Stable Coverage Pattern
