TXPRO

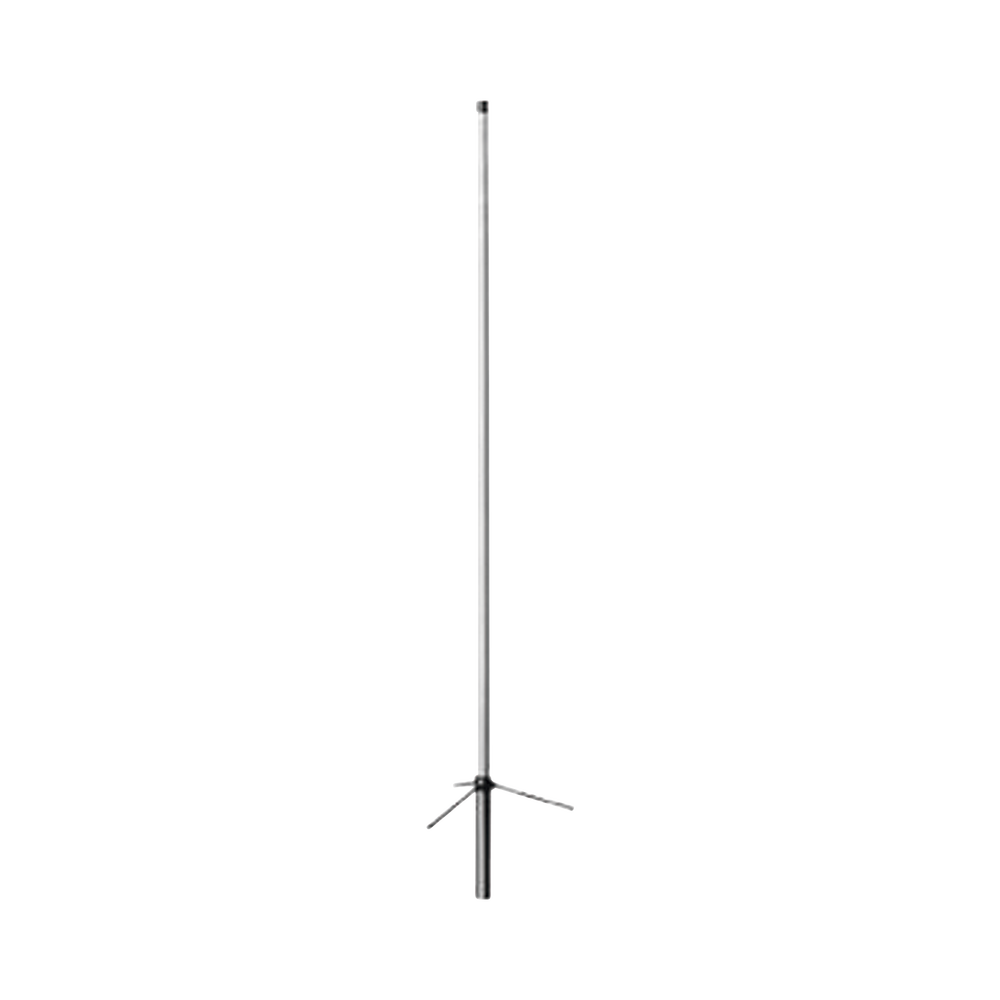

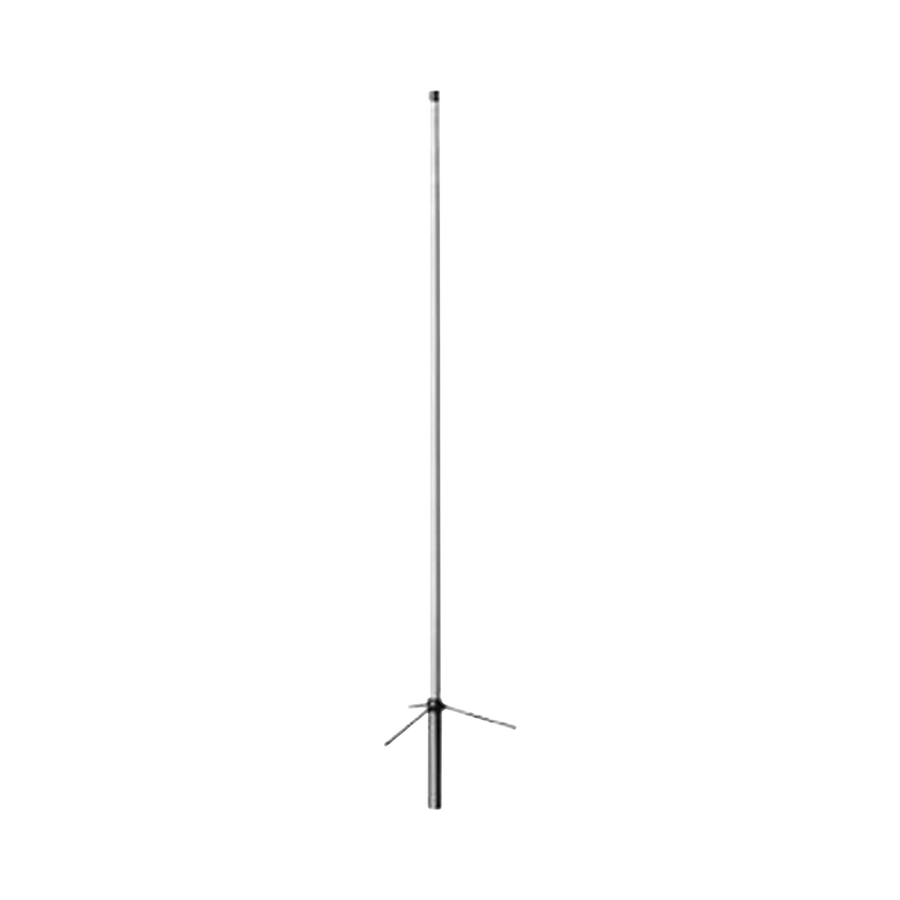

Txpro TXAB-430-490 UHF Base Antenna Fiberglass, Field Adjustable, 430 - 470 MHz
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The antennas of the TXAB series, base station are a performance icon.Its low profile against the wind makes them an ideal option in problematic locations with a large population of antennas, making them the best option due to their excellent performance.
Its electrical design provides a low angle of radiation and a stable pattern.
Combining these characteristics with its low cost, a complete package is obtained: QUALITY, PERFORMANCE, AND PRICE.
-Frequency range: 430-490 MHz
-Gain: 6.5 dB
-Bandwidth: 10 MHz
-Power: 200 Watts
-Connector: UHF Female
-Length: 5 ft.
-Wind resistance: 120 mph
FEATURES
- High performance 200 Watts power rating, low SWR & Broad Banded.
- There is a spetial design of the joint bracket to connect fiber glass tubing that enables the antenna to maintain the same strength as one.
- The radiator and coil are ermetically sealed in fiver glass tubing to assure low SWR in all weather.
- DC ground construction allowes static disipation for low noise ratio and maximum lightning protection
- Vertical polarization with 50 Ω impedance.
- Mast diameter acepted is from 1 3/16" (30 mm) to 2 7/16" (62 mm).
- UHF (SO-239) connector.
- Poly bag with header card, UPC coded.
Key Features
- Fiberglass Construction for Durability and Weather Resistance
- Female UHF Connector Ensures Secure and Reliable Connections
- Low Radiation Angle Provides Superior Signal Efficiency
- 10 MHz Bandwidth for Clear and Stable Communication
- Ideal for High-Density Antenna Locations With Space Constraints
- Stable Radiation Pattern Ensures Consistent Performance
Need help confirming the right configuration?
Share the model, application or current system. A specialist will help you confirm compatibility.
