Txpro TXP-D4865-28-N-KIT2 Kit of 2 Antennas Extended Frequency, 4.8 - 6.5 GHz, 28 dBi, N-Male Connectors, Ideal for WISP

TXPRO

Txpro TXP-D4865-28-N-KIT2 (2-Pack) 28 dBi Parabolic Sector Antenna 4.8-6.5 GHz

Product identifier
SKU TXP-D4865-28-N-KIT2
$175.11
Out of stock
Ask about alternatives Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

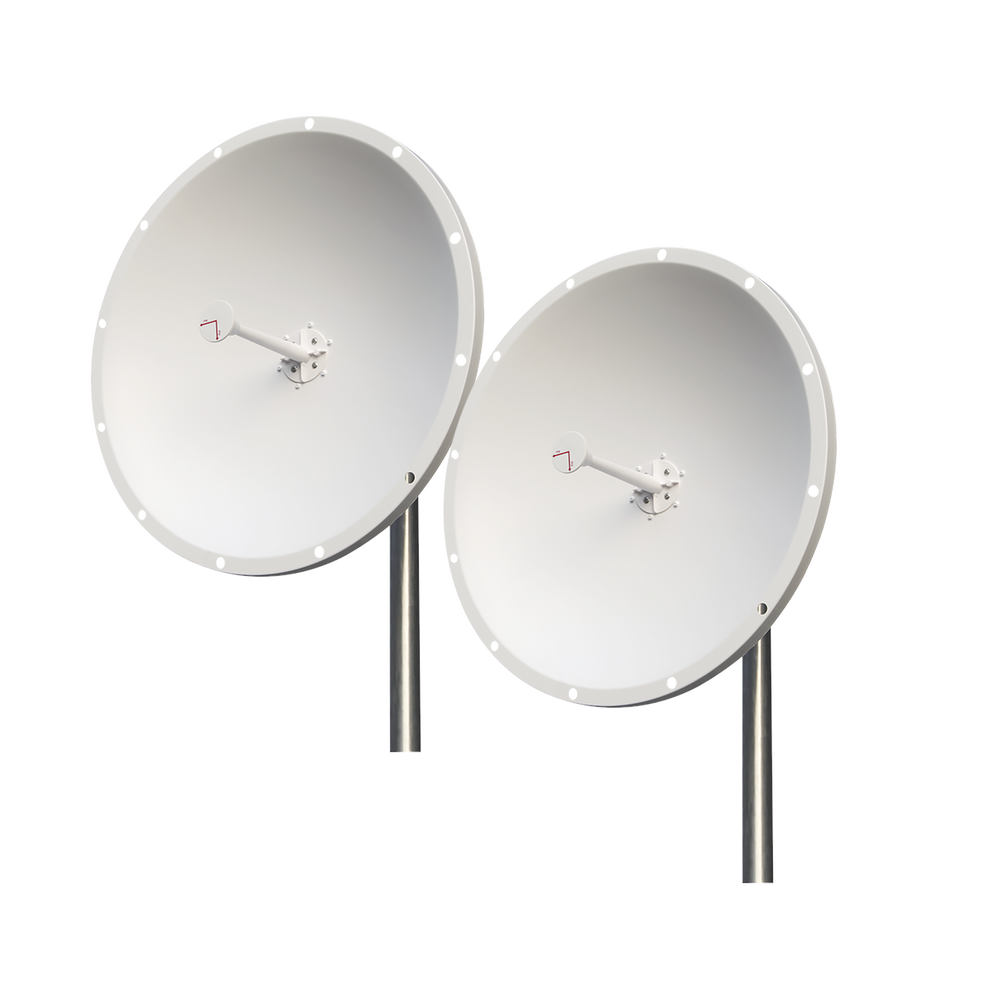

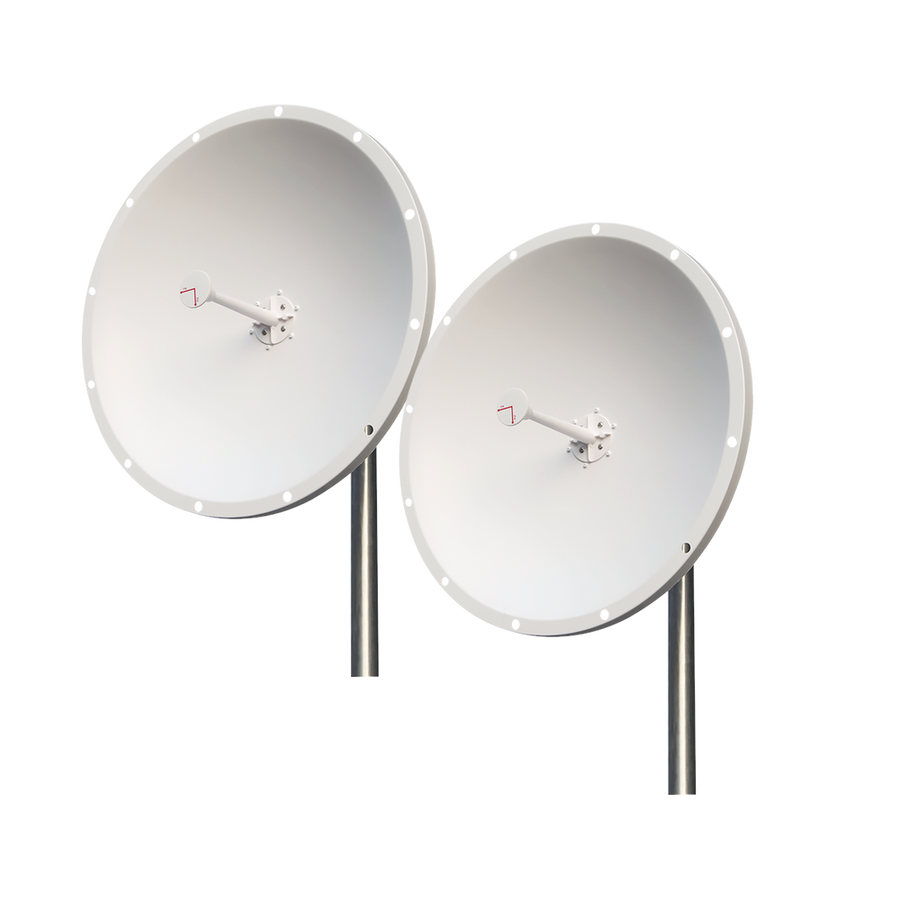

Kit of 2 parabolic antennas of extended frequency 4.8 to 6.5 GHz model
TXP-D4865-28-N.

- Includes 2 antennas on the same box.
- The antennas have N-Male connector jumpers.
TxPRO antennas are ideal for low noise environments such as rural or remote areas where radio frequency spectrum is highly available.
These lightweight parabolic antennas, handle an extended frequency range from 4.8 to 6.5 GHz, to provide a wide variety of applications such as Internet transmission in the WISP market, video, and data transmission. Thanks to its lightweight, the installation is very simple, fast, and reduces the weight in the tower. They have integrated RF coaxial cables for direct connection to PTP access points depending on the type of connector to be used.
¡Connects directly to Mimosa Networks B5c radio!
Technical Specifications

Average distance up to 15 km.
Frequency range: 4.8 - 5.1 GHz / 5.1 – 6.5 GHz.
Gain: 26 ± 1 dBi / 28 ± 1 dBi.
Polarization: (V/H or ± 45°).
Aperture of vertical beam: 7°.
Aperture of horizontal beam: 7°.
Gain ratio from front to back:> 28 dB.
Insulation: > 20 dB.
VSWR: ≤ 1.5:1; max. 2.0.
Maximum power per port: 50 W.
Impedance: 50 Ω.
Dimensions: φ 0.6m.
Weight: 2.5 kg.
Color: White.
Pole mounting (Diameters 30 - 70 mm).
Connectors: Includes two RF cables in N-Male connectors.
Temperature range: -55 to 70°C.
Humidity: < 95 %.
Wind resistance: 200 km/h.
Shipping dimensions: 70 height x 72 width x 20 depth cm.

Key Features

  • Extended Frequency Range From 4.8 to 6.5 GHz Operation
  • High 28 dBi Gain for Superior Signal Strength and Reach
  • Wind Resistant Design Withstands Speeds up to 124 mph
  • Lightweight Construction at Only 5.5 lb per Antenna
  • Includes Two RF Cables With N-Male Connectors
  • Direct Connection Compatible With Mimosa B5C Radios
