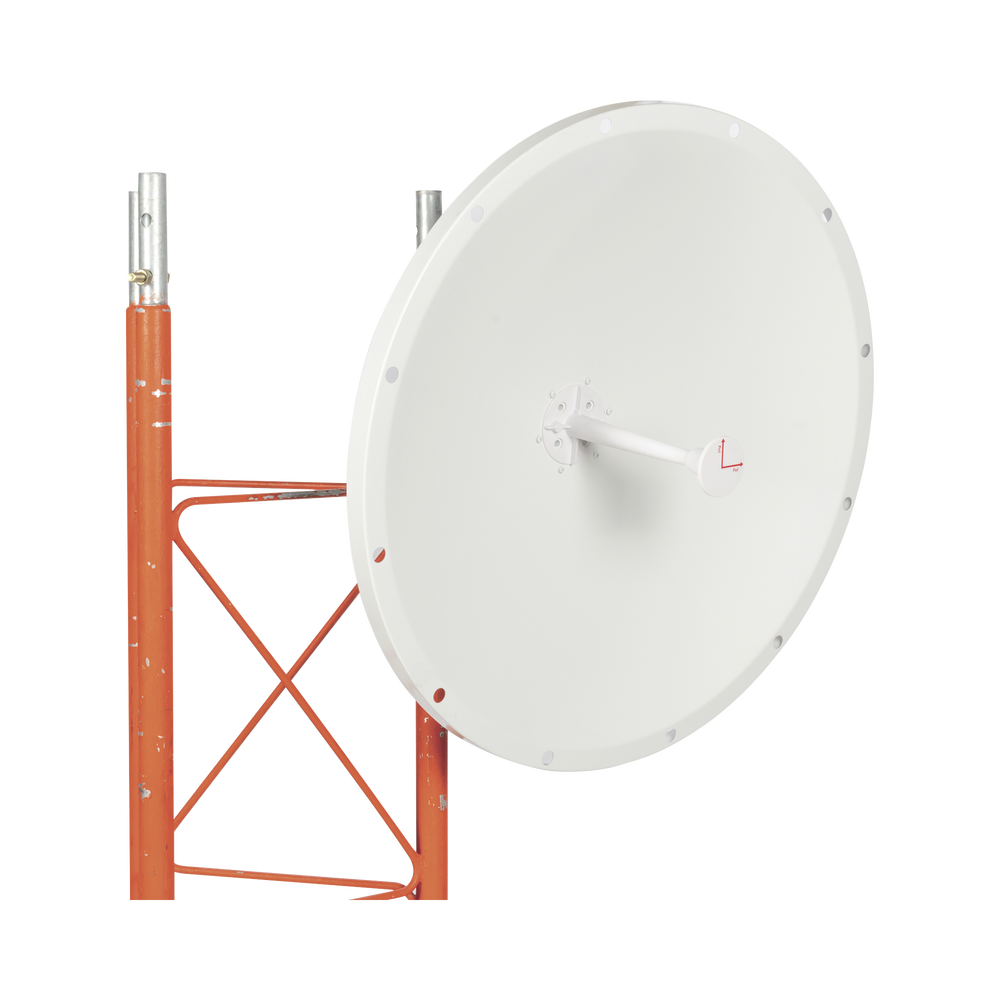

Txpro TXP-D4865-28-N Dish Antenna Extended Frequency, 4.8 - 6-5 GHz, 28 dBi, N-Male Connectors

TXPRO

Txpro TXP-D4865-28-N Parabolic Sector Antenna 28 dBi 4.8-6.5GHz

Product identifier
SKU TXP-D4865-28-N
$94.99
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

TxPRO antennas are ideal for low noise environments such as in rural or remote areas where high availability of the radio frequency spectrum is available.
These ultra-light parabolic antennas handle an extended frequency range from 4.8 to 6.5 GHz, to provide a wide variety of applications such as Internet transmission in the WISP market, video and data transmission. Thanks to its light weight the installation is very simple, fast and reduce the weight in the tower. They have integrated RF coaxial cables for direct connection in PTP access points depending on the type of connector to be used.
It connects directly to the B5c radio from Mimosa Networks!

Technical specifications
Average distance up to 9.32 mi (15 km).
Frequency range: 4.8 - 5.1 GHz / 5.1 - 6.5 GHz.
Gain: 26 ± 1 dBi / 28 ± 1 dBi.
Polarization: (V / H or ± 45 °).
Vertical beam opening: 7 °.
Horizontal beam opening: 7 °.
Gain ratio from front to back:> 28 dB.
Isolation:> 20 dB.
VSWR: ≤ 1.5: 1; max. 2.0.
Maximum power per port: 50 W.
Impedance: 50 Ω.
Dimensions: φ1.96 ft (φ 0.6m)
Weight: 5.5 lb (2.5 kg).
Color: White
Mounting on pole 1.18 - 2.75" (Diameters 30 - 70 mm).
Connectors: Includes two RF cables in N-Male connectors.
Temperature range: -67 to 158°F (-55 to 70 °C).
Humidity: <95%.
Survival to the wind: 124 mph (200 km / h).
Shipping dimensions (Height x Width x Depth): 27.5 x 28.34 x 7..87" (70 x 72 x 20 cm).

Key Features

  • Extended Frequency Range From 4.8 GHz to 6.5 GHz
  • High 28 dBi Gain for Superior Signal Strength
  • Excellent 20 dB Isolation for Reduced Interference
  • Rugged Construction Withstands Winds up to 124 mph
  • Dual Polarization Options at 90° and 45° Angles
  • Compact 24-Inch Design With Tower or Mast Mounting
