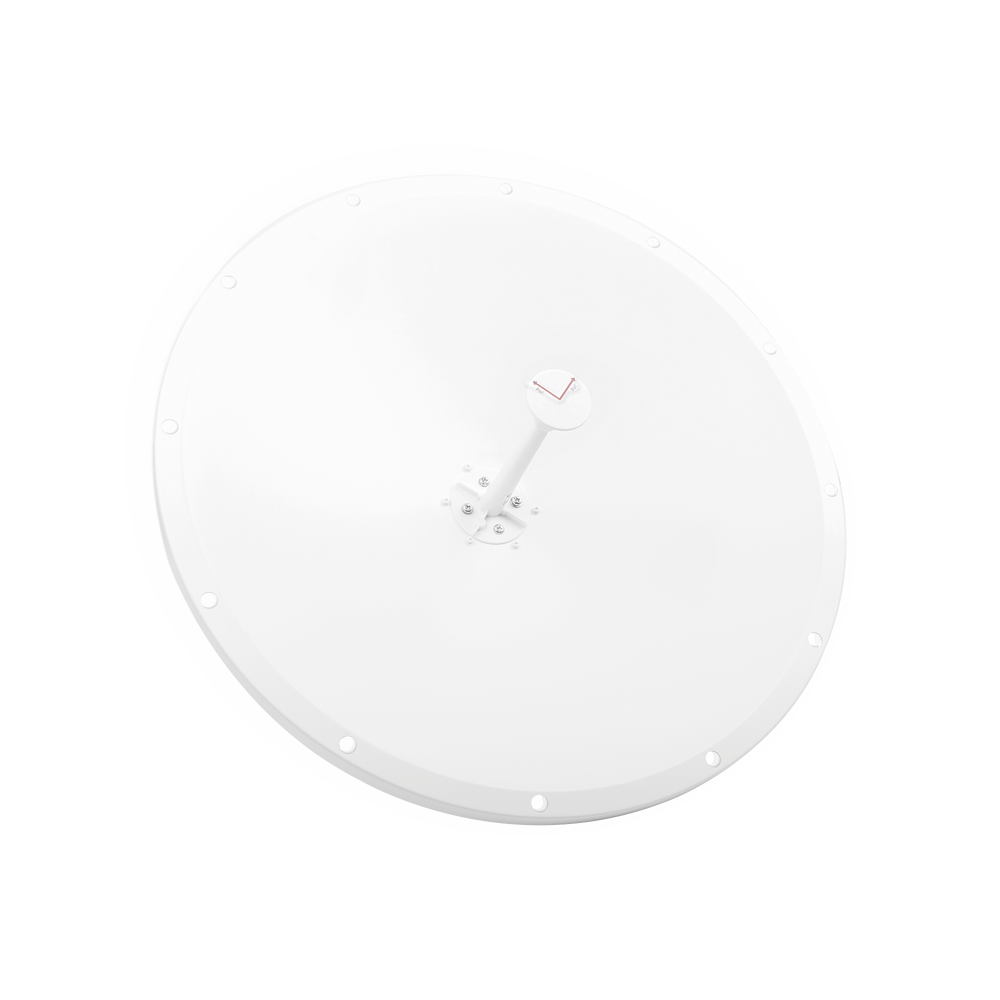

Txpro TXP-D4865-28-SMA Dish Antenna Extended Frequency, 4.8 - 6-5 GHz, 28 dBi, RP SMA Connectors

TXPRO

Txpro TXP-D4865-28-SMA 28dBi Parabolic Sector Antenna 4.8-6.5GHz SMA

Product identifier
SKU TXP-D4865-28-SMA
$81.95
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

TxPRO antennas are ideal for low noise environments such as in rural or remote areas where high availability of the radio frequency spectrum is available.

These ultra-light parabolic antennas handle an extended frequency range from 4.8 to 6.5 GHz, to provide a wide variety of applications such as Internet transmission in the WISP market, video and data transmission. Thanks to its light weight the installation is very simple, fast and reduce the weight in the tower. They have integrated RF coaxial cables for direct connection in PTP access points depending on the type of connector to be used.
Connects directly to the C5c radio from Mimosa Networks!

Technical specifications

Average distance up to 9.32 mi (15 km).
Frequency range: 4.8 - 5.1 GHz / 5.1 - 6.5 GHz.
Gain: 26 ± 1 dBi / 28 ± 1 dBi.
Polarization: (V / H or ± 45 °).
Vertical beam opening: 7 °.
Horizontal beam opening: 7 °.
Gain ratio from front to back:> 28 dB.
Isolation:> 20 dB.
VSWR: ≤ 1.5: 1; max. 2.0.
Maximum power per port: 50 W.
Impedance: 50 Ω.
Dimensions: φ 23.62" (φ 0.6m)
Weight: 5.51 lb (2.5 kg).
Color: White
Mounting on pole Diameters 1.18 - 2.75" (Diameters 30 - 70 mm).
Connectors: Includes two RF cables in SMA Male Inverse connectors.
Temperature range: -67 to 158°F (-55 to 70 °C).
Humidity: <95%.
Survival to the wind: 124 mph (200 km/h).
Shipping dimensions (Height x Width x Depth): 27.55 x 28.34 x 7.87" (70 x 72 x 20 cm).

Key Features

  • Maximum Operational Distance up to 12.4 Miles
  • Wind Resistance up to 124 mph for Harsh Environments
  • Dual Polarization Options at 90° and 45° Angles
  • Includes Two RF Jumpers With SMA Male Reverse Connectors
  • Operates From -67°F to 158°F Temperature Range
  • Lightweight 5.5 lb Design for Easy Installation
