Txpro TXPJHSMIMO 19 dBi Dual Polarization Sector Antenna 4.9-6.5 GHz
Product identifier
SKU
TXPJHSMIMO
$103.94
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Technical Specifications
Frequency range: 4.9 to 6.5 GHz
- Gain: 19 dBi
- VSWR <2.0
- Dual polarization (V/H ± 45°)
- Isolation >30 dB
- Front-to-back ratio >40 dB
- Horizontal beamwidth: 30°
- Vertical beamwidth: 30°
- Maximum power per port: 50 W
- Impedance: 50 Ω
- INCLUDES N-male to RPSMA jumpers
Mechanical Specifications
- N-Female connector
- Antenna size: 245 x 208 x 278 mm
- Weight: 1 kg
- Operating temperature: -40 to +70 °C (-32 °F to +158 °F)
- Stainless steel screws, nuts, and mounting
Noise Rejection
Fast and scalable connection, capable of avoiding internal noise between antennas, allowing a greater number of wireless links at a single point
Fully Isolated Design
Custom-designed to provide a 30° half-power beamwidth with high gain and no side lobes.

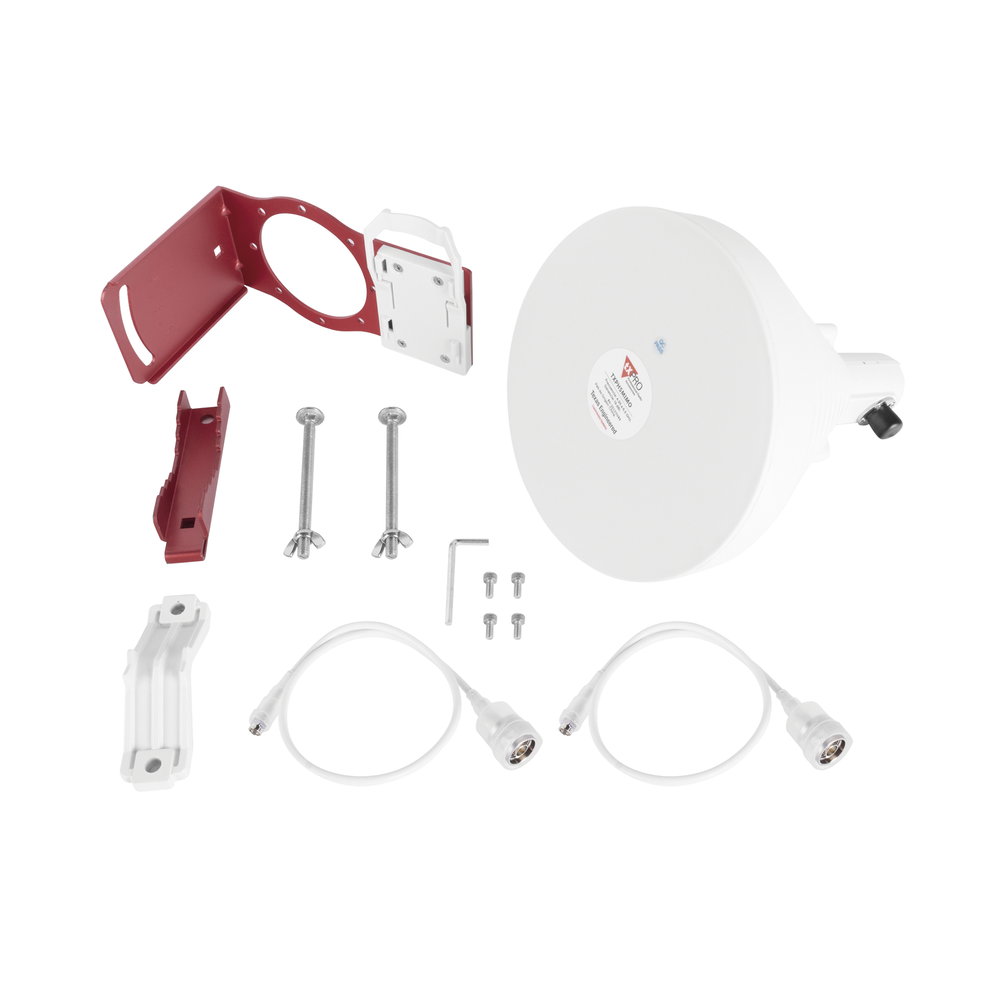

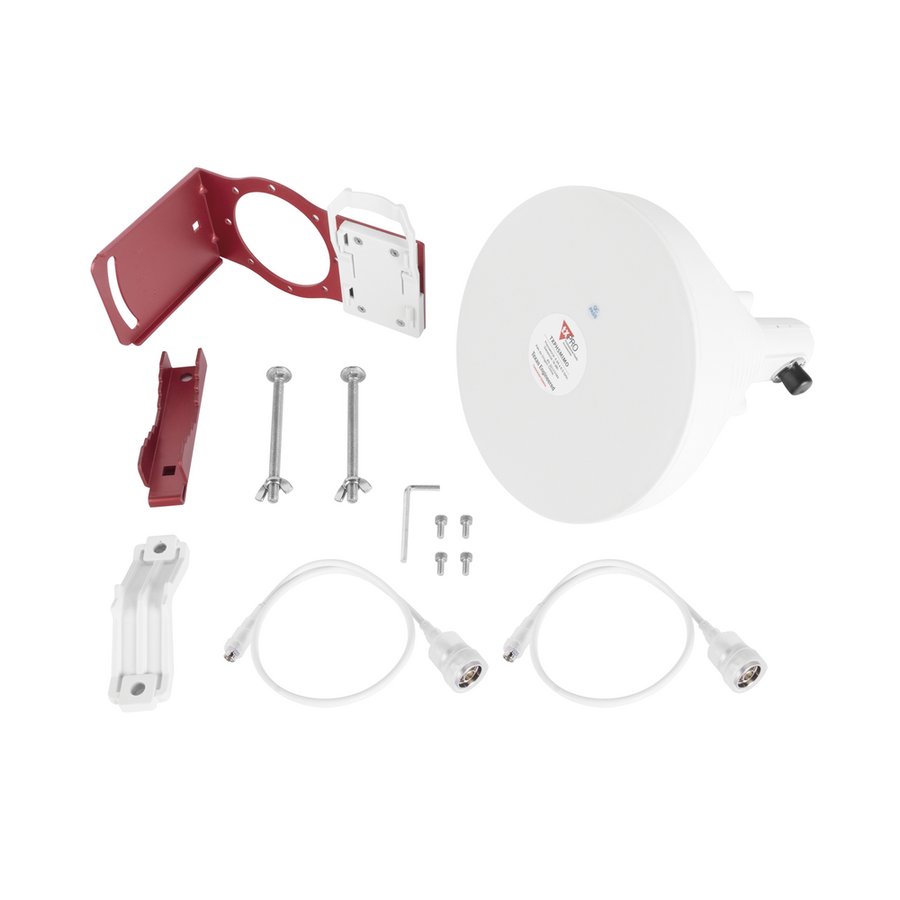

Antenna Dimensions and Contents
Key Features
- 4.9-6.5 GHz Frequency Range for Broadband Applications
- 30 dB Isolation for Superior Interference Rejection
- Dual V/H 45° Polarization for Efficient Signal Transmission
- 40 dB Front-to-Back Ratio for Excellent Directionality
- 50W Maximum Power Handling per Port for High Performance
- Weatherproof Construction With Stainless Steel Mounting Hardware
