TXPRO

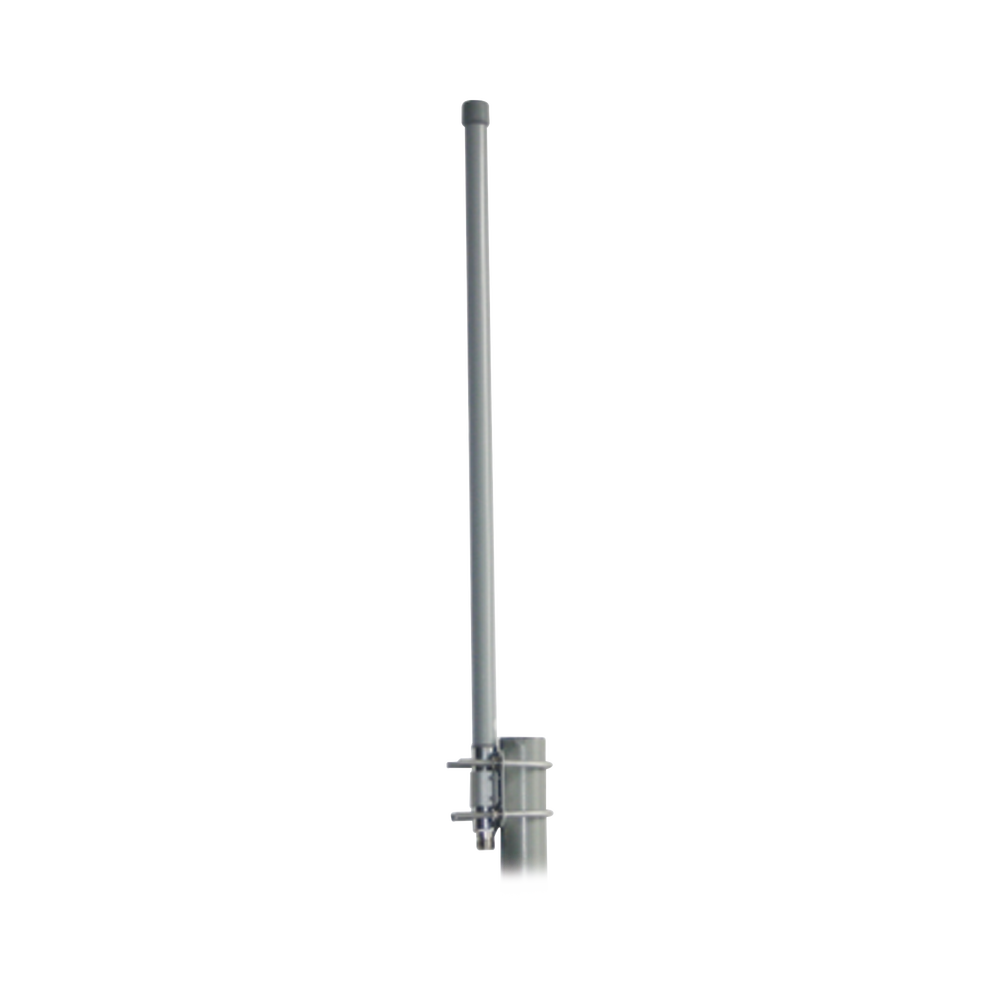

Txpro TXPO-24-Q15V 15dBi 2.4GHz Omnidirectional WiFi Antenna N-Female
Product identifier
SKU
TXPO-24-Q15V
$46.69
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Specifications
- Frequency Range 2.4 to 2.5 GHz
- Bandwidth: 100 MHz
- Gain: 15 dBi
- Horizontal Beamwidth: 360 °
- Vertical Beamwidth : 7 °
- V.S.W.R: <= 1.5
- Nominal Impedance: 50 ohm
- Polarization: Vertical
- Max Power: 100W
- Connector: N-Female
- Length: 1.5m
- Weight: 1.3 kg
- Wind resistance 60 m / s
Key Features
- 2.4-2.5 GHz Frequency Range With 100 MHz Bandwidth
- 15 dBi High Gain for Powerful Signal Transmission
- 360° Horizontal Omnidirectional Coverage Pattern
- N-Female Connector for Secure and Stable Connection
- Withstands Wind Speeds up to 134 mph
- Compact 5 ft Design for Easy Installation
