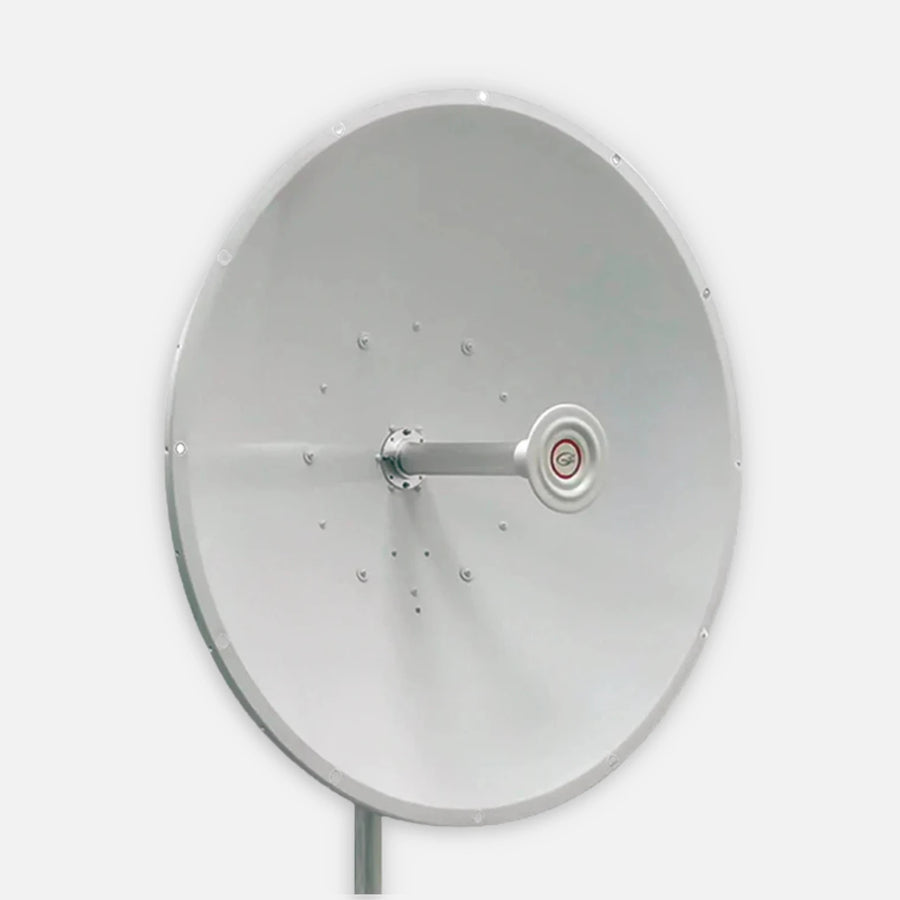

Txpro TXP4971D34DPSMA 34dBi Dual-Pol Sector Antenna 4.9-7.1GHz SMA

PRODUCT OVERVIEW

The Txpro TXP4971D34DPSMA directional antenna is engineered for long-range wireless connectivity across 4.9 GHz to 7.1 GHz frequencies, featuring 34 dBi gain, dual polarization, and highly directional beam performance for point-to-point wireless applications.

PRODUCT TYPE

Antennas (Networking)

KEY FEATURES

• Wide frequency range from 4.9 GHz to 7.1 GHz
• High 34 dBi antenna gain
• Dual polarization support with vertical and horizontal operation
• Highly directional 3° beamwidth design
• F/B ratio greater than 40 dB for side lobe suppression
• Supports long-range wireless links up to 70 km
• Wind survival rating up to 120 km/h
• Compatible with multiple wireless radio platforms
• Dual SMA-female connectors
• Designed for outdoor wireless network deployments
• Does not include jumpers

TECHNICAL SPECIFICATIONS

• Brand: Ehubamerica Txpro
• Model: TXP4971D34DPSMA
• Product Type: Directional Antenna
• Frequency Range: 4.9 GHz – 7.1 GHz
• Gain: 34 dBi
• Polarization: Vertical and Horizontal
• Vertical Beamwidth: 3°
• Horizontal Beamwidth: 3°
• Maximum Power Per Port: 100 W
• Impedance: 50 Ohms
• Front-to-Back Ratio: >40 dB
• Connector Type: 2 x SMA-Female
• Operating Temperature Range: -40°C to 70°C
• Dimensions: 103 x 108 x 27 cm
• Weight: 12 kg
• Wind Survival Rating: Up to 120 km/h
• Maximum Range: Up to 70 km

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Long-range point-to-point wireless links
• Wireless broadband infrastructure deployments
• High-capacity outdoor RF network applications
• Commercial and industrial wireless networking
