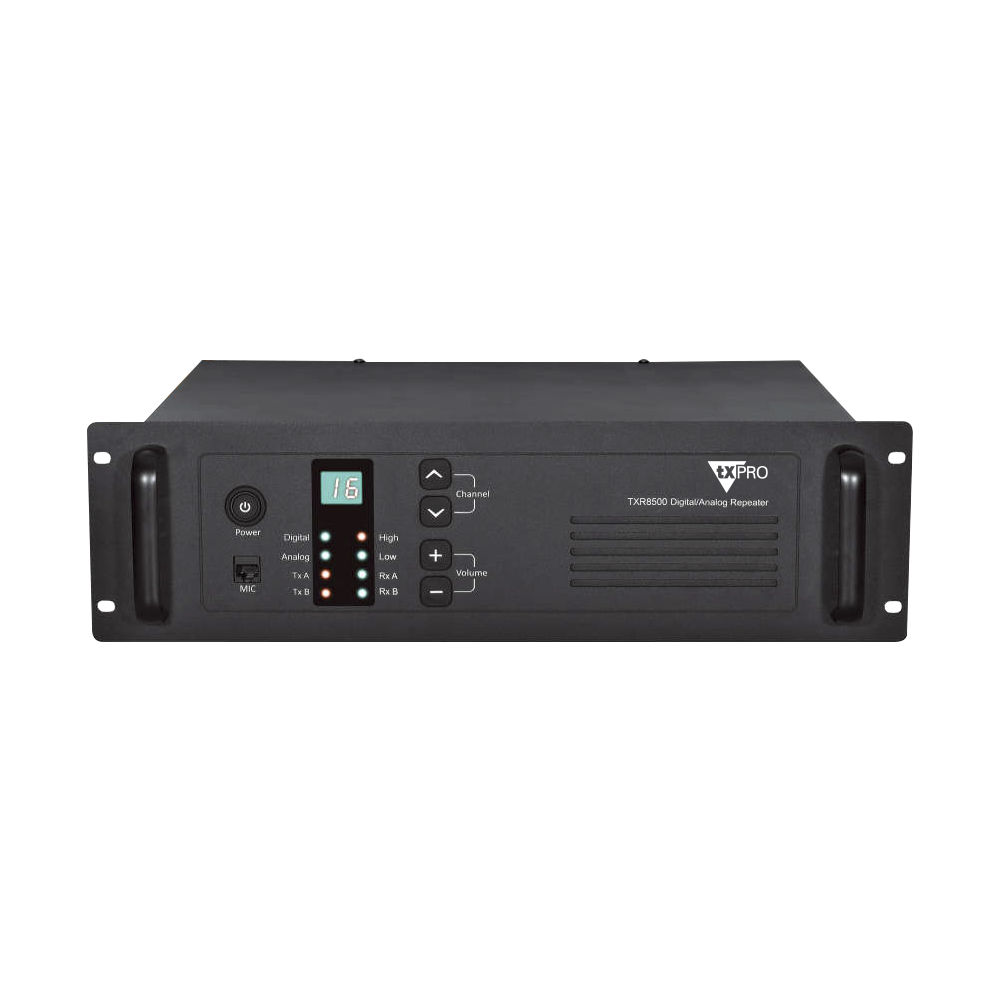

Txpro TXR8500V DMR VHF Repeater 136-174MHz 100-Channel Dual-Call

The TXR8500V repeater is a high-quality communication device designed for both digital and analog modes, with a built-in power supply that allows for direct connection to 110 VAC voltage. It boasts excellent audio quality, making communication clear and efficient. The repeater uses the DMR protocol, ensuring secure and reliable transmissions.

What sets the TXR8500V apart is its ability to handle two calls per time slot, increasing communication capacity and making it a valuable asset for businesses and organizations with high communication needs. Additionally, the repeater is easy to implement, allowing for seamless integration into existing communication systems.

In summary, the TXR8500V repeater is a reliable, efficient, and easy-to-use communication device that can handle multiple calls at once and offers excellent audio quality, making it an ideal choice for businesses and organizations seeking a high-performance repeater.

• Integrated heat sink and rear panel fan.
• Intelligent detection of analog and digital signals in a single channel.
• Share a channel with multiple groups.
• Bright and clear indicator LED.
• Automatic voltage and temperature protection.
• Improved audio quality.
• Built-in duplexer support.

Specifications:

• Model: TXR8500V
• Frequency range: 136 - 174MHz
• Number of channels: 100
• Frequency stability: 2.5ppm
• Operating temperature: - 30 to 60 ºC
• Operating voltage: 220 V/ 110 Vac ± 15%
• Dimensions: 133 x 483 x 330mm
• Weight: 16kg

Reception:

• Sensitivity Reference (Analog): 0.25 uV @ 12dB SINAD
• Adjacent channel selectivity: "60 d8@ 12.5 kHz / 70 d3@ 25 kHZ"
• Rated audio output: +1 ~ -3dB
• FM noise: >45 dB@25 kHz / ≥4 dB kHz @12.5 kH

Transmission:

• Output power: 50W
• Antenna impedance: 50Ω
• FM noise: 45 dB@25 kHz / 40 dB@12.5 kHz
• Modulation distortion: < 5%
