Tycon ENC-AL-21x14x15 Outdoor Enclosure 200Ah Battery Shelf DIN Rail

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon ENC-AL-21x14x15 Outdoor Aluminum Enclosure 200Ah Battery Shelf DIN Rail

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

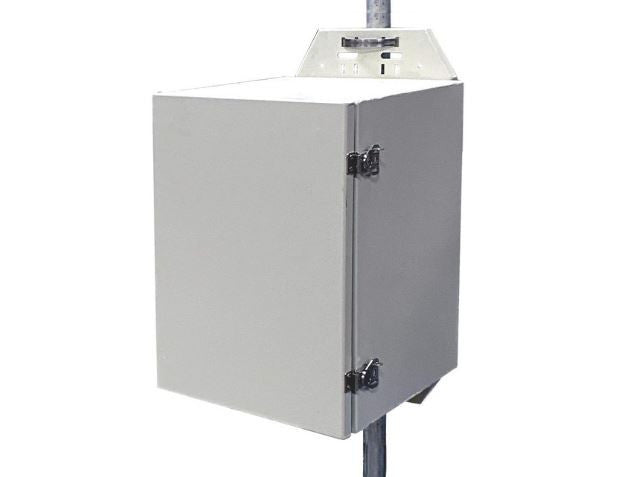

Tycon ENC-AL-21x14x15 is a NEMA 4X/IP65 powder-coated aluminum outdoor enclosure with two battery shelves supporting up to 200Ah, integrated DIN rail mounting, ventilation, and wall or pole mounting.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Weatherproof NEMA 4X / IP65 outdoor enclosure
• Powder-coated aluminum construction
• UV- and corrosion-resistant design
• Two internal battery shelves support up to 200Ah of battery capacity
• Designed to accommodate up to four batteries
• Integrated short DIN rails on the left and right interior walls
• Additional DIN rail mounting locations behind the battery shelf and on the inside door
• DIN rail mounting brackets can also support a metal or wooden equipment panel
• Passive ventilation with thermostatically controlled ventilation system
• Ventilation system operates from 12-24VDC
• Thermostatic ventilation activates when interior temperature exceeds 45°C
• Gasket-sealed enclosure
• Two stainless steel draw latches
• Lockable with user-supplied padlocks up to 9mm (0.35 in.) diameter
• Three RJ45 feedthrough cable glands for weatherproof cable entry and exit
• Removable gasketed bottom access plate
• Wall or pole mounting
• Included U-bolt mounting hardware supports poles up to 4 inches in diameter
• Stainless steel hardware

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model: ENC-AL-21x14x15
• Enclosure Type: Powder-coated aluminum
• Weatherproof Rating: NEMA 4X / IP65
• Battery Capacity Support: Up to 200Ah
• Battery Shelves: 2
• Battery Accommodation: Up to 4 batteries
• Interior Mounts: Four 4-inch DIN rails and four DIN rail mounts
• Ventilation: Passive and thermostatically controlled
• Ventilation Power: 12-24VDC
• Thermostatic Activation Temperature: Above 45°C
• Cable Feedthroughs: 3 x RJ45 feedthrough cable glands
• Enclosure Mounting: Wall or pole
• Pole Mounting: Included U-bolts support poles up to 4 in. diameter
• External Dimensions: 21 x 14 x 15 in. (533 x 356 x 381mm)
• Weight: 26 lb. (12kg)
• Hardware Material: Stainless steel
• Lock Accommodation: User-supplied padlock up to 9mm (0.35 in.) diameter
• Manufacturer Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Wireless base stations and clients
• Wireless bridges and repeaters
• Surveillance cameras
• Remote sensors
• Outdoor utilities
• Solar and wind power systems
