Tycon ENC-PL-11x7x6 11x7x6 Polycarbonate Outdoor Enclosure NEMA 4X IP65
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon ENC-PL-11x7x6 Outdoor Polycarbonate Enclosure NEMA 4X IP65
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

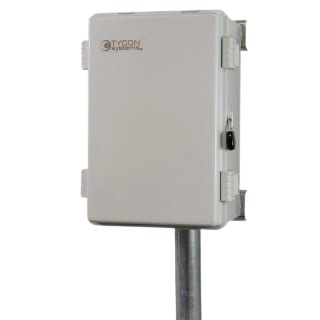

Tycon ENC-PL-11x7x6 is a UV-protected polycarbonate outdoor enclosure with NEMA 4X/IP65 weatherproofing, gasket-sealed hinged door, combination lock, perforated backplate, and wall or pole mounting hardware.
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• NEMA 4X / IP65 weatherproof outdoor enclosure
• UV-protected polycarbonate construction
• Lightweight, sturdy, and RF-transparent enclosure design
• Hinged door with gasket seal
• Toggle clamp door closures
• Lockable design with combination lock included

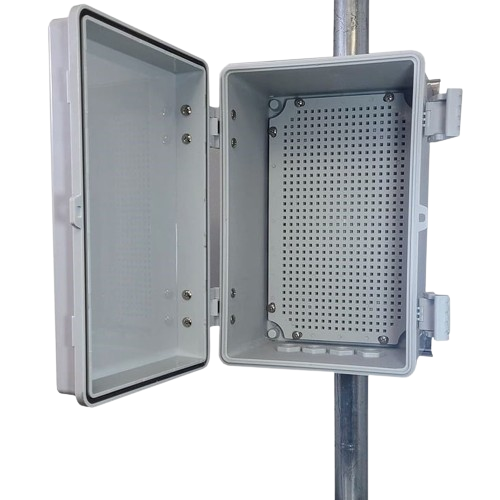

• Universal perforated ABS backplate for flexible interior equipment mounting
• Four 20mm feedthrough holes
• Four gasketed weatherproof 20mm screw plugs included
• Wall or pole mountable with included hardware
• Two stainless steel hose clamps included for pole mounting
• Accommodates poles up to 4 in. diameter with included pole mounting hardware
• Corrosion-resistant hardware
• Feedthrough holes support appropriate cable glands or conduit fittings
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: ENC-PL-11x7x6
• Product Type: Outdoor Polycarbonate Enclosure
• Enclosure Material: UV-Protected Polycarbonate
• Weatherproofing: NEMA 4X / IP65
• Mounting: Wall or pole mount with included hardware
• Interior Mounting Plate: Perforated ABS plate
• Backplate Grid: 7.5 x 7.5 mm
• Recommended Backplate Screw: #8 x 3/8 in. / 4 x 9.5 mm sheet metal screw
• Feedthrough Holes: Qty. 4, 20 mm / 0.787 in. diameter
• Waterproof Hole Plugs: Qty. 4, 20 mm gasketed screw plugs
• Pole Mount Hardware: Qty. 2 stainless steel hose clamps
• External Dimensions: 12 x 8.5 x 7 in. / 305 x 216 x 178 mm
• Internal Dimensions: 11 x 7 x 6 in. / 279 x 178 x 152 mm
• Weight: 4 lb. / 1.8 kg
• Manufacturer Warranty: 3 years
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Wireless base stations and client devices
• Wireless bridges and repeaters
• Outdoor utilities
• Surveillance cameras
• Remote sensors
• Solar and wind power applications
• Outdoor housing for compatible electronic equipment
