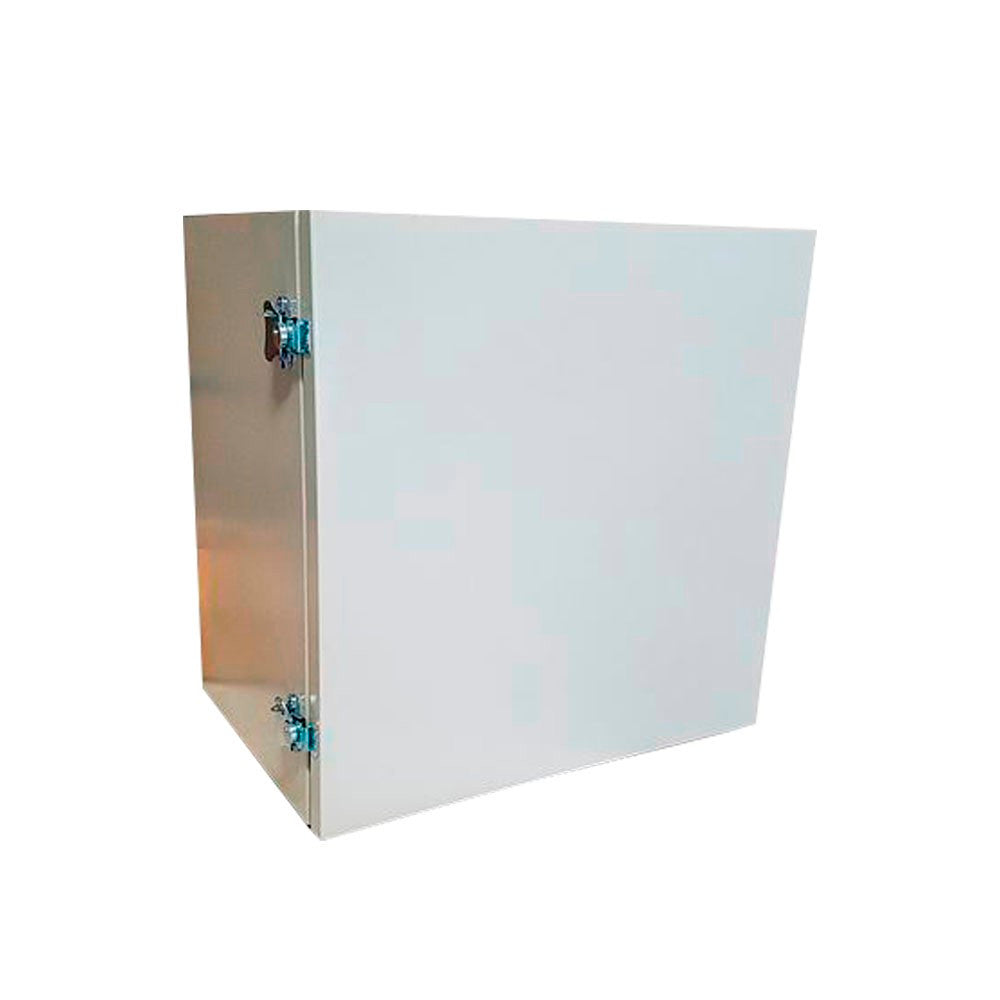

Tycon ENC-STL-24x24x16 inch Large Steel Locking Outdoor Enclosure. pole/wall mount

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon ENC-STL-24x24x16 Steel Outdoor Enclosure NEMA 4X IP65 Pole Wall Mount

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon ENC-STL-24x24x16 powder-coated steel outdoor enclosure with NEMA 4X/IP65 weatherproofing, lockable design, thermostatic ventilation, 19-inch rack shelf, DIN rail mounting, and wall or pole mounting.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒

• NEMA 4X / IP65 weatherproof outdoor enclosure
• Powder-coated steel construction
• UV-resistant and corrosion-resistant design
• Gasket-sealed enclosure
• Lockable using user-supplied padlocks
• Wall or pole mountable with mounting hardware included
• Heavy-duty pole mounting supports poles up to 4 inches in diameter using included U-bolts

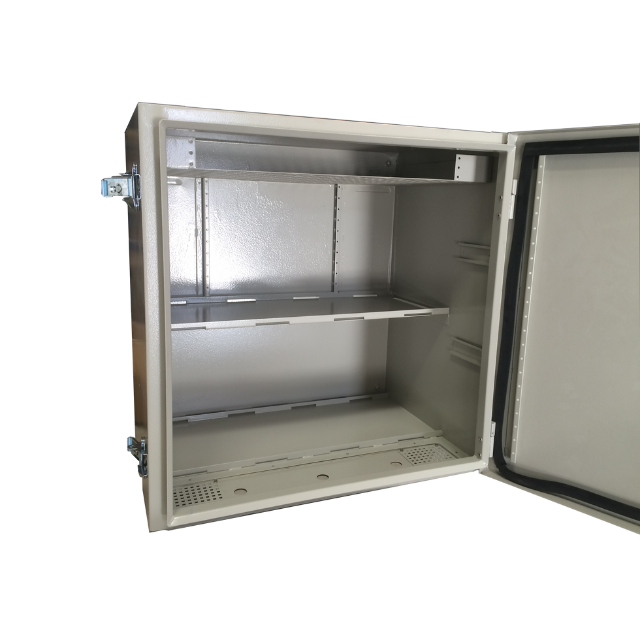

• 1U 19-inch rackmount shelf with 13.9-inch depth
• Two integrated battery shelves
• Battery shelves designed to hold up to 400Ah of sealed lead-acid batteries
• Integrated DIN rails on the inside left and right sides
• Additional DIN rail mounting provisions on the door and behind the middle shelf
• (3) RJ45 feedthrough cable glands for weatherproof cable entry and exit
• Removable gasketed bottom access plate
• Passive ventilation
• Thermostatically controlled ventilation system
• Ventilation system operates from 12–24VDC and activates when interior temperature exceeds 45°C
• Stainless steel hardware

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Manufacturer: Tycon
• Model / Part Number: ENC-STL-24x24x16
• Enclosure Type: Powder-coated steel
• Weatherproofing: NEMA 4X / IP65
• Mounting: Wall or pole mount with U-bolt or hose clamps
• External Dimensions: 24.1 x 24.1 x 17.5 in (612.5 x 612.5 x 445.6 mm)
• Internal Dimensions: 23.9 x 23.9 x 16.1 in (608 x 608 x 409.5 mm)
• Interior Rack Mount: 1U 19-inch rackmount, 13.9-inch depth
• DIN Rails: (4) 4-inch DIN rails
• DIN Rail Mounts: (4)
• Battery Shelves: (2)
• Battery Shelf Space: 23.9 x 11 x 9.5 in (608 x 279 x 241 mm)
• Battery Capacity: Up to 400Ah of sealed lead-acid batteries
• Cable Feedthroughs: (3) RJ45 feedthrough cable glands
• Ventilation: Passive and thermostatically controlled
• Ventilation Power: 12–24VDC
• Ventilation Activation Temperature: Above 45°C
• Door Closures: (2) stainless steel draw latches
• Maximum Padlock Diameter: 9 mm (0.35 in)
• Weight: 75 lb (34 kg)
• Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Wireless base stations and client equipment
• Wireless bridges and repeaters
• Surveillance cameras
• Remote sensors
• Outdoor utilities
• Solar and wind power systems
• Outdoor housing for electronics requiring a sturdy weatherproof enclosure
