Tycon ENC-SW-8x5 Weatherproof PoE Switch Enclosure IP65 Wall/Pole Mount

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon ENC-SW-8x5 Weatherproof PoE Switch Enclosure NEMA 4X IP65 Wall Pole Mount

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon ENC-SW-8x5 is a NEMA 4X/IP65 outdoor enclosure designed for Tycon TP-SW 5-port and 8-port PoE switches, with UV-resistant construction, six cable feedthroughs, and wall or pole mounting.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Designed for Tycon TP-SW series PoE switches
• Accommodates compatible 5-port and 8-port TP-SW switches
• NEMA 4X / IP65 weatherproof rating
• Designed for outdoor installations
• UV-resistant construction
• Impact-resistant plastic enclosure
• Six cable feedthroughs
• Feedthroughs accommodate up to 12 CAT5, CAT6, or power cables
• Supports wall mounting
• Supports pole mounting
• Designed for locating a compatible PoE switch on a tower or antenna mast near connected equipment
• Wide temperature rating from -50°C to +85°C

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: ENC-SW-8x5
• Product Type: Outdoor PoE Switch Enclosure
• Weatherproof Rating: NEMA 4X / IP65
• Enclosure Material: UV- and impact-resistant plastic
• Cable Feedthroughs: 6
• Cable Capacity: Up to 12 CAT5, CAT6, or power cables
• Mounting: Wall or pole
• Temperature Rating: -50°C to +85°C / -58°F to +185°F
• Humidity: 0% to 100% RH
• Inside Dimensions: 222 x 133 x 45 mm / 8.75 x 5.25 x 1.75 in.

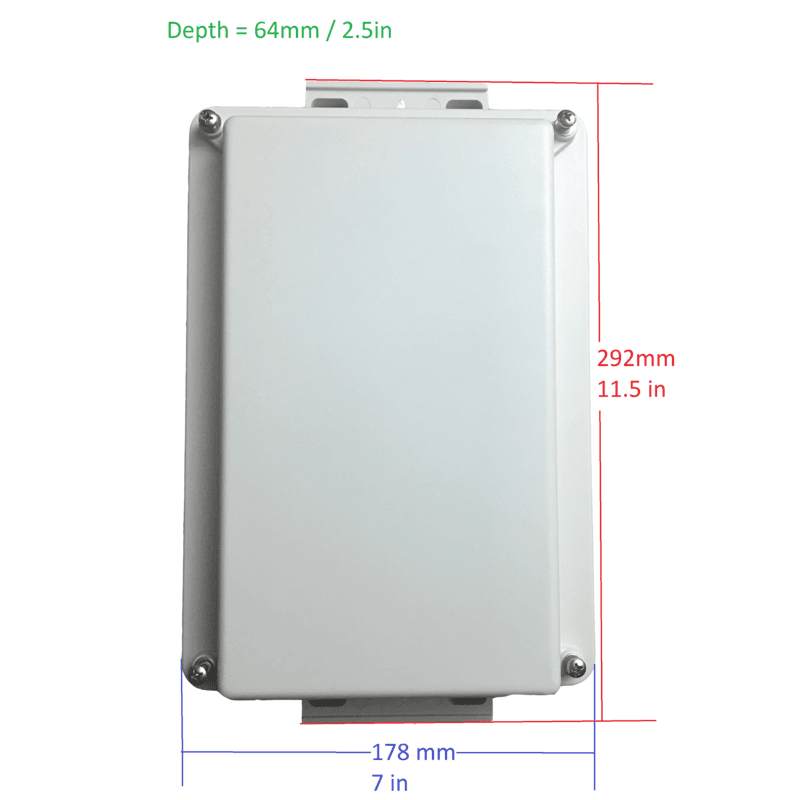

• Outside Dimensions: 292 x 178 x 64 mm / 11.5 x 7 x 2.5 in.
• Weight: 567 g / 1.25 lb.
• Manufacturer Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Tycon TP-SW series PoE switches
• Compatible Tycon 5-port and 8-port PoE switches
• Tower and antenna mast installations
• Outdoor PoE switch installations
