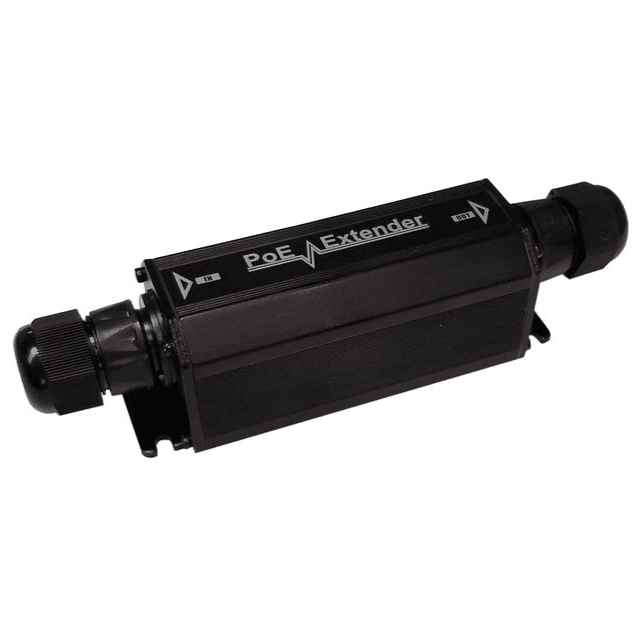

Tycon POE-EXT-GD-HP Gigabit PoE Extender 802.3af/at IP66

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon POE-EXT-GD-HP Gigabit PoE Extender 802.3af/at Outdoor IP66

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon POE-EXT-GD-HP is a shielded Gigabit PoE extender supporting IEEE 802.3af/at and 44–57V passive PoE input. Extends Ethernet and PoE an additional 100m with up to 25W output and an IP66 outdoor enclosure.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• IEEE 802.3af and 802.3at compatible
• Accepts 44V to 57V passive PoE input
• Supports 10/100/1000Mb Gigabit Ethernet
• Extends Ethernet and PoE an additional 100m / 328 ft
• Multiple units can extend Ethernet and PoE up to 300m over CAT5/CAT6 cable
• Powered directly by PoE with no additional power source required
• Accepts Mode A PoE on pins 1,2,3,6
• Accepts Mode B PoE on pins 4,5,7,8
• IEEE 802.3af/at Class 4 PoE output
• Maximum PoE output power up to 25W
• Automatic link speed, duplex, and crossover
• Shielded Gigabit Ethernet connections
• Rugged powder-coated aluminum enclosure
• IP66 weatherproof rating
• Designed for outdoor operation
• Operating temperature range of -25°C to +55°C

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: POE-EXT-GD-HP
• Product Type: Gigabit PoE Extender
• PoE Input: IEEE 802.3af / 802.3at / 44V to 57V Passive PoE
• PoE Input Pinout: Pins 1,2 (-), 3,6 (+) or pins 7,8 (-), 4,5 (+)
• PoE Output: IEEE 802.3af or 802.3at Class 4
• PoE Output Pinout: Pins 1,2 (+), 3,6 (-)
• Maximum PoE Output Power: 25W
• Data Speeds: 10/100/1000Mb
• Extension Distance Per Unit: 100m / 328 ft
• Maximum Extension Using Multiple Units: Up to 300m over CAT5/CAT6
• Self-Consumption Power: 2.0W typical
• Enclosure Material: Powder-coated aluminum
• Environmental Rating: IP66
• Operating Temperature: -25°C to +55°C / -13°F to +131°F
• Operating Humidity: 0% to 100% RH
• Dimensions: 185 x 45 x 45 mm / 7.3 x 1.8 x 1.8 in.
• Weight: 240 g / 8.5 oz.
• Manufacturer Warranty: 2 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Wireless equipment
• IP telephone systems
• Security applications
• Sensor equipment
• Outdoor Ethernet and PoE extension applications
