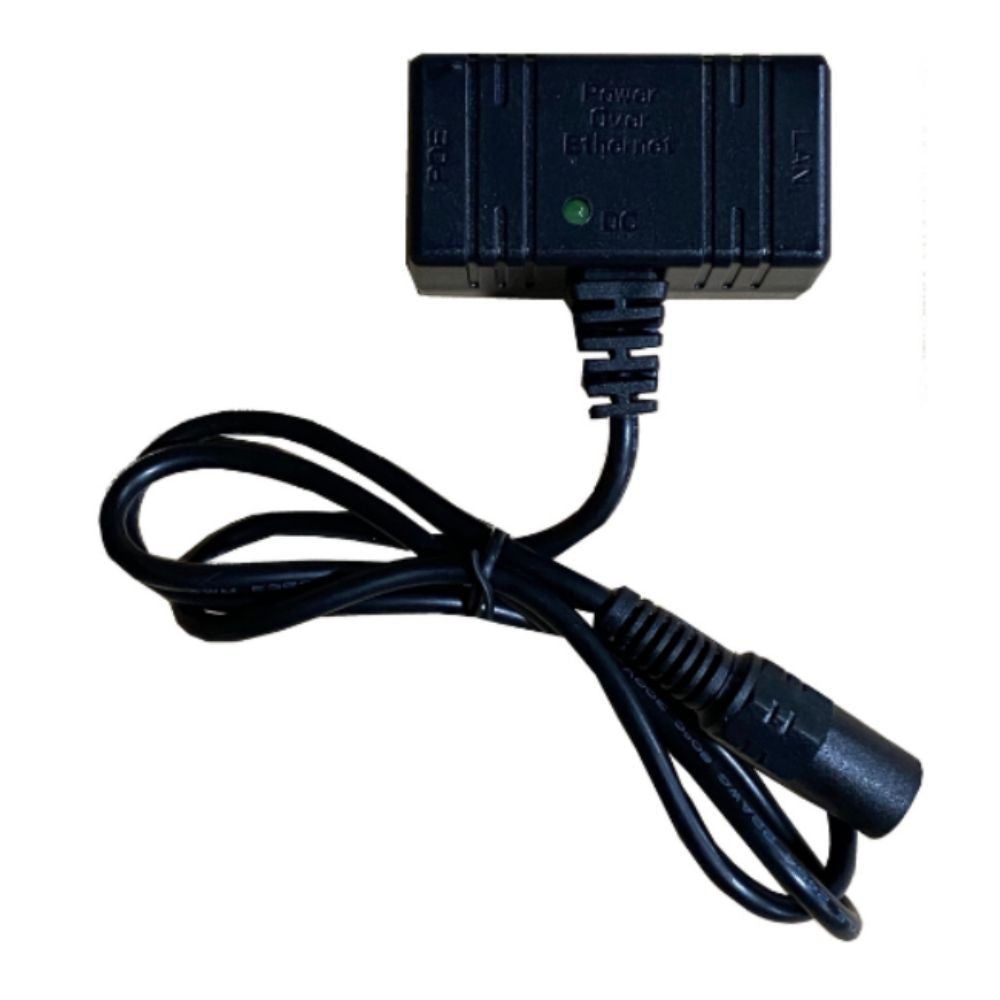

Tycon POE-INJ-1000-S Gigabit Passive PoE Injector with LED Indicators

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon POE-INJ-1000-S Gigabit Passive PoE Injector LED Shielded

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon POE-INJ-1000-S shielded passive PoE injector supports Gigabit Ethernet, 5–58VDC input, up to 3A PoE current, and power delivery on pins 4,5(+) and 7,8(-), with a power-on LED indicator.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Shielded passive Power over Ethernet injector
• Supports 10/100/1000Mb Ethernet data speeds
• DC input voltage range of 5V to 58VDC
• Maximum PoE current of 3A
• Power supplied on Ethernet pins 4,5(+) and 7,8(-)
• Power-on LED indicator
• Compact shielded design

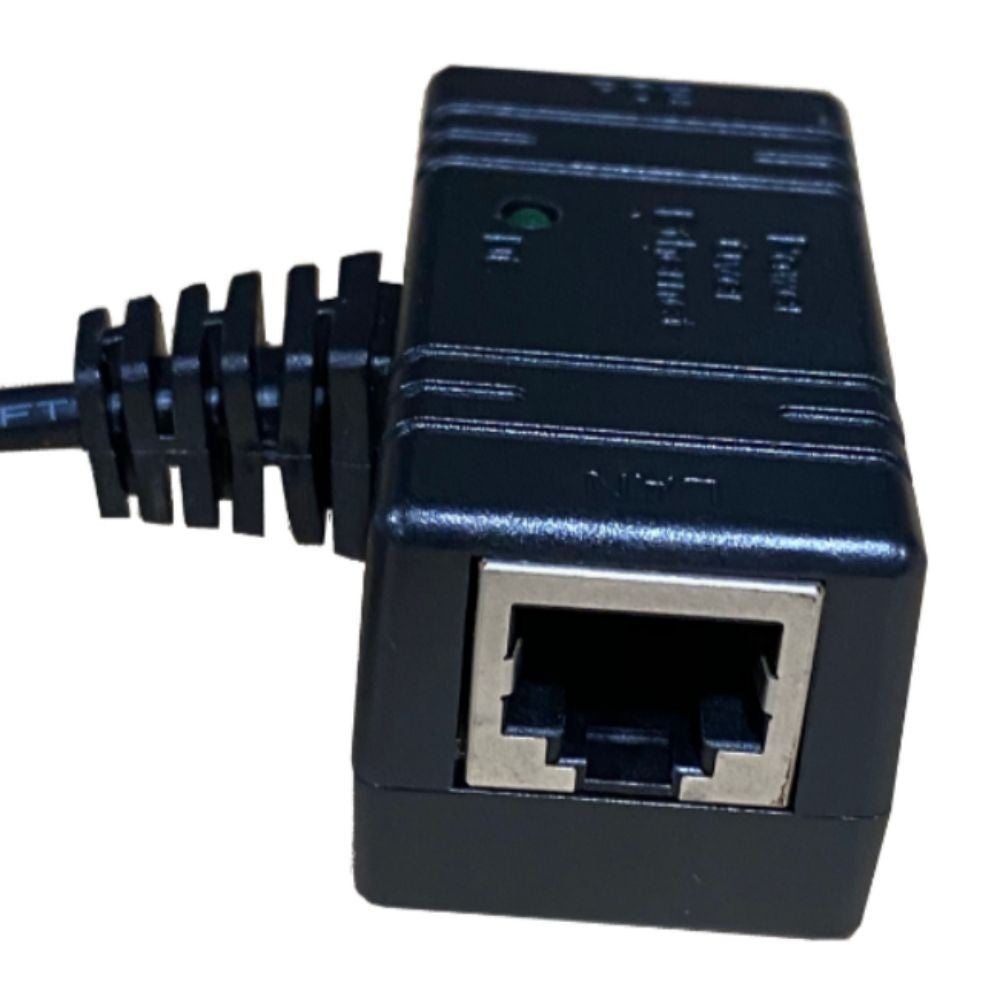

• Shielded RJ45 connectors provide continuous shielding from power source to destination device
• Shrouded DC connector designed for a reliable, dust-resistant connection
• Connector shroud adds mechanical friction to help prevent accidental disconnection
• 610 mm / 24 in. 22 AWG DC cable

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: POE-INJ-1000-S
• Product Type: Gigabit Passive PoE Injector
• DC Input Voltage Range: 5V to 58VDC
• Data Speeds: 10/100/1000Mb
• Maximum PoE Current: 3A
• PoE Power Pins: 4,5(+) and 7,8(-)
• DC Connector: 2.1 x 5.5 mm, shrouded
• DC Cable Length: 24 in. / 610 mm
• Wire Gauge: 22 AWG
• Operating Temperature: -40°F to +185°F / -40°C to +85°C
• Operating Humidity: 0% to 99% RH
• Dimensions: 1.9 x 0.95 x 0.95 in. / 48 x 24 x 24 mm
• Weight: 1.5 oz. / 43 g
• Manufacturer Warranty: 3-year limited warranty

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Wireless applications
• Telephone systems
• Security applications
• Network applications
