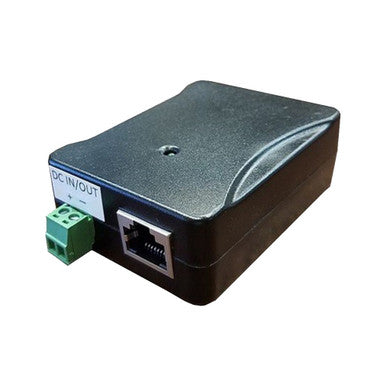

Tycon POE-INJ-1000-WT Gigabit PoE Injector 130W Shielded 4-Pair

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon POE-INJ-1000-WT Gigabit PoE Injector 130W Shielded 4-Pair

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon POE-INJ-1000-WT shielded passive Gigabit PoE injector supplies power across all four Ethernet pairs, supports 10/100/1000Mb data, 5–58VDC input, and up to 130W output.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• High-power shielded passive PoE design using all four Ethernet pairs
• Supports 10/100/1000Mb Ethernet data speeds
• 5VDC to 58VDC input voltage range
• Maximum PoE current of 2.25A
• Supports up to 130W over a single CAT5/6 cable
• Supports cable runs up to 100 m
• Removable wire terminal DC connector
• Maximum DC connector wire size of 14 AWG
• Shielded RJ45 connectors provide continuous shielding from power source to destination device
• Power-on LED indicator
• POE-INJ-1000-WT pinout: 1,2,4,5 (V+) and 3,6,7,8 (V-)
• Designed specifically for devices compatible with 8-wire passive PoE

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: POE-INJ-1000-WT
• Product Type: Gigabit High-Power Passive PoE Injector
• DC Input Voltage Range: 5V to 58VDC
• Data Speeds: 10/100/1000Mb
• Maximum PoE Current: 2.25A
• Maximum Power: 130W
• Power Delivery: All 8 Ethernet pins / 4 pairs
• RJ45 PoE Pinout: Pins 1,2,4,5 (V+); pins 3,6,7,8 (V-)
• DC Connector: Removable wire terminal connector
• Maximum Wire Size: 14 AWG
• Operating Temperature: -40°F to +185°F / -40°C to +85°C
• Operating Humidity: 0% to 99% RH
• Dimensions: 2.8 x 2.1 x 0.95 in. / 71 x 53 x 24 mm
• Weight: 2.3 oz. / 65 g
• Manufacturer Warranty: 3 years
• Compatibility Requirement: Use only with devices compatible with 8-wire passive PoE; incompatible devices may be damaged

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Wireless equipment
• Ubiquiti airFiber antennas
• Security applications
• HD PTZ cameras
