Tycon POE-INJ-LED-S Passive PoE Injector LED Indicators 12-24V CAT5e

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

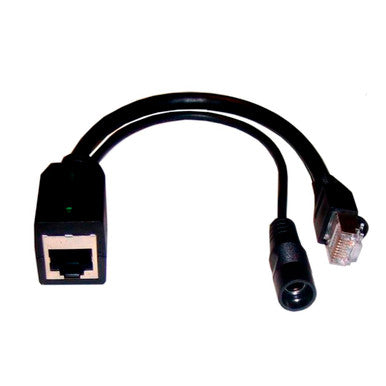

Tycon POE-INJ-LED-S Passive PoE Injector 12-24V LED Shielded CAT5e

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon POE-INJ-LED-S passive PoE injector features power and current indicator LEDs, shielded CAT5e cabling, and a shrouded DC jack. The LED indicators are designed for 12V to 24V DC input operation.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Passive PoE injector with power-on and current indicator LEDs
• Power LED indicates 12V to 24V DC power is being supplied through the DC jack
• Current LED indicates a PoE device is connected at the end of the Ethernet cable
• Current indication supports Ethernet cable runs up to 100 m / 330 ft
• Shielded CAT5e cable and connectors provide added protection against surges and interference
• CAT5-rated RJ45 jack with gold-plated contacts
• Supports 10/100 Mbps Ethernet data connections
• Shrouded DC jack for improved safety
• UL-rated materials
• Meets RoHS requirements

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: POE-INJ-LED-S
• Product Type: Passive PoE Injector
• LED Input Operating Range: 12V to 24V DC
• Voltage Rating: 60VDC maximum
• RJ45 Jack: Shielded CAT5 rated with gold-plated contacts
• RJ45 Power Pins: 4,5(+) and 7,8(-)
• DC Jack: 5.5 x 2.1 mm, shrouded
• DC Wire Size: 28 AWG x 4
• CAT5 Wire Size: 24 AWG x 8, shielded
• Cable Length: 165 mm / 6.5 in.
• Total Length: 254 mm / 10 in.
• Weight: 31 g / 1.1 oz.
• Operating Temperature: -40°C to +80°C / -40°F to +176°F
• Materials: UL-rated materials
• Compliance: Meets RoHS requirements
• Manufacturer Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Wireless access points and client devices
• IP phone systems
• Security camera systems
