Tycon POE-PowerTap PoE Injector Voltage Monitor 2A Wire Terminal

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon POE-PowerTap PoE Voltage Extractor Inserter 2A 12AWG Wire Terminal

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

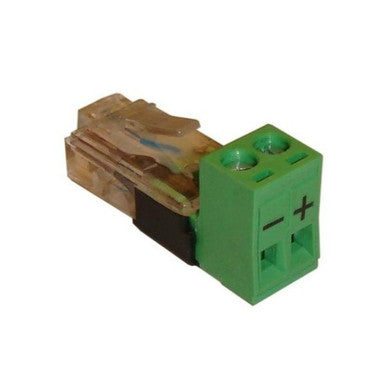

Tycon POE-PowerTap is a compact PoE voltage extractor/inserter for monitoring or testing PoE voltage, extracting power from a PoE source onto wires, or injecting PoE voltage onto CAT5 cable. Rated for 2A maximum current.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Allows monitoring and testing of PoE voltage
• Extracts PoE voltage from a PoE switch or injector
• Provides access to extracted PoE voltage through a wire terminal connection
• Supports injecting PoE voltage onto CAT5 cable
• Maximum current rating of 2A
• Wire terminal accepts up to 12 AWG wire
• Power connections utilize RJ45 pins 4, 5, 7, and 8
• Compact 32 x 13 x 15 mm form factor
• High-temperature operation
• -40°C to +70°C operating temperature range

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model / MFR Part Number: POE-PowerTap
• Product Type: PoE Voltage Extractor / Inserter
• Maximum Current: 2A
• Maximum Wire Size: 12 AWG
• RJ45 Pin 1: No Connection
• RJ45 Pin 2: No Connection
• RJ45 Pin 3: No Connection
• RJ45 Pin 4: Power
• RJ45 Pin 5: Power
• RJ45 Pin 6: No Connection
• RJ45 Pin 7: Power
• RJ45 Pin 8: Power
• Operating Temperature: -40°C to +70°C / -40°F to +158°F
• Operating Humidity: 5% to 90% RH, Non-Condensing
• Storage Temperature: -40°C to +80°C / -40°F to +176°F
• Dimensions: 32 x 13 x 15 mm / 1.25 x 0.5 x 0.6 in.
• Weight: 5 g / 0.2 oz.
• Manufacturer Warranty: 3 Years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Monitoring or testing PoE voltage
• Extracting PoE voltage from a PoE switch or injector
• Injecting PoE voltage onto CAT5 cable
