Tycon POE-PowerTap-BT 802.3bt 90W PoE Power Splitter

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

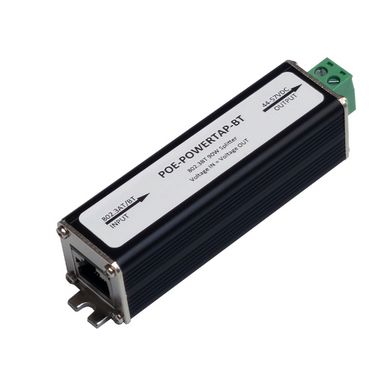

Tycon POE-POWERTAP-BT 802.3bt 90W PoE Power Splitter

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon POE-POWERTAP-BT power-only PoE splitter converts 802.3af/at/bt or 48V passive PoE input to 44–57VDC on a wire terminal, with up to 90W output and no data output.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
PoE & Power Injectors

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• 802.3bt 90W power-only PoE splitter
• Compatible with IEEE 802.3af, 802.3at, and 802.3bt PoE
• Supports 2-pair or 4-pair 48V passive PoE input
• PoE, PoE+, and PoE++ compatible
• Maximum 90W output power through wire terminal
• Full metal housing with LED power/status indicator
• Built-in electrical surge and overload protection
• Integral mounting tabs
• Industrial operating temperature range of -40°C to +70°C
• Designed to provide DC power output without data output
• Suitable for indoor use or outdoor installation inside a weatherproof enclosure

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: POE-POWERTAP-BT
• Input PoE Voltage: 44VDC to 57VDC for 802.3af/at/bt, or 2-pair / 4-pair 48V passive PoE
• Output Voltage: 44VDC to 57VDC
• Voltage Output: Equal to input voltage
• Efficiency: 98.4%
• Maximum Load: 90W maximum, 100µF maximum
• Surge Protection: IEC 61000-4-2 ESD, 30kV air / 30kV contact
• MTBF: 961,723 hours per MIL-HDBK-217F at 70°C
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Operating Humidity: 0% to 95% non-condensing
• Dimensions: 3.65 x 1 x 1 in. / 93 x 25.4 x 25.4 mm
• Weight: 2.25 oz / 64 g
• Input Connector: Shielded RJ45 jack
• Output Connector: Wire terminal
• Maximum Output Wire Size: 12 AWG
• Data Output: None
• Manufacturer Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Remotely powering non-PoE input DC devices
• Managed PoE switches
• LED lighting
• Sensors
• Relays
