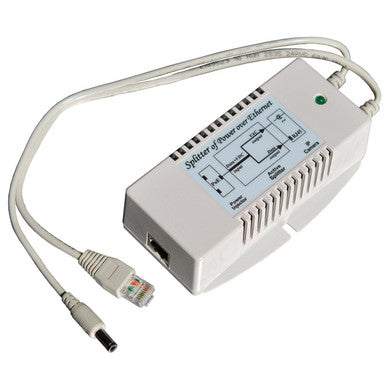

Tycon POE-SPLT-2424AC-G 24VAC 40W PoE Splitter Gigabit Passive
Product identifier
SKU
POE-SPLT-2424AC-G
$114.06
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS
The POE-SPLT-2424AC-G Active splitters are unique Power over Ethernet adapters which convert a DC PoE input voltage to regulated 24VAC output. The output is provided on a 5.5/2.1mm DC Barrel Connector. Compatible with Gigabit Ethernet, inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage. Requires a 4pair PoE input to achieve 40W output. Output is 60Hz Square Wave.
Features
- Converts 24V Passive PoE input to 24VAC 40W output
- Runs cameras and other 24VAC devices from 24VDC PoE and battery systems
- Short Circuit, Over Current and Over Voltage Protection
Dimensions (LxWxH)
- 125 x 75 x 38mm (4.9 x 3 x 1.5”)
Weight
- 190g (6.7oz)
Technical Description
- EMI Standards: FCC Class B , NE55022 Class B
- Output Current: 2.17A @24VAC
- Output Power: 52W with 4 pair PoE input
- Output Connector: 5.5/2.1mm DC Barrel (14” Cable)
- Load Regulation: 5%
- Line Regulation: 1%
- POE Input: (RJ45) 18-36V Passive PoE (4 pairs)
- Output Voltage: 24VAC
- Isolation Voltage: 1500VDC
- Isolation Resistance: 100M Ohms Minimum
- Ethernet Speed: 10/100/1000MB
- Operating Temperature: -25 to +50°C (-13 to +122°F)
- Operating Humidity (RH): 5% - 90% non condensing
- Storage Temperature: -40 to +85°C (-40 to +185°F)
More Information
MFRPartNum:
POE-SPLT-2424AC-G
Datasheet:
