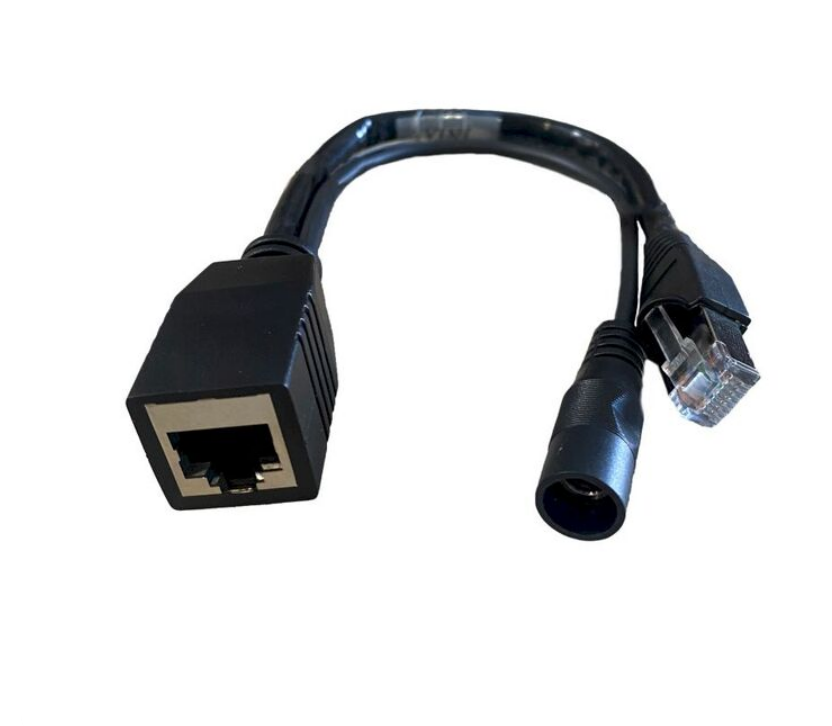

Tycon POE-YINJ-S Shielded CAT5e PoE Injector 60VDC

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon POE-YINJ-S Passive PoE Injector 60VDC Shielded CAT5e Ethernet

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon POE-YINJ-S passive PoE injector inserts power onto both RJ45 female and male connections using pins 4,5(+) and 7,8(-). Features shielded CAT5e cabling, a shrouded DC jack, and a 60VDC maximum rating.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Passive Power over Ethernet injector
• Inserts PoE power onto both RJ45 female and male connections
• Uses Ethernet pins 4,5(+) and 7,8(-) for power
• Shielded CAT5e cable and connectors for added protection against surges and interference
• CAT5-rated RJ45 jack with gold-plated contacts
• Supports 10/100 Mbps Ethernet data connections
• Shrouded 5.5 x 2.1 mm DC connection for improved safety
• Maximum voltage rating of 60VDC
• UL-rated materials
• Meets RoHS requirements

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: POE-YINJ-S
• Product Type: Passive PoE Injector
• Voltage Rating: 60VDC maximum
• RJ45 Jack: Shielded CAT5 rated with gold-plated contacts
• RJ45 Power Pins: 4,5(+) and 7,8(-)
• DC Jack or Plug: 5.5 x 2.1 mm, shrouded
• DC Wire Size: 28 AWG x 4
• CAT5 Wire Size: 24 AWG x 8, shielded
• Cable Length: 165 mm / 6.5 in.
• Total Length: 254 mm / 10 in.
• Weight: 31 g / 1.1 oz.
• Operating Temperature: -40°C to +80°C / -40°F to +176°F
• Materials: UL-rated materials
• Compliance: Meets RoHS requirements
• Manufacturer Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Wireless access points and client devices
• IP phone systems
• Security camera systems
