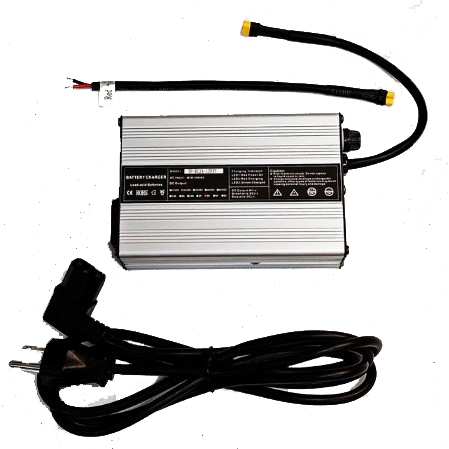

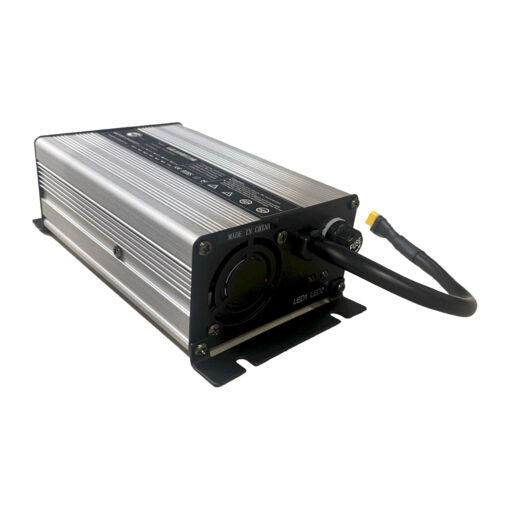

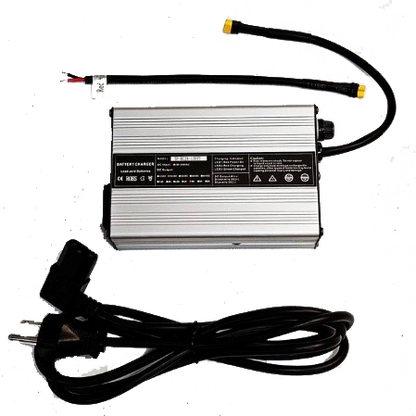

Tycon TP-BC24-120XT 120W Battery Charger GEL/AGM/Lithium XT30
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon TP-BC24-120XT 24V 120W GEL AGM Lithium Battery Charger XT30
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon TP-BC24-120XT provides up to 120W charging power for compatible GEL/AGM sealed lead-acid and lithium batteries with a BMS that accepts lead-acid charging voltages. Features an XT30 quick-disconnect connection.
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Radio Accessories
Power Adapters & Chargers
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Maximum total charging power of 120W
• Compatible with GEL and AGM sealed lead-acid batteries
• Supports lithium batteries equipped with a BMS that accepts lead-acid charging voltages
• XT30 connector and pigtail cable for quick disconnect
• Auto-ranging 90VAC to 264VAC input
• Removable right-angle AC power cord
• North American 3-prong AC plug
• Over-voltage protection
• Over-current protection
• Over-temperature protection
• Over-load protection
• Short-circuit protection
• LED charging status indicator
• Red LED indicates charging
• Green LED indicates battery full
• Wide temperature operation
• CE and FCC certifications
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model / MFR Part Number: TP-BC24-120XT
• Product Type: Battery Charger
• Maximum Total Power: 120W
• Battery Voltage: 29.2V
• Input Voltage: 90VAC to 264VAC
• Compatible Battery Chemistry: GEL / AGM sealed lead-acid
• Lithium Compatibility: Lithium batteries with a BMS that accepts lead-acid charging voltages
• Battery Connector: XT30 with pigtail cable
• AC Connection: Removable right-angle cord with North American 3-prong plug
• Temperature Range: -40°C to +85°C
• Certifications: CE, FCC
• Shipping Weight: 0.69 lb.
• Shipping Dimensions: 14 x 11 x 4 in.
