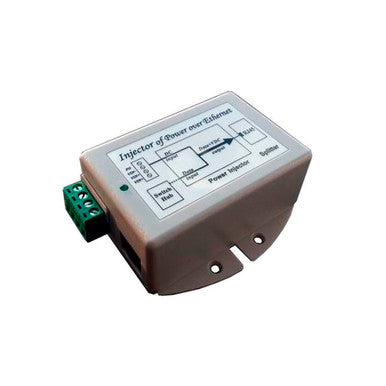

Tycon TP-DCDC-1224 DC-DC Converter 9-36VDC Input 24W PoE Injector

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon TP-DCDC-1224 DC-DC Converter 9-36VDC to 24V 19W PoE Injector

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon TP-DCDC-1224 converts 9–36VDC input to regulated 24VDC passive PoE output at up to 19W. Features an integrated 10/100Mb PoE injector, dual power inputs, shielded RJ45 connections, and electrical protection.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• DC-to-DC converter with integrated 10/100Mb passive PoE injector
• 9VDC to 36VDC input voltage range
• Regulated 24VDC passive PoE output
• Maximum output power of 19W
• Maximum output current of 0.8A
• Dual isolated inputs for connecting two power sources
• Shielded RJ45 data input and shielded RJ45 data/PoE output
• PoE power supplied on Ethernet pins 4,5 (V+) and 7,8 (V-)
• Short-circuit, over-current, reverse-voltage, and over-voltage protection
• Removable screw-type compression wire terminal
• Maximum input wire size of 12 AWG
• DIN rail mountable using Tycon DIN-ClipKit-UNI adapters

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: TP-DCDC-1224
• Product Type: DC-DC Converter with Passive PoE Injector
• DC Input Voltage: 9VDC to 36VDC
• DC Output Voltage: 24VDC passive, ±2.5%
• Maximum Output Current: 0.8A
• Maximum Output Power: 19W
• Data Speed: 10/100Mb
• Data Input / Data-PoE Output Connector: Shielded RJ45
• PoE Pinout: Pins 4,5 (V+); pins 7,8 (V-)
• DC Input Connector: Removable screw-type compression wire terminal
• Maximum Input Wire Size: 12 AWG
• Self-Consumption Power: 1W
• Minimum Efficiency: 75%
• Line Regulation: 1%
• Load Regulation: 5%
• Ripple: 1%
• Noise: 1%
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: CSA 22.2 and TUV EN60950
• Operating Temperature: -30°C to +60°C / -22°F to +140°F
• Operating Humidity: 5% to 90% RH
• Storage Temperature: -40°C to +80°C / -40°F to +176°F
• MTBF: 166,000 hours
• Dimensions: 85 x 76 x 36 mm / 3.4 x 3 x 1.4 in.
• Weight: 134 g / 4.7 oz.
• Manufacturer Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• 12V / 24V battery systems
• Wireless access points and client devices
• IP phone systems
• Security camera systems
