Tycon TP-DCDC-1248GAD Systems 9-36VDC Input 48V 802.3af Gigabit Mode A Output 17W

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon Power TP-DCDC-1248GAD 9-36VDC to 48V 802.3af Gigabit Mode A PoE Converter 17W

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon Power TP-DCDC-1248GAD Gigabit DC-to-DC converter and PoE injector with 9-36VDC input, regulated 48V 802.3af Mode A output, Gigabit Ethernet support, dual power inputs, and up to 17W output.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Cable

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• 9-36VDC input voltage range
• 48V IEEE 802.3af compliant Mode A PoE output
• Maximum output power of 17W
• Integrated 10/100/1000Mb Gigabit PoE inserter
• Dual isolated inputs for connection of two power sources
• Supports primary and backup power source configurations

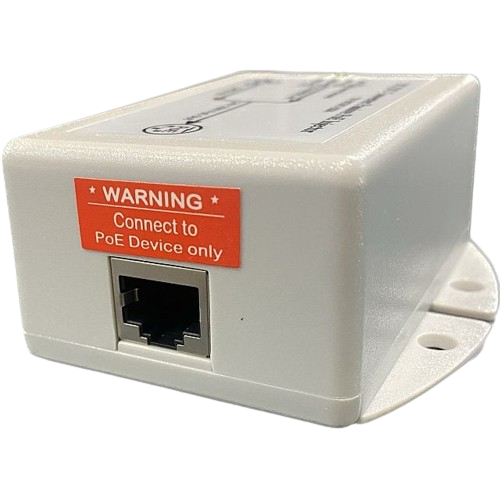

• Shielded RJ45 Gigabit data input and shielded RJ45 data/PoE output
• Mode A power supplied on Ethernet pins 1,2 (+V) and 3,6 (-V)
• Low self-consumption power
• Short-circuit, over-current, reverse-voltage, over-voltage, surge, and overload protection
• Regulated and protected output
• Designed for high-temperature operation
• Compact enclosure

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model: TP-DCDC-1248GAD
• Product Type: Networking Cable
• Manufacturer: Tycon Power
• DC Input Voltage: 9-36VDC

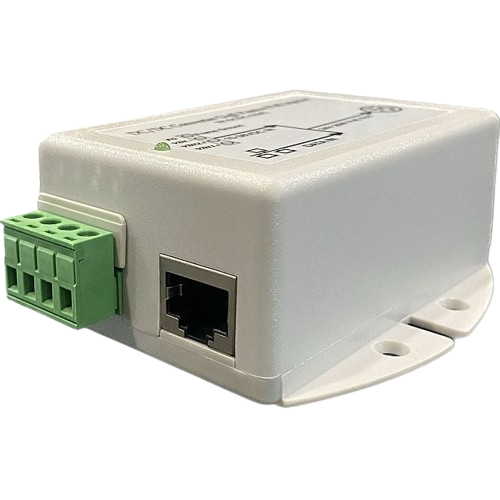

• DC Input Connector: Removable screw-type compression wire terminal, 12 AWG maximum
• DC Output Voltage: 48V, 802.3af
• Output Current: 0.35A maximum
• Output Power: 17W maximum
• Data Input Connector: Shielded RJ45
• Data/PoE Output Connector: Shielded RJ45
• Ethernet: 10/100/1000Mb
• PoE Mode: Mode A
• Self-Consumption Power: 1W
• Minimum Efficiency: 75%
• Line Regulation: 1%
• Load Regulation: 5%
• Ripple: 1%
• Noise: 1%
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: CSA 22.2 and TUV EN60950
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Operating Humidity: 5% to 90%
• Storage Temperature: -40°C to +80°C (-40°F to +176°F)
• MTBF: 166,000 hours
• Dimensions: 85 x 76 x 36 mm (3.4 x 3 x 1.4 in)
• Weight: 134 g (4.7 oz)
• Manufacturer Warranty: 3 years
• Specifications are based on the manufacturer TP-DCDC-1248GAD , Revision 1 dated March 22, 2022.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• 12V and 24V battery systems
• Vehicle applications
• Wireless access points and client devices
• IP phones
• Security camera systems
• PoE lighting applications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
