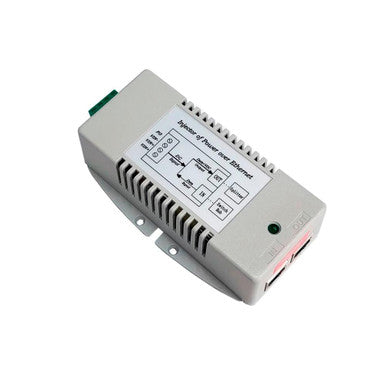

Tycon TP-DCDC-4856G-VHP 70W Passive PoE Injector 56VDC 8-Wire
Product identifier
SKU
TP-DCDC-4856G-VHP
$161.38
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS
The TP-DCDC-4856G-VHP is a very high power DC to DC converter / passive POE inserter designed for Ubiquiti airFiber antennas and also various outdoor PTZ security cameras. The DCDC converter supplies 70W passive POE power on all 8 Ethernet wires.
They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
Features
- Remote power or backup power for Ubiquiti airFiber antennas
- Input Voltage +/- 36-72VDC; Output 56VDC Passive POE
- Isolated DC input
- Integrated POE Inserter
- High Power 70W
- Short Circuit, Over Current and Over Voltage Protection
- Industrial Temperature Operation
- Removable Wire Terminal Input for up to 12AWG wires
- I.T.E. Power Supply, UL Listed
Applications
- 24VDC Remote Power Systems
- 48VDC or -48VDC Remote Power Systems
- Ubiquiti airFiber™ Antennas
- High PoE Compatible Security Cameras
Dimensions:
- 125 x 75 x 38mm (4.9 x 3 x 1.5in)
Weight:
- 255g (9oz)
Technical Description
- Input Voltage +/-: 36VDC to 72VDC
- DC Input Connector: Removeable Screw Type Compression Wire Terminal (12 AWG Max)
- POE Specification: Passive ( 8 Wire , 4 Pair )
- Output Voltage (+/-2.5%): 56VDC
- Data in & Data/POE Output Connector: RJ45 (Shielded)
- Output Current (max): 1.25A Total
- Output Power (max): 70W Total Note: Output power up to 70W at 40C. Derate by 1W for every 1 Deg C above 40C ambient. Example: 60W at 50C
- Self-Consumption: Power 2W
- Efficiency (min): 80%
- Line Regulation, Ripple, Noise: 1%
- Load Regulation: 5%
- EMC Standards: FCC Class B EN55022 Class B
- Safety Standards: CSA 22.2 &TUV EN60950
- Operating Temperature: -40 to +70°C (-40 to +158°F)
- Operating Humidity (RH): 5% - 90%
- MTBF (Mean Time Between Failures): 55,489 Hours
- Storage Temperature: -40 to +80°C (-40 to +176°F)
