Tycon TP-DCDC-A2456GD-BT 802.3bt 90W PoE Injector 5Gbps 22-35VAC/VDC
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS

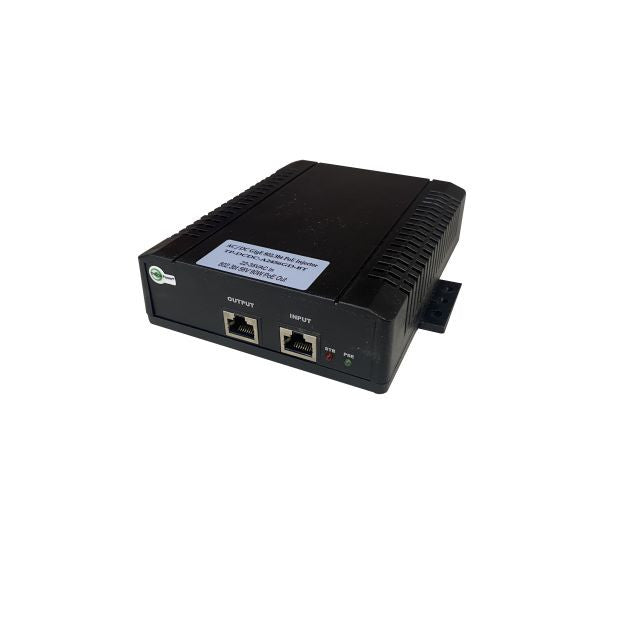

The TP-DCDC-A2456GD-BT is a 5Gbps high power DCDC converter and PoE injector that accepts 22-35VAC or VDC input. It features a wide operating temperature range (-40 to +70C) and a high power 802.3bt 90W output.

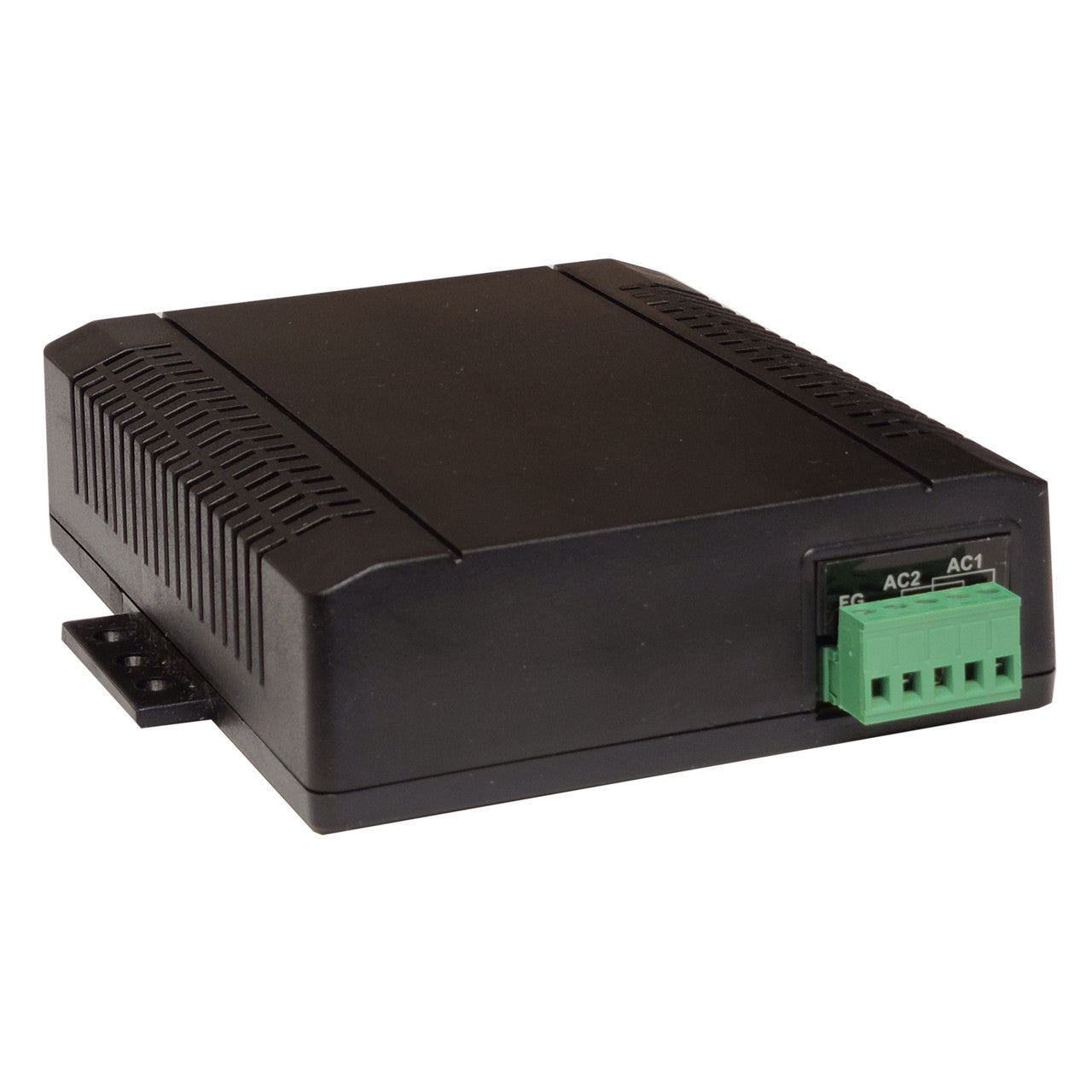

The unit has dual AC/DC inputs for maximum flexibility. The green DC connector accepts wires up to 12AWG. The “FG” input is used to provide chassis or earth ground.
The device is fan-less and uses natural air flow for cooling. It comes with DIN rail adapters to provide mounting to a standard DIN Rail commonly used in industrial installations. It can also be wall mounted.
Features
- 22-35VAC/VDC Input, 802.3bt 90W Output
- Industrial Temperature Range: -40 to +70C
- Up to 5Gigabit Data Passthru with Surge Protection
- DIN Rail Mounting (Adapters Included)
Applications
- 802.3bt PoE from Legacy 24VAC Power Sources
- 24VDC Remote Power Systems
- IEEE802.3bt Industry Standard Device Power from Batteries
- PoE Lighting Applications
Dimensions (LxWxH)
- 140 x 150 x 40 mm (5.5” x 5.9” x 1.6”)
Weight
- 0.66kg (1.45lb)
Technical Description
- Input Voltage: 22 to 35VAC 50/60hz or 22 to 35VDC
- Input Current:
- 4.42A @ 24VAC IN (Full Load)
- 4.40A @ 24VDC IN (Full Load)
- Output Voltage: IEEE802.3bt 56VDC ; Load Reg = 5%, Line Reg = 1%
- Output Current / Max Watts: 1.6A / 90W
- Ripple & Noise: 1%
- Efficiency: >80% 22-35V Input
- Protections: Short Circuit, Reverse Voltage
- Over Current Protection: 802.3bt Limits ; Auto Recover
- Low Voltage Detect (LVD): Device with stop drawing all current when input voltage drops below 33.2VDC
- Misc Protections: Short Circuit, Reverse Voltage
- Data PassThrough: 10/100/1000/5000Mbps ; Gigabit
- Data Protection:
- Pin to Pin (1-2, 3-6, 4-5, 7-8)
- Clamp Voltage: 3.3V
- ESD, IEC61000-4-2: +/- 30KV contact and air
- EFT, IEC61000-4-4: 40A (5/50us)
- Lightning, IEC61000-4-5: 15A (8/20us)
- MTBF: 135,326 Hrs
- Safety Standards: TUV EN62368-1
- EMC Standards: FCC Class B ; EN55032 Class B
- Connections: Removable Wire Terminal
- Wire Size: 12AWG Max
- LED Function:
- Green Power LED = Valid 802.3bt Detection
- Red STB LED = Input Power OK
- Mounting: Wall Mount or DIN Rail (Adapters Included)
- Operating Temperature: -40C to +70C (-40F to 158F)
- Humidity (RH): 5% - 90% Non-Condensing
