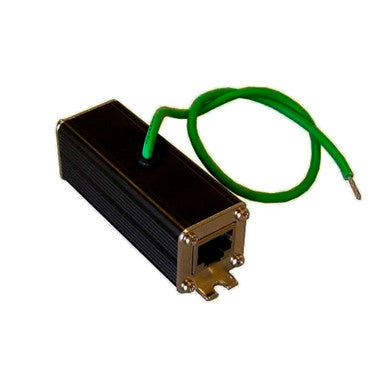

Tycon TP-ESP-1000-POE Gigabit PoE Surge Protector 57V 8-Pin CAT5/6
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon TP-ESP-1000-POE Gigabit PoE Surge Protector 57V CAT5/6 8-Pin
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon TP-ESP-1000-POE is a Gigabit Ethernet surge protector for PoE systems up to 57V. It protects all 8 CAT5/6 conductors, features shielded RJ45 jacks and a metal housing, and provides 5kA surge discharge capability.
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Supports 10/100/1000Mbps Gigabit Ethernet
• Compatible with PoE systems up to 57V
• CAT5 and CAT6 compatible
• Surge protection provided on all 8 Ethernet conductors
• 70V PoE clamping voltage across all 8 pins
• Maximum surge discharge current of 5kA
• 100A peak pulse current
• Differential and common mode protection
• Response time of less than 5ns
• Shielded RJ45 jacks
• Full metal housing for improved EMI suppression
• Integral mounting feet
• Separate 14 AWG ground wire
• Designed for indoor use or outdoor installation inside a weatherproof enclosure
• Complies with IEC 61643-21
• UL 497B listed
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model / MFR Part Number: TP-ESP-1000-POE
• Product Type: Gigabit Ethernet / PoE Surge Protector
• Operating Voltage: Data 5V; PoE 48V
• Maximum Compatible PoE System Voltage: 57V
• Clamping Voltage: 70V PoE, All 8 Pins
• Maximum Surge Discharge Current: 5kA, 8/20µs
• Peak Pulse Current: 100A, 10/1000µs
• Protection Mode: Differential and Common Mode
• Insulation Resistance: Greater Than 1000 MOhm
• Shunt Capacitance: Less Than 25pF
• Data Rate: 10/100/1000Mbps
• Response Time: Less Than 5ns
• Connectors: Shielded RJ45 Jacks
• Ground Wire: 14 AWG, 10 in. / 26 cm
• IEC Standards: IEC 61000-4-5, IEC 61643-21
• UL Standard: UL 497B
• IEEE / ANSI Standard: C62.45
• Operating Temperature: -40°C to +85°C / -40°F to +185°F
• Operating Humidity: 0% to 95% RH, Non-Condensing
• Storage Temperature: -40°C to +125°C / -40°F to +257°F
• Dimensions: 102 x 25 x 25 mm / 4 x 1 x 1 in.
• Weight: 88 g / 3.1 oz.
• MTBF: 819,049 Hours
• Manufacturer Warranty: 3 Years
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Wireless access points and client devices
• IP phone systems
• Security camera systems
• Industrial control systems
• Protection of compatible Ethernet equipment from surges caused by lightning and grid power fluctuations
