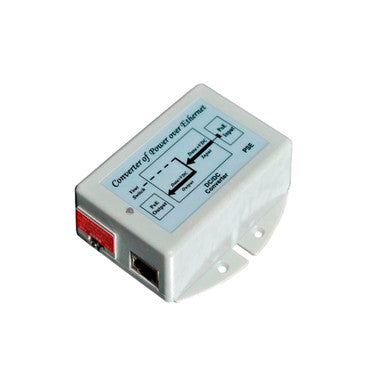

Tycon TP-POE-2456GD 22-36V Passive PoE IN. 56V 35W 802.3at Gigabit PoE Injector

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon TP-POE-2456GD 22-36V Passive PoE to 56V 35W 802.3at Gigabit Converter

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon TP-POE-2456GD converts 22–36VDC passive PoE input to 56VDC IEEE 802.3af/at PoE output at up to 35W. Supports Gigabit Ethernet and CAT5/6 cable distances up to 100m.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Converts 22–36VDC passive PoE input to 56VDC IEEE 802.3af/at PoE output
• Maximum PoE output power of 35W
• Supports 10/100/1000Mbps Gigabit Ethernet
• Enables compatible IEEE 802.3af/at equipment to operate from compatible passive PoE sources
• CAT5/6 connections for data and power
• Supports Ethernet cable distances up to 100m / 328 ft
• Output current of 0.625A at 56VDC
• PoE power on Ethernet pins 4,5 (V+) and 7,8 (V-)
• Short-circuit protection
• Over-current protection
• Overload protection
• Over-voltage protection
• 58V output over-voltage protection
• Red LED indicates passive PoE input power is present
• Green LED indicates successful 802.3at handshake and output power is on
• Compatible passive PoE sources include Tycon TP-SW5G-NC and TP-SW8-NC

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: TP-POE-2456GD
• Product Type: Gigabit Passive PoE to IEEE 802.3af/at PoE Converter
• Passive PoE Input Voltage: 22VDC to 36VDC
• PoE Output Voltage: 56VDC
• PoE Output Compatibility: IEEE 802.3af / 802.3at
• Output Current: 0.625A at 56VDC
• Maximum Output Power: 35W
• Output Over-Voltage Protection: 58V
• Network Speed: 10/100/1000Mbps
• Maximum Ethernet Distance: 100m / 328 ft
• PoE Pinout: Pins 4,5 (V+); pins 7,8 (V-)
• Load Regulation: 5%
• Ripple / Noise: 2%
• Input / Output Connections: RJ45 data and power
• LED Function, Red: Input power on
• LED Function, Green: Successful 802.3at handshake; output power on
• Operating Temperature: -40°C to +70°C / -40°F to +158°F
• Operating Humidity: 5% to 90% RH
• Storage Temperature: -40°C to +80°C / -40°F to +176°F
• Dimensions: 85 x 76 x 36 mm / 3.4 x 3 x 1.4 in.
• Weight: 150 g / 5.3 oz.
• Manufacturer Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Wireless access points and client devices
• IP phone systems
• Security camera systems
• PoE lighting applications
• Operating compatible IEEE 802.3af/at devices from compatible passive PoE sources
