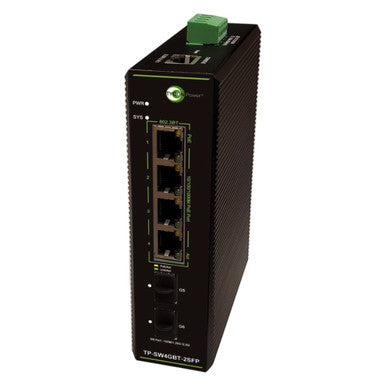

Tycon TP-SW4GBT-2SFP 4-Port Gigabit PoE++ Managed Switch 2x 2.5G SFP 360W

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon TP-SW4GBT-2SFP is an industrial Layer 2+ managed switch with four Gigabit 802.3af/at/bt PoE++ ports, two 2.5G SFP fiber ports, 360W maximum total PoE power, and 48–57VDC dual power input.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Routers and Switches

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Industrial Layer 2+ managed Ethernet switch
• Four 10/100/1000Mbps Gigabit PoE++ Ethernet ports
• IEEE 802.3af, 802.3at, and 802.3bt PoE support
• Up to 90W PoE++ power per Ethernet port
• Maximum total PoE power of 360W across all ports
• Two SFP/LC fiber ports supporting up to 2.5Gbps
• Fiber transceiver compatibility includes 155M, 1.25G, and 2.5G multimode or single-mode
• Fiber optical range up to 120km with appropriate fiber transceiver
• One console port
• Management via web interface, CLI, TELNET, SSH, or SNMP
• Supports up to 4K VLANs simultaneously
• Supports port-based and IEEE 802.1Q tag-based VLANs
• Supports STP, RSTP, and MSTP
• ERPS Ethernet Ring Protection Switching support
• Static/manual link aggregation and LACP
• IGMP v1/v2/v3 snooping with support for 256 multicast groups
• Layer 3 functions include virtual VLAN interface, ARP, and static routing
• Access Control List support
• Quality of Service management
• Port enable/disable, speed, duplex, MTU, flow control, mirroring, isolation, and rate controls
• 9.6K Jumbo Frame support
• Green Ethernet energy-saving support
• Dual 48–57VDC power inputs
• Surge-protected voltage and Ethernet inputs
• Shielded RJ45 and SFP/LC connections grounded to the case
• Conformal-coated electronics for moisture protection
• Integrated DIN rail mount and wall mounts
• Metal enclosure
• IP40 environmental protection
• -40°C to +85°C operating temperature range
• CE, FCC, and RoHS certifications

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model / MFR Part Number: TP-SW4GBT-2SFP
• Product Type: Industrial Managed Gigabit PoE++ Switch
• Ethernet Ports: 4
• Ethernet Speed: 10/100/1000Mbps Auto-Negotiation
• PoE Standards: IEEE 802.3af / 802.3at / 802.3bt
• Maximum PoE Power Per Port: 90W
• Maximum Total PoE Power: 360W
• Fiber Ports: 2 SFP/LC
• Maximum Fiber Speed: 2.5Gbps
• Fiber Transceiver Compatibility: 155M / 1.25G / 2.5G, Multimode or Single-Mode
• Maximum Fiber Optical Range: Up to 120km
• Console Ports: 1
• Connections: Shielded RJ45 and Shielded SFP/LC, Grounded to Case
• Power Input: 48–57VDC
• Power Inputs: Dual Wire Terminal
• Maximum Power Input Wire Size: 12 AWG
• Self-Consumption: Less Than 5W Typical
• PoE Protection: Over-Voltage, Over-Current, Short Circuit
• 802.3af/at PoE Pinout: Pins 1/2 V-; Pins 3/6 V+
• 802.3bt PoE Pinout: Pins 1/2 and 7/8 V-; Pins 3/6 and 4/5 V+
• Surge Protection: 6kV Normal Mode; 2kV Differential Mode
• ESD Protection: 15kV Air; 8kV Touch
• Management Methods: WEB, CLI, TELNET, SSH, SNMP
• VLAN Capacity: Up to 4K Simultaneous VLANs
• Spanning Tree: IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP
• Ring Network Protocol: ERPS
• Link Aggregation: Static/Manual Aggregation, LACP
• IGMP Snooping: v1/v2/v3, Up to 256 Multicast Groups
• Switching Capacity: 18Gbps
• Packet Forwarding Rate: 13.39Mpps
• Forwarding Mode: Store and Forward
• Package Cache: 4M
• RAM / Flash: 128MB / 16MB
• MAC Address Table: 8K, Self-Learning
• Jumbo Frame Support: 9.6K
• Environmental Protection: IP40
• Operating Temperature: -40°C to +85°C / -40°F to +185°F
• Operating Humidity: 5% to 95% RH, Non-Condensing
• Storage Temperature: -40°C to +85°C / -40°F to +185°F
• MTBF: 100,000 Hours
• Certifications: CE, FCC, RoHS
• Dimensions: 155 x 117 x 38 mm / 6.1 x 4.6 x 1.5 in.
• Weight: 0.6 kg / 1.25 lb.

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Outdoor network installations
• Cameras and wireless radios
• Factory networks
• PoE lighting applications
