Tycon Systems 5 Port Unmanaged GigE PoE Network Switch 44-58V

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

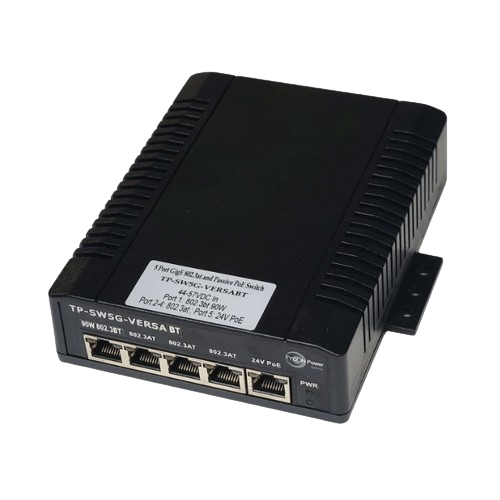

Tycon TP-SW5G-VERSABT 5-Port Unmanaged Gigabit 802.3bt/at/24V PoE Switch 44-57VDC

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon TP-SW5G-VERSABT is a 5-port Gigabit PoE switch providing one 90W 802.3bt port, three 30W 802.3at ports, and one 12W 24V passive PoE port from a 44-57VDC input.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Routers and Switches

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Five-port Gigabit Layer 2 Ethernet PoE switch
• Port 1 provides 90W 4-pair IEEE 802.3bt PoE
• Ports 2-4 provide 48V 30W IEEE 802.3at PoE
• Port 5 provides 24V 12W passive PoE
• Supports powering devices with different PoE requirements from a single switch
• 10/100/1000 Mbps Ethernet with auto-negotiation
• Automatic MDI/MDI-X crossover
• Automatic speed and duplex sensing
• Built-in Ethernet surge protection
• Shielded RJ45 connectors grounded to frame ground
• Over-temperature, over-current, and short-circuit PoE protection
• Conformal-coated electronics for moisture protection
• Low self-power consumption
• Wide operating temperature range
• DIN rail adapters included

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model: TP-SW5G-VERSABT
• Switch Type: Layer 2 Gigabit PoE Switch
• Total Ports: 5
• Port 1: 90W 4-pair IEEE 802.3bt PoE
• Port 1 Pinout: Pins 1,2,4,5 V+; pins 3,6,7,8 V-
• Ports 2-4: 48V 30W IEEE 802.3at Mode B
• Port 5: 24V 12W passive PoE
• Port 5 PoE Pinout: Pins 4,5 V+; pins 7,8 V-
• Transmission Speed: 10/100/1000 Mbps auto-negotiation
• Connections: Shielded RJ45, grounded to FG connection

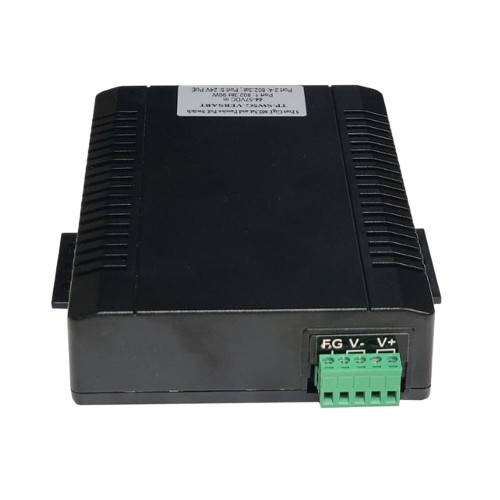

• Power Input: 44-57VDC via wire terminal
• Input Current Requirement: 4A
• PoE Protection: Over-temperature, over-current, and short-circuit
• ESD Protection: IEC61000-4-2, ±15kV air / ±8kV contact
• EFT Protection: IEC61000-4-4, 40A (5/50ns)
• Self Consumption: Less than 3W typical
• Switch Technology: Store and Forward
• Protocol: CSMA/CD
• Flow Control: IEEE 802.3x full-duplex; back pressure half-duplex
• Data Transmission Rate: 1,488,000 / 148,800 / 14,880 pps
• Address Table: 1K MAC, self-learning
• Ethernet Cable Compatibility: Category 5 or higher
• Operating Temperature: -30°C to +70°C (-22°F to 158°F)
• Operating Humidity: 5% to 90% RH, non-condensing
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Dimensions: 159 x 118 x 40mm (6.3 x 4.6 x 1.6 in.)
• Weight: 318g (11 oz.)
• Manufacturer Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Power different PoE devices from a single 48V power supply
• Cameras and wireless radios
• PoE lighting applications
