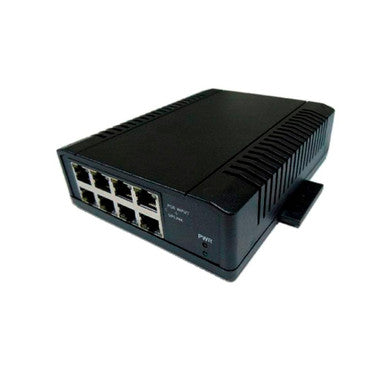

Tycon TP-SW8-NC 8-Port 10/100 Passive PoE Switch 12-57VDC 2A
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS
The TP-SW8-D Power over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power is a fully automatic high speed 8 port Ethernet switch.
The -NC version is a passive PoE model for devices which are not 802.3af/at compliant.
On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via 2 or 4 pair PoE to port 8 (2A max). TP-SW8- D has a 2 channel 802.3at input for 70W max PoE input. Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
There are 2 power inputs for attachment of primary and backup power sources.
Features
- High Power 10/100Mb 8 Port PoE Switch
- Remotely Power Equipment thru CAT5 Cable up to 100m
- Extend Ethernet and PoE up to 200m
- Up to 2A per Port
- Built-In Surge Protection
- Automatic MDI/MDI-X Crossover
- High Temperature Operation
- CE and FCC Certification
- I.T.E. Power Supply, UL Listed
Applications
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- Power multiple devices from 1 data cable
Dimensions
- 159 x 116 x 40mm (6.3 x 4.6 x 1.6in)
Weight
- 0.5kg (1lb)
Technical Description
- Ethernet Standard: IEEE802.3/IEEE802.3u (10 base-T/100base-T)
- POE Standard: (Port 1-8) TP-SW8-D IEEE802.3af/at ; TP-SW8-NC Passive POE 12-57VDC
- Ports: One data/PoE input and seven data/PoE outputs automatic crossover and polarity
- Transmission Speed: 100 Mbps(100base-T),10 Mbps(10base-T) Auto-negotiation
- Switch Technology: Store and Forward
- Protocol: CSMA/CD
- Flow Control: IEEE802.3x(full-duplex), Back Pressure(half-duplex)
- Data Transmission Rate: 148800pps for 100base-T, 14880pps for 10base-T
- Address Table: 2K MAC, self-learning
- Connections: Shielded RJ45
- POE Port: Port 1-7, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)
- Maximum POE Power: Port 1-8, 2A Per Port – NC Version ; Port 1-7(35W), 8 (70W) – 802.3af/at Version ; Wire Terminal or DIN Connector Input Max 10A
- POE Protection: Over Temperature, Over Current, Over/Under Voltage
- Data Surge Protection: IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) ; IEC61000-4-4 (EFT) 40A (5/50ns) ; IEC61000-4-5 (Lightning) 20A (8/20μs)
- DC Power Input: 46V to 57V, 12V to 57V(-NC Version) ; Dual DC Inputs, Reverse Polarity Protected.
- Self Consumption: <1.5 Watts
- Operating Temperature: -40 to +85°C (-40 to 185°F)
- Operating Humidity (RH): 5% - 90% (non condensing)
- MTBF (Mean Time Between Failure): 70,281 Hours
- Storage Temperature: -55 to +105°C (-67 to +221°F)
